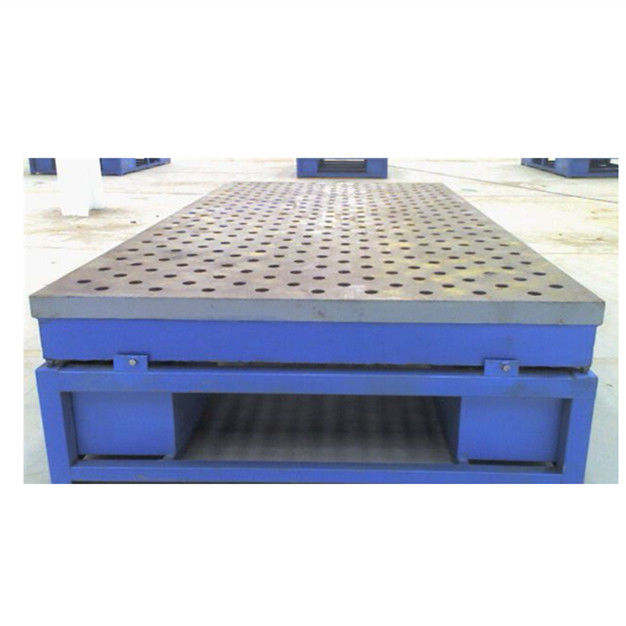

Welding Use Cast Iron Surface Plate With Hole 3000 X 2000 MM HT200-300

precision surface plate,surface table calibration

surface table calibration

محل منبع:

چین

نام تجاری:

OEM

گواهی:

CO, FORM-E

با ما تماس بگیرید

درخواست قیمت

Welding Use Cast Iron Surface Plate With Hole 3000 X 2000 MM HT200-300

جزئیات محصول

مواد:

HT250

نام:

صفحه پایه اسلات T چدنی 3000 x 6000 میلی متر با کانال آب

تایپ کنید:

نوع توخالی

صافی:

1 درجه

اندازه:

همانطور که مشتریان درخواست می کنند

پایان سطح:

قراضه دست

برجسته کردن:

precision surface plate,surface table calibration

surface table calibration

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

جزئیات بسته بندی

چوبی

زمان تحویل

20 روز

شرایط پرداخت

Western Union ، T/T

قابلیت ارائه

10 در ماه

محصولات مرتبط

Tee Slotted Bed Plates 3.05 X 2.54 Meters High precision Marking Out

بهترین قیمت رو بدست بیار

Durable Cast Iron Cube Box 12''L X 10''W X 9''H T Slotted Stable Performance

بهترین قیمت رو بدست بیار

Rust Proof Surface Plate Calibration 20mm Slots Good Grinding Resistance

بهترین قیمت رو بدست بیار

Grey Iron Surface Plate Calibration 2 Grade Flatness Inspection Surface Plates

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

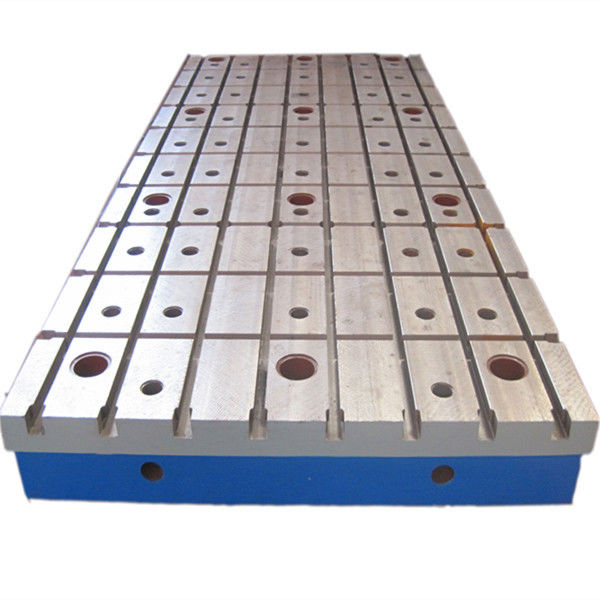

3000 x 6000 mm Cast Iron T Slot Base Plate With Water Channel

Machine t slot cast iron surface bed table plate

The cast iron surface plates are manufactured according to GB4986-85 standard to ensure the high quality. Cast iron inspection surface plate with T-slot:

Material	HT200-300
Standard	GB/T22095-2008
Specification	100x200-3000x8000mm or customized
Surface	flat (accessories are available according to your requirement, like V, T, straight-shaped slots and tapped holes, long holes, grid lines, etc)
Hardness of the working surface	HB160-240
Surface treatment	hand-scraped, finish-milling or ground finish
Foundry process	sand casting or centrifugal casting
Molding type	resin sand molding
Painting	primer and face paint
Surface coating	pickling oil and plastic-lined or covered with anticorrosion paint
Surface flatness	Master, Working, Reference
Precision grade	1-3
Working temperature	(20±5)℃
Packaging	wooden box

Notice for use

1: To the best uniform use of the flat plate throughout, to avoid local grinding concave.
2: Keep the plate clean, prevent be wroned by iron scrap, sand ...
3: Put down workpieces on the plate gently, prevent the flat surface be impacted, once the plate surface hit the workpiece or other objects,repair impact and the convex part immediately.
4: Do not do any hammer work on the surface plate .
5: After use, should be clean it. If long time no use should not be coated with anti rust oil to prevent corrosion.

Welding Use Cast Iron Surface Plate With Hole 3000 X 2000 MM HT200-300 0
