Name: Metal Roofing Wall Roof Roll Forming Machine Mega Rib Horizontally Install
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: مگا ریب
Price: 16,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی کاشی سقف >

Metal Roofing Wall Roof Roll Forming Machine Mega Rib Horizontally Install

highway guardrail making machine,guard rail roll forming machine

guard rail roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

مگا ریب

با ما تماس بگیرید

درخواست قیمت

Metal Roofing Wall Roof Roll Forming Machine Mega Rib Horizontally Install

جزئیات محصول

نام محصول:

ایالات متحده آمریکا Mega Rib Panel Metal Roofing Wall and Roof Panel Roof Roll Forming Machine

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

وضعیت:

جدید

ایجاد سرعت:

20 - 30 متر در دقیقه

سیستم کنترل:

PLC

گارانتی:

1 سال

برجسته کردن:

highway guardrail making machine,guard rail roll forming machine

guard rail roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

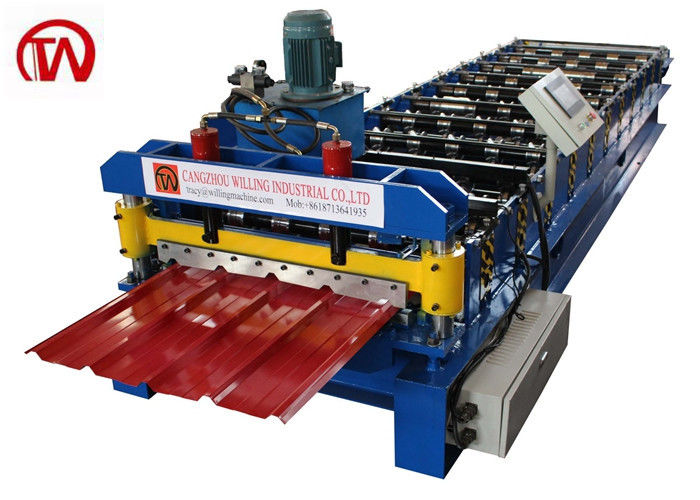

USA Mega Rib Panel Metal Roofing Wall And Roof Panels Roof Roll Forming Machine

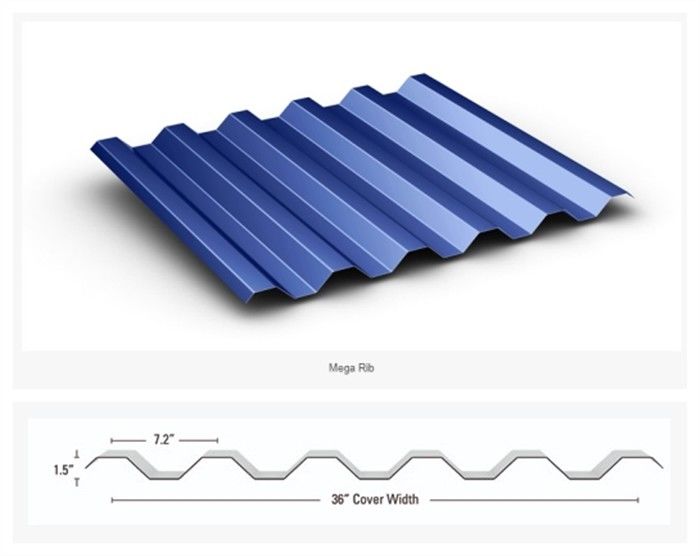

Mega-Rib is a 7.2 exposed fastener panel that provides optimum strength and spanning capabilities. Mega-Rib is a metal roof and wall panel that is equally well suited for industrial and commercial applications. Installed horizontally, Mega-Rib's bold ribs provide a hard to beat architectural statement.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	20-30 GA
3	Working Speed	20-30 m/min ( not including the cutting time)
4	Roller Station	19 Raws
5	Dimension (LWH)	6500 mm1500 mm1500 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	5KW
9	Hydraulic Station Power	4 KW
10	Power Supply	240V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
