Guide Rail Roller Shutter Door Track Roll Forming Machine 0.8-1.0 Mm Automatic

plc track roll forming machine,1.0mm track roll forming machine,1mm shutter door roll forming machine

1.0mm track roll forming machine

1mm shutter door roll forming machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

Guide Rail Roller Shutter Door Track Roll Forming Machine 0.8-1.0 Mm Automatic

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ درب کرکره ای

ولتاژ:

380 ولت 50Hz 3phase

ظرفیت تولید:

8-15 متر در دقیقه

مواد خام:

ورق گالوانیزه

ضخامت:

0.8-1.0 میلی متر

قطر شافت:

50 میلی متر

برش مواد تیغه:

Cr 12 فولاد درجه یک

ماده شفت:

45# درمان فورج فولاد

برجسته کردن:

plc track roll forming machine,1.0mm track roll forming machine,1mm shutter door roll forming machine

1.0mm track roll forming machine

1mm shutter door roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

+8615100375273

sale1@fmsmachine.com

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

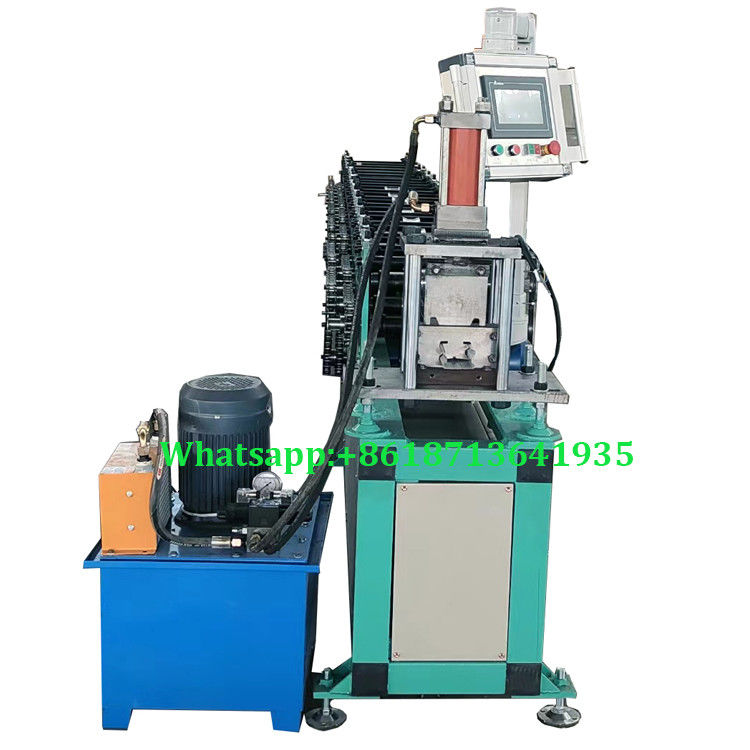

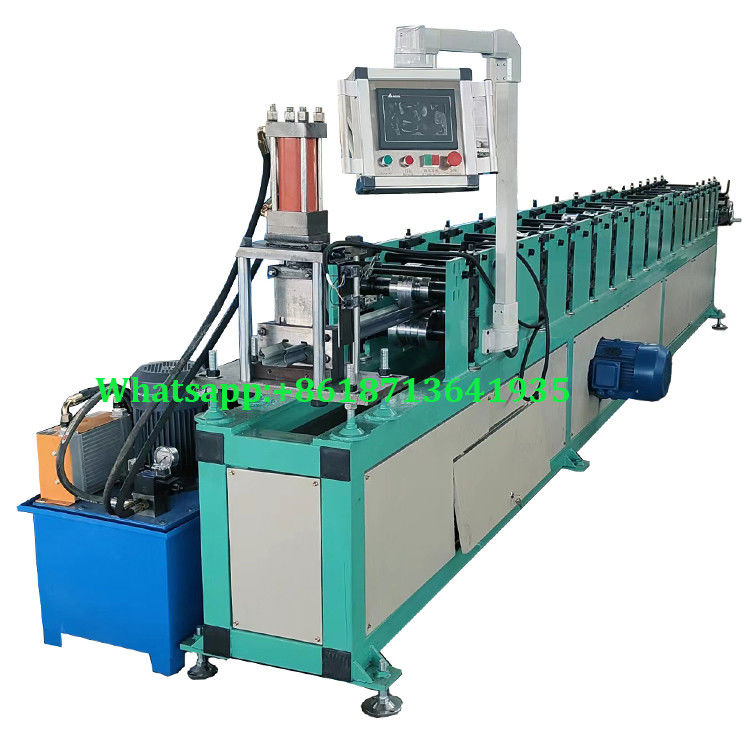

Guide Rail Roller Shutter Door Track Roll Forming Machine 0.8-1.0 Mm Automatic

Shutter door roll forming machine can make various types metal door or window frames, reinforced, fire stop doors, etc by roll forming method. The shutter door roll forming machines a complete product line. After roll forming by our production line, we could make very smooth and beautiful steel door frame without any scratch on surface. This shutter door production line is composed by the following elements: De-coiler, feed & leveling device, main roll forming machine, cutter, run-out table, etc.

Equipment Detailed Parameters:

Roll forming machine name	shutter door roll forming machine
Brand of plc	Delta
Material of rollers	Gcr12 steel
Material of shafts	Soild high grade 45# steel
Diameter of shaft	60mm
Material of blade	Cr12 ateel
Transmission	Chain
Motor voltage	380V 50Hz 3P or customized
Motor kw	5.5kw
Cutter system	Automatic Hydraulic cutter system
Hydraulic pump kw	3 kw
Machine base frame	square pipe welding
Raw material	gi
Thickness of raw material	1-2mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
