Philippines Roll Up Door Machine Automatic Shutter Door Roll Forming Machine

415v steel roll former,roll up door steel roll former,roll up door metal roll former

roll up door steel roll former

roll up door metal roll former

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

قاب

با ما تماس بگیرید

درخواست قیمت

Philippines Roll Up Door Machine Automatic Shutter Door Roll Forming Machine

جزئیات محصول

نام محصول:

دستگاه رول کردن درب فیلیپین دستگاه شکل دهی رول درب اتوماتیک کرکره ای

ولتاژ:

380V/440V/220V/415V

ضخامت مواد:

0.7-1.2 میلی متر

ایجاد سرعت:

6-15 متر در دقیقه

ماده شفت:

45# قطر بیرونی فولاد: 70 میلی متر

ماده غلتکی:

45# فولاد کروم اندود

پمپ روغن هیدرولیک:

4 کیلو وات

برجسته کردن:

415v steel roll former,roll up door steel roll former,roll up door metal roll former

roll up door steel roll former

roll up door metal roll former

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

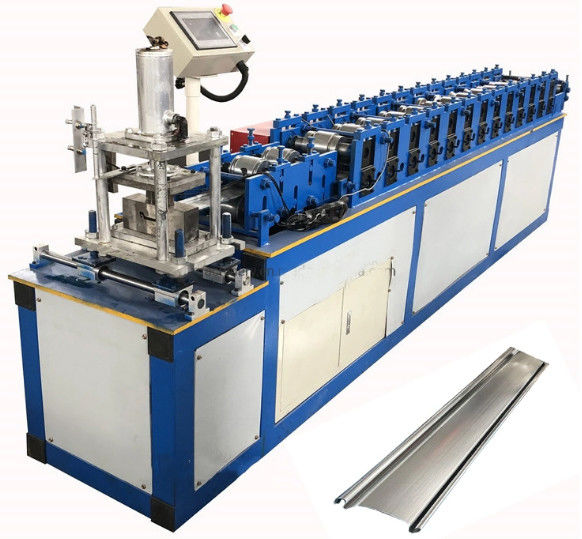

Philippines Roll Up Door Machine Automatic Shutter Door Roll Forming Machine

Philippines Roll Up Door Machine Automatic Shutter Door Roll Forming Machine.Shutter door roll forming machine /roller shutter roll forming machine /shutter door panel making machinery

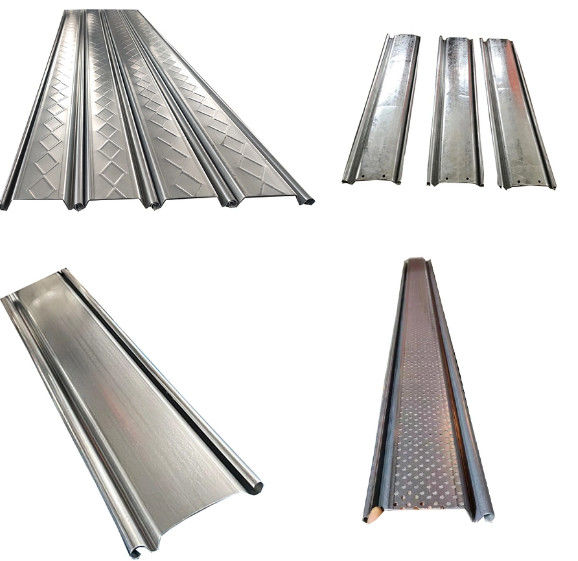

This is shutter door roll forming machine ,it is used for making shutter door panels ,this roll forming machine is widely used in norways ,material thickness is 0.7-1.2mm ,we can customer the designs as your request ,also we can make U guide rail machine ,shutter door bottom rail machine ,don'r hesitate if you have any request.

Specification

No	Item	Specification
Material	Raw material	GI or PPGI
	Material thickness	0.7-1.2MM
Machine body	Roller material	High grade 45# steel with Cr12 quenched
	Shaft material	High grade 45# steel with Cr12 quenched
	Shaft diameter	50mm
	Roller stations	14
	Middle plate thickness	16mm
	Machine size	50.81.2m
	Productivity	8-15m/min
Cutter	Material	GCR12
	Method	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Motor	4KW
	Hydraulic oil pump	3KW
	Voltage	380V,50HZ ,3 phase or customized as your need
Control system	PLC ,invertor	Delta from Taiwan
	Screen	Delta ,touch screen
	Language	Chinese & English or as your request

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
