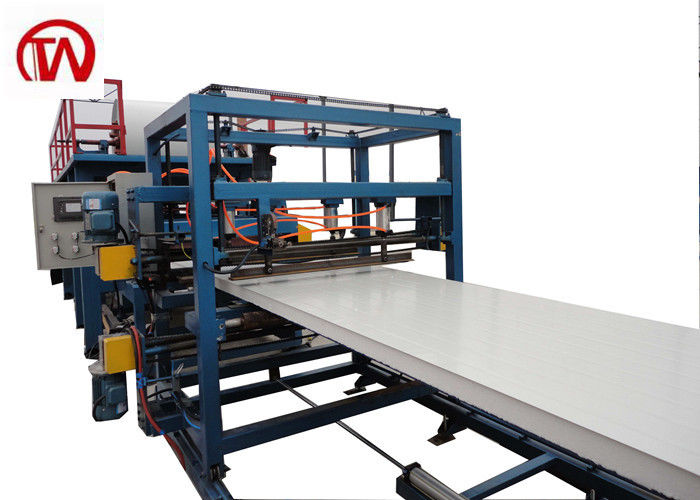

PLC Control 50-150mm Thick EPS Rock wool Sandwich Panel Roll Forming Machine
EPS Rockwool Sandwich Panel production line can one-time composite corrugated type sandwich panels, a full set of assembly line by charging pulling system, molding system, cutting device, sandwich system (embossing, coating, heating, compound, edge, slot, the edge, pneumatic and automatic cutting), the whole process is controlled by a computer, is the production of industrial workshop, warehouse and other room panel and wall panel indispensable equipment.
1. Main paramter:
| No |
|
| 1 |
Dimensions (L*W*H) |
About 35*2.25*2.5m |
| 2 |
Power |
Main motor power: 4kw
Flying saw power: 2*0.75kw
|
| 3 |
Total power |
32kw |
| 4 |
Rows of forming rollers |
14 rows |
| 5 |
Rows of glue rollers |
50 rows |
| 6 |
Weight |
About 20t |
|
7
|
Voltage |
380V／50—60Hz |
| 8 |
Capacity |
4m/min |
| 9 |
Control system |
PLC Control |
2. Specification of Components
Decoiler
Usage: It is used to support the steel coil and uncoil it in a turnable way.
Holding capacity: =<5t
Inner diameter: 500-600mm
Main Roll Forming Machine
Material of rollers:45# steel, Cr plated
Rows:14 row
Width of effective finished plate:950mm
Machine body: 300mm H-shape steel
Machine frame: 16mm steel plate
Diameter of shafts: φ70
Rollers: 45# steel, Cr plated
Motor power: 4kw
Dimension:7000*1550*1500mm
Composite Board Forming Machine
Dimension: 2600*2300*10000mm
Glue rollers: 50 rows φ150
Glue pump motor: 0.37kw*2
Composite motor: 4#4KW Planet cyclonic reducer
Control System
Control system: PLC control, with transducer inside.
Cutting System
Dimension: 3250*2800*2000mm
Fly saw cutting
Motor power: 2*0.75kw
Receiving table
Length : 12m
3. Packing & Delivery
Main machine is nude; the computer control box is packed by plastic.
We deliver the machine within 45 days after receiving the deposit.
