3mm Highway Guardrail Making Machine Cold Rolled Coil Stable Performance

2 Waves 3 Waves 3mm Highway Guardrail Roll Forming Machine Cold Rolled Coil

1.This kind of machine adopts new station to increase the firmness; machine adopts gearbox transmission to ensure working more stable; products used in a variety of guardrail, highway guardrail, fence and other livestock farms.

2.Equipment Detailed Parameters:

4. Components and Technical Specification

A. Hydraulic de-coiler with 2 heads
Coil ID: φ 350 ~ 580mm;

Width of the coil: 150 mm - 580mm;

Hydraulic station power: 4KW;

Max Load: 5 T;

Qty: 1PC;

B. Leveling - Feeding and counting

It used for making the material flat before feeding into the roll forming machine.

Entrance and guide roller: 9 rollers ( Up 4, down 5);

Material Cr12, heat treatment, surface chrome plated;

Motor power: 15KW;

Frame: 400 H steel;

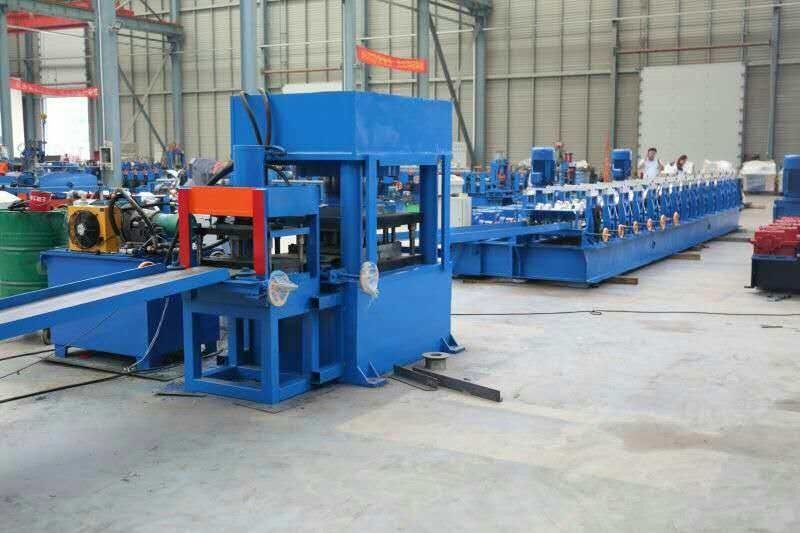

C. Pre punching and cutting device

400T hydraulic punching and cutting device;

Cutter material: Cr12;

Piston hydraulic pump;

Hydraulic station power: 22KW, around 250T pressure;

18 holes punching and cutting together;

1 middle punch hole;

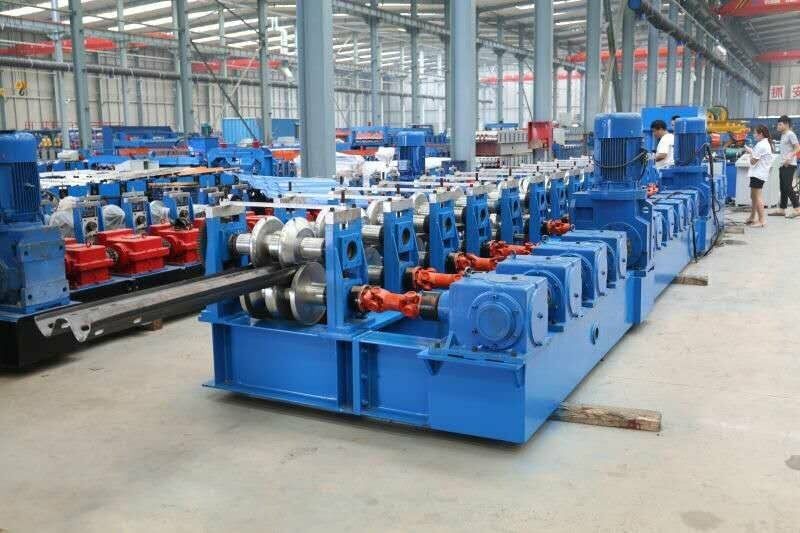

D. Main Roll Forming Machine

Frame: 400 H steel with welded feeding platform;

Roller stations: 15 stations;

Roller material: Cr12, heat treatment with chrome coated;

Diameter of main shaft: ø116mm;

Material of main shaft: #45 steel, heat treatment;

230 type gear box driving;

Main machine power: 22KW*2;

Frequency changer power: 50KW;

Speed: 10-12m/min;

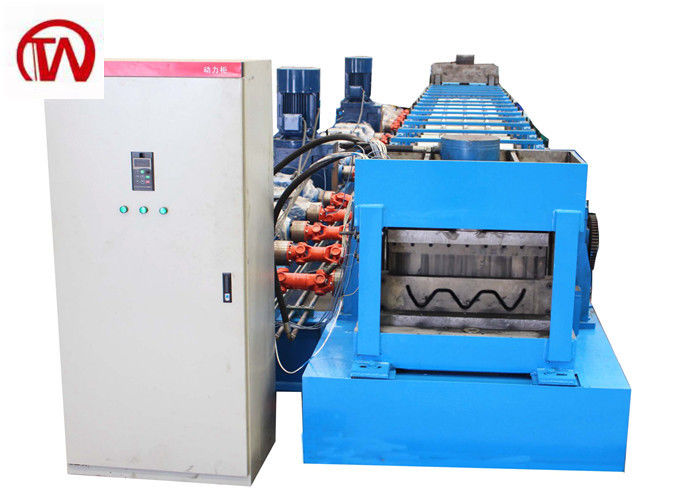

E. Computer Control Cabinet

Control the quantity &punching length& cutting length automatically;

The Machine will be stopped while it is punching and cutting;

Automatic Length measurement and quantity counting (precision 3m+/- 2mm);

Voltage: 380V, 3 Phase 50Hz (or as per buyer`s request);

Size of PLC Control Board: 600mm(L)x1000mm(H)x500mm(W);

PLC brand: DELTA from Taiwan;

Frequency converter brand: Sanjing from China;

Touch Screen brand: Weinview from Taiwan;

Encoder : REP from China.

F. Output Table

Function: Support and output the product;

Structure: stand and supporting roll;

Size: L 3m x W 0.5m;

Qty: 2PCS.
