Name: PPGI / AL Downpipe Roll Forming Machine Fly Saw Cutting Gutter Rolling Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: 76x103
Price: 16,500.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی لوله پایین >

PPGI / AL Downpipe Roll Forming Machine Fly Saw Cutting Gutter Rolling Machine

downpipe roll forming machine,gutter forming machine

gutter forming machine

محل منبع:

چین

نام تجاری:

cangzhou willing

گواهی:

CE,ISO

شماره مدل:

76x103

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

ولتاژ:

3 فاز 380 ولت 50 هرتز یا طبق نیاز مشتری

وضعیت:

جدید

سیستم کنترل:

PLC

نام محصول:

مربع PPGI / GI / AL Downspout Roll Forming Machine Fly Saw Cutting

مواد خام:

ورق PPGI/گالوانیزه

ضخامت:

0.3-0.6 میلی متر

برجسته کردن:

downpipe roll forming machine,gutter forming machine

gutter forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Square PPGI / GI / AL Downspout Roll Forming Machine Fly Saw Cutting

We have marked a distinct and dynamic position in the market by providing a high quality array of Downspout Roll Forming Machine that is fabricated under the guidance of our skilled professionals using latest technology in compliance with international quality standards. The components used for fabricating this machine are procured from our associated vendors. This Downspout Roll Forming Machine is widely used in production industry for making down pipe. Our offered Downspout Roll Forming Machine is praised among our clients for its attributes like high performance, excellent functionality, sturdy construction, low maintenance and reliability.

Equipment Detailed Parameters:

No
1	Suitable Material	GI/PPGI/AL (235Mpa)
2	Rows of rollers	20 rows
3	Appearance size	9200mm500mm1200mm
4	Total power	Main motor 5.5kw Fly saw 2.2kw
5	Thickness of raw material	0.5mm
6	Speed	8-10m/min
7	Diameter of shaft	￠65mm
8	Voltage	380V 50Hz 3phases
9	Big frame	350H steel
10	Middle plate	16mm

Application

The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.

It will make the project more integrate, and help enhancing the image of all project.

Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

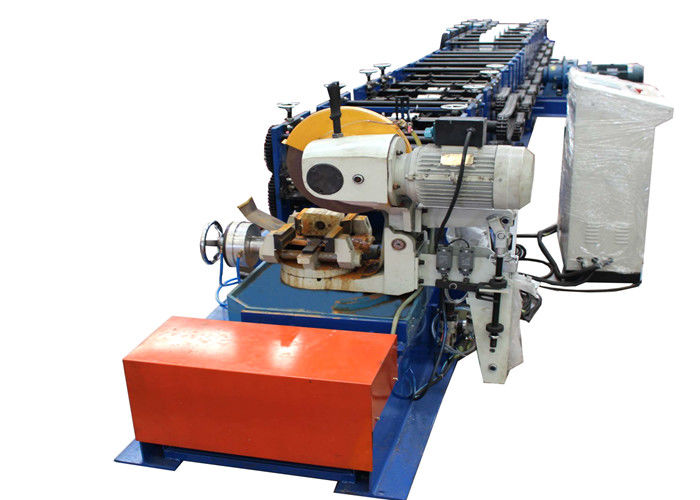

PPGI / AL Downpipe Roll Forming Machine Fly Saw Cutting Gutter Rolling Machine 0

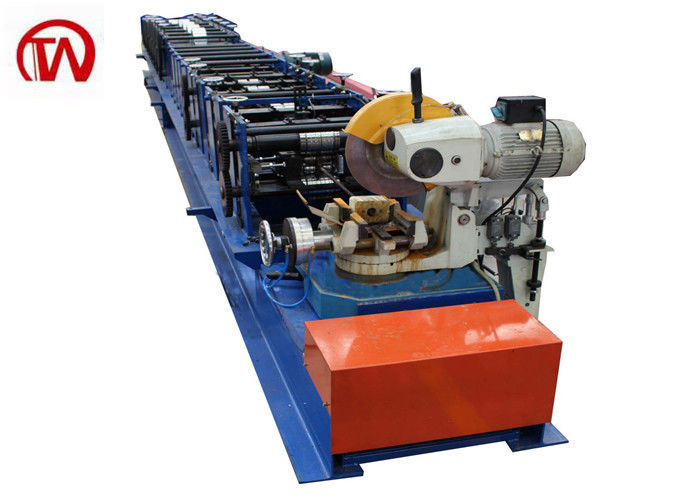

PPGI / AL Downpipe Roll Forming Machine Fly Saw Cutting Gutter Rolling Machine 1
