Name: High Strength Roof Roll Forming Machine Multi - Cor Metal Roof Making Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: چند کور / راه راه
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

High Strength Roof Roll Forming Machine Multi - Cor Metal Roof Making Machine

metal roof panel machine,roofing sheet roll forming machine

roofing sheet roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

چند کور / راه راه

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

مینی پنل دنده فلزی پروفیل کم دنده برای دستگاه رول شکل دهی سقف پانل دیواری

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

سیستم کنترل:

PLC

استفاده کردن:

سقف و دیوار

ابعاد (L*W*H):

7000 میلی متر*1500 میلی متر* 1500

قدرت (W):

4 کیلو وات

برجسته کردن:

metal roof panel machine,roofing sheet roll forming machine

roofing sheet roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

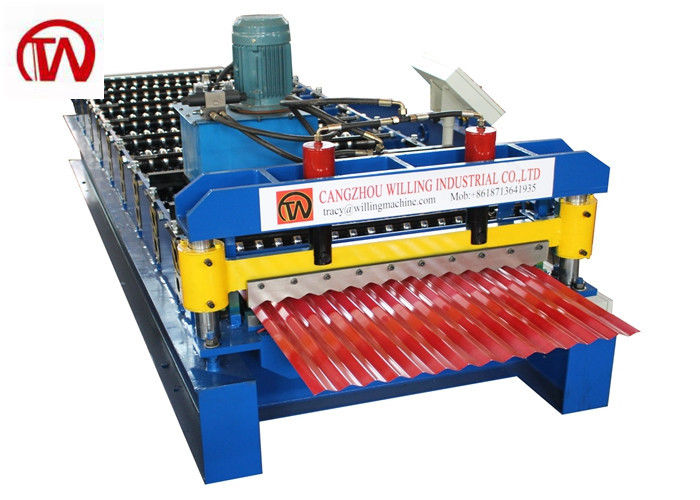

Multi - Cor Panel Metal Wall Profile Corrugated Panel Roof Roll Forming Machine

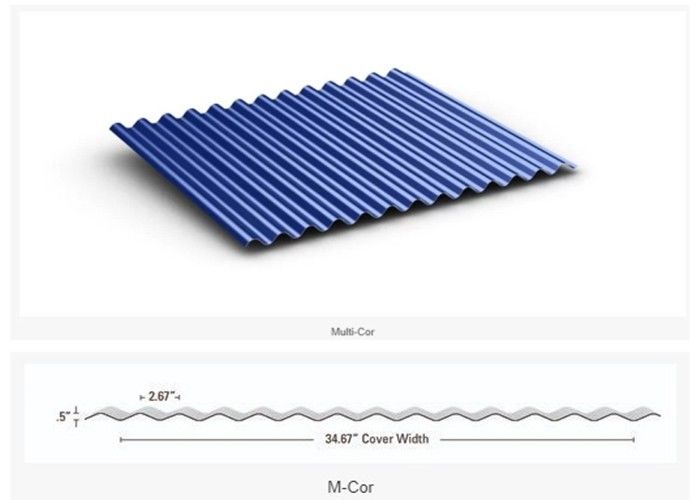

While quickly communicating their high-strength performance attributes, corrugated metal panels are reminiscent of yesteryear and simpler times. Consistent, rounded corrugations make Multi-Cor ideal panels to achieve nostalgic appeal whether installed as a wall, roof or interior accent panel.

For added aesthetic appeal, horizontal installations showcase corrugated design capabilities. Multi-Cor is similar in design, with M-Cor offering a more subtle rib height and configuration. We can design and produce different rib height, different width for the corrugated profiles roll forming machine.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	18-32 GA
3	Working Speed	20-30 m/min ( not including the cutting time)
4	Roller Station	13 Raws
5	Dimension (LWH)	6500 mm1500 mm1500 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	5KW
9	Hydraulic Station Power	4 KW
10	Power Supply	240V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
