Name: Automatic Panel Roll Forming Machine Interchangeable Purlin Roll Former
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دستگاه پرلین CZ
Price: 32,500.00 USD
Availability: InStock

خانه > محصولات > CZ Purlin Roll Forming Machine >

Automatic Panel Roll Forming Machine Interchangeable Purlin Roll Former

c purlin roll forming machine,z purlin roll forming machine

z purlin roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

دستگاه پرلین CZ

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

ماشین رول شکل دهی اتوماتیک سقف فلزی CZ CZ

ابعاد (L*W*H):

7000 میلی متر*1500 میلی متر* 1500

ضخامت مواد:

1 میلی متر - 3 میلی متر

وزن:

9.5T

نوع کاشی:

C و Z Purlin

سیستم کنترل:

PLC با صفحه نمایش لمسی

برجسته کردن:

c purlin roll forming machine,z purlin roll forming machine

z purlin roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

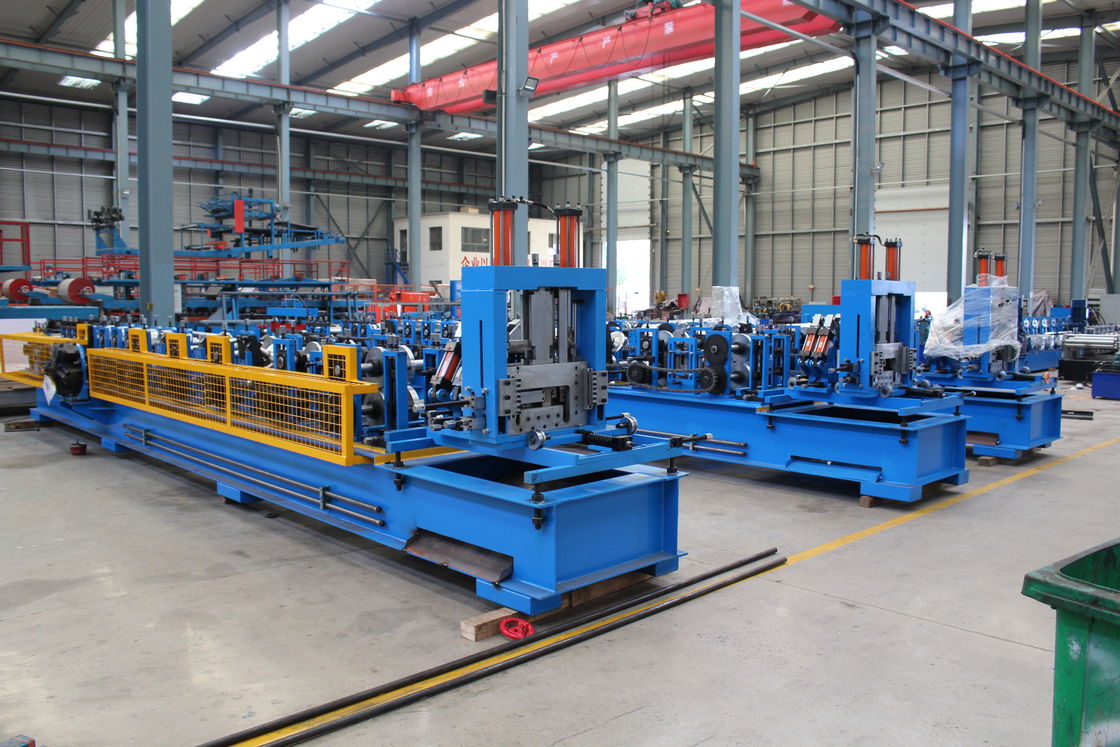

Automatic Interchangeable Metal Roofing Purlin C Z Purlin Roll Forming Machine

This model is Automatic adjusted the different sizes. Both can product c purlin and z purlin.

Specification

No.	Item	Description
1	Coil	Galvanized
	Material Thickness	1 mm- 3 mm
3	Working Speed	20- 25 m/min ( not including the cutting time)
4	Roller Station	15 Raws
5	Dimension (LWH)	9000 mm1000 mm1300 mm
6	Machine Weight	9500 KG
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	30 KW
9	Hydraulic Station Power	30 KW
10	Power Supply	360V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

C Purlin Size

Automatic Panel Roll Forming Machine Interchangeable Purlin Roll Former 0

Z Purlin Size

Automatic Panel Roll Forming Machine Interchangeable Purlin Roll Former 1

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Automatic Panel Roll Forming Machine Interchangeable Purlin Roll Former 2
