Name: High Speed Sandwich Panel Roll Forming Machine Metal Roof Panel Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: پانل ساندویچ پشم راک
Price: 40,500.00 USD
Availability: InStock

خانه > محصولات > دستگاه ساندویچ پانل رول فرمینگ >

High Speed Sandwich Panel Roll Forming Machine Metal Roof Panel Machine

sandwich panel making machine,sandwich panel production machinery

sandwich panel production machinery

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

پانل ساندویچ پشم راک

با ما تماس بگیرید

درخواست قیمت

High Speed Sandwich Panel Roll Forming Machine Metal Roof Panel Machine

جزئیات محصول

نام محصول:

Metal Fire - Proof Materials Construction Wool Sandwich Panel Roll Forming Machine

ولتاژ:

380 ولت 50 هرتز 3 فاز، 380 ولت یا به عنوان سفارشی

سرعت کار:

4 متر در دقیقه

وضعیت:

جدید

ابعاد (L*W*H):

40000 میلی متر * 2250 میلی متر * 2500 میلی متر

مواد:

EPS یا Rockwool

برجسته کردن:

sandwich panel making machine,sandwich panel production machinery

sandwich panel production machinery

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

45 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mode EPS Sandwich Panel Line for 50-300 Thickness Production Customization

بهترین قیمت رو بدست بیار

Eps Rock And Wool Sandwich Panel Production Machine For Customer Requirements

بهترین قیمت رو بدست بیار

32KW Hydraulic Motor Power Sandwich Panel Roll Forming Machine with Thickness 50-300mm

بهترین قیمت رو بدست بیار

High Efficiency Sandwich Panel Roll Forming Machine with Thickness 30-300mm

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Metal Fire - Proof Materials Construction Rock Wool Sandwich Panel Roll Forming Machine

This equipment adopts advanced production technology, which integrates gas, electricity and machinery. It is a special mechanical equipment for processing color steel heat-insulating composite panels. The working speed is stepless speed regulation, which can produce composite panels at one time. Machine, forming machine, compound machine (crimping, glue spraying, heating, bonding, crimping, slotting, trimming, cutting) are necessary equipment for the production of roofs and wall panels in industrial plants, warehouses, etc.

Profile

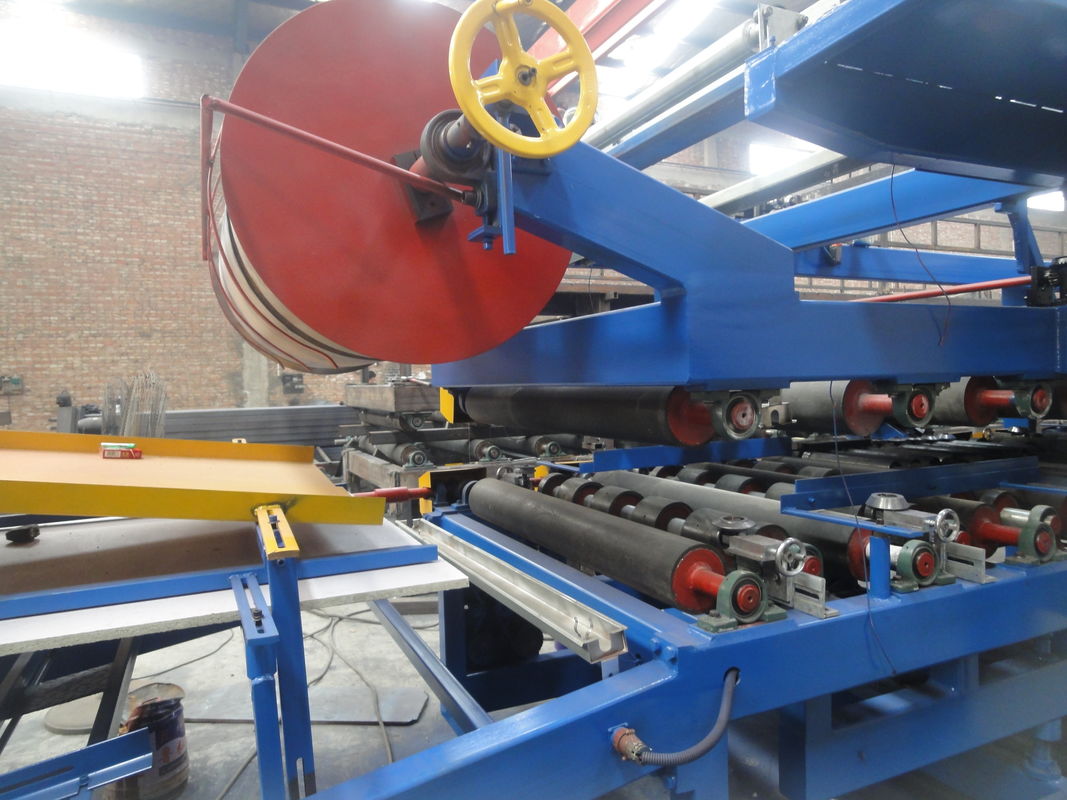

High Speed Sandwich Panel Roll Forming Machine Metal Roof Panel Machine 0

High Speed Sandwich Panel Roll Forming Machine Metal Roof Panel Machine 1

PS: The machine can produce both rock wool composite plate and foam composite board.

Specification

No.	Item	Description
1	Dimensions (LWH)	400000 mm2250 mm2500 m
2	Steel Thickness	0.25 mm- 0.8 mm
3	Sandwich Panel Thickenss	50 mm - 300 mm
4	Roller Station	Up layer: 13 rows. Down layer: 14 rows
5	Working Speed	4 m /min
6	Power	Main motor power: 4kw . Flying saw power: 2*0.75kw
7	Total Power	32 KW
8	Machine Weight	22 tons
9	Steel Coil Width	1000 mm 1200 mm 1250 mm
10	Hydraulic motor power	15 kw
11	Cutting Accuracy	±2 mm

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 45 working days after the down payment is received.

High Speed Sandwich Panel Roll Forming Machine Metal Roof Panel Machine 2
