Name: Omega Channel Low Noise CZ Purlin Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: کانال امگا
Price: 32,500.00 USD
Availability: InStock

خانه > محصولات > CZ Purlin Roll Forming Machine >

Omega Channel Low Noise CZ Purlin Roll Forming Machine

c purlin roll forming machine,z purlin roll forming machine

z purlin roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

کانال امگا

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول با صدای کم کانال امگا CZ

مواد خام:

PPGI، گالوانیزه

سرعت:

15-20 متر در دقیقه

ضخامت مواد:

1 میلی متر - 3 میلی متر

وزن:

8 تن

گارانتی:

1 سال

قدرت:

15 کیلووات

سیستم کنترل:

PLC

برجسته کردن:

c purlin roll forming machine,z purlin roll forming machine

z purlin roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

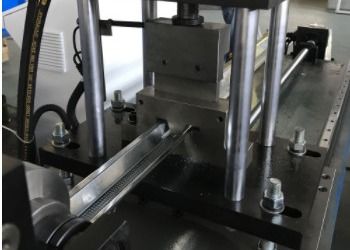

Omega Channel Low Noise CZ Purlin Roll Forming Machine

Omega Channel Low Noise CZ Purlin Roll Forming Machine is used to produce the furring channels, the ceiling batten channel, the roofing batten channel for housees. Furring Channel, Roof Ceiling Batten Roll Forming Machine can work at the speed of 15-20 meters per minute, with servo motor tracking cutting. Machine body is pillar structural, with safety protection cover. There are two encoder to measure the length of the cutting productus, PLC is world famous PLC system.

Specification

No.	Item	Description
1	Coil	Galvanized
	Material Thickness	1 mm- 3 mm
3	Working Speed	15- 20 m/min ( not including the cutting time)
4	Roller Station	14 Raws
5	Dimension	650013001200
6	Machine Weight	8000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Omega Channel, Roof Ceiling Batten Roll Forming Machinecan produce the roofing batten and ceiling batten with the sizes 40mm, 43mm, 61mm and any other sizes you need.

we can help customer to deisgn the machine according to different requirement of the logo punching, embossing, and we can work together in a team for customer to work out the good profile with customer's factory's special charactors.
