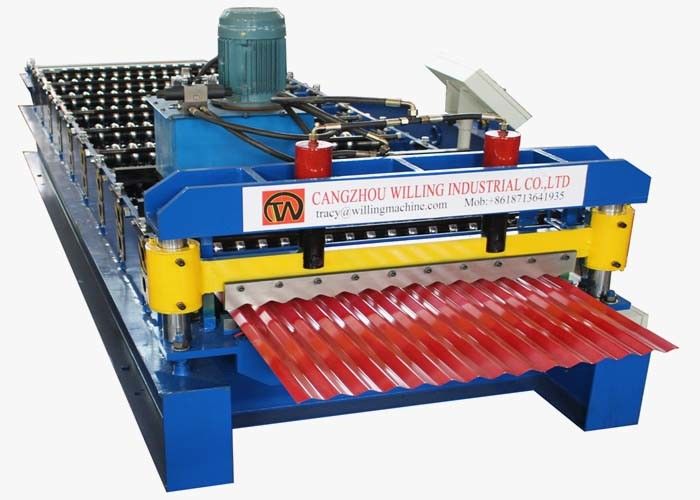

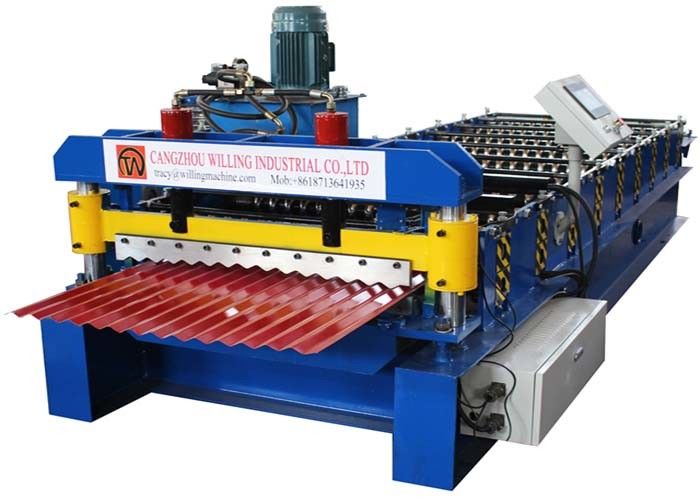

0.3-0.6mm Roof Roll Forming Machine PI/GGPI 9 Rows Corrugated Sheet Making Machine

roofing sheet roll forming machine,roofing sheet manufacturing machine

roofing sheet manufacturing machine

محل منبع:

چین

نام تجاری:

cangzhou willing

گواهی:

CE,ISO

شماره مدل:

850

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

ضخامت:

0.3-0.6 میلی متر

ابعاد (L*W*H):

4780mm*1250mm*1200mm

نام محصول:

دستگاه رول فرمینگ سقف 0.3-0.6 میلی متری موجدار Ondulada PI/GGPI 9 ردیف

ایجاد سرعت:

8-15 متر در دقیقه

عرض مادی:

1000 میلی متر

نوع کاشی:

سقف

برجسته کردن:

roofing sheet roll forming machine,roofing sheet manufacturing machine

roofing sheet manufacturing machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

0.3-0.6mm Corraguted Ondulada PI/GGPI Roof Roll Forming Machine 9 Rows

Application

This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.

Competitive Advantage

1. Pretty appearance

2. Various special model

3. mature foreign trade team

4. professional designing team

5. Lifetime maintenance

Equipment Detailed Parameters:

No.	Item	Description
1	Coil	Width:1000mm
2	Forming speed	8-10 m/min (not including cutting time)
3	Roller Stations	9 stations
4	Material of Roller	45# steel finish machining, plated hard chromium surface
5	Material of Main Shaft	45# steel finishing machining and then slack quench processed
6	Material of Shaft	70 mm 45#steel forged
7	Driven Motor Power	3KW
8	Hydraulic Station Power	3 KW
9	Hydraulic Station Pressure	12.0 Mpa
10	Electrical Control System	DELTA PLC
11	Dimension (LWH)	4780mm1250mm1200mm
12	Material of Cutter	GCr12
13	Driving Mode	single chain 0.6 inch
14	Material Thickness	0.3-0.6mm
15	Power Supply	380V, 60HZ, 3 PHASES
16	Cutting accuracy	±2 mm

1. Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.

2. Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.

3. Q: How does your factory do regarding quality control?
A: Quality is priority.To all willing people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.

4. Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.

5. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
