Industrial Cast Iron Mounting Plate Repeated Usable Long Service Life

جزئیات محصول

مواد:

HT250

نام:

صفحه نصب چدن

تایپ کنید:

نوع توخالی

صافی:

1 درجه

اندازه:

همانطور که مشتریان درخواست می کنند

پایان سطح:

قراضه دست

برجسته کردن:

inspection surface plates,precision surface plate

precision surface plate

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

جزئیات بسته بندی

چوبی

زمان تحویل

20 روز

شرایط پرداخت

Western Union ، T/T

قابلیت ارائه

10 در ماه

محصولات مرتبط

Tee Slotted Bed Plates 3.05 X 2.54 Meters High precision Marking Out

بهترین قیمت رو بدست بیار

Durable Cast Iron Cube Box 12''L X 10''W X 9''H T Slotted Stable Performance

بهترین قیمت رو بدست بیار

Rust Proof Surface Plate Calibration 20mm Slots Good Grinding Resistance

بهترین قیمت رو بدست بیار

Grey Iron Surface Plate Calibration 2 Grade Flatness Inspection Surface Plates

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

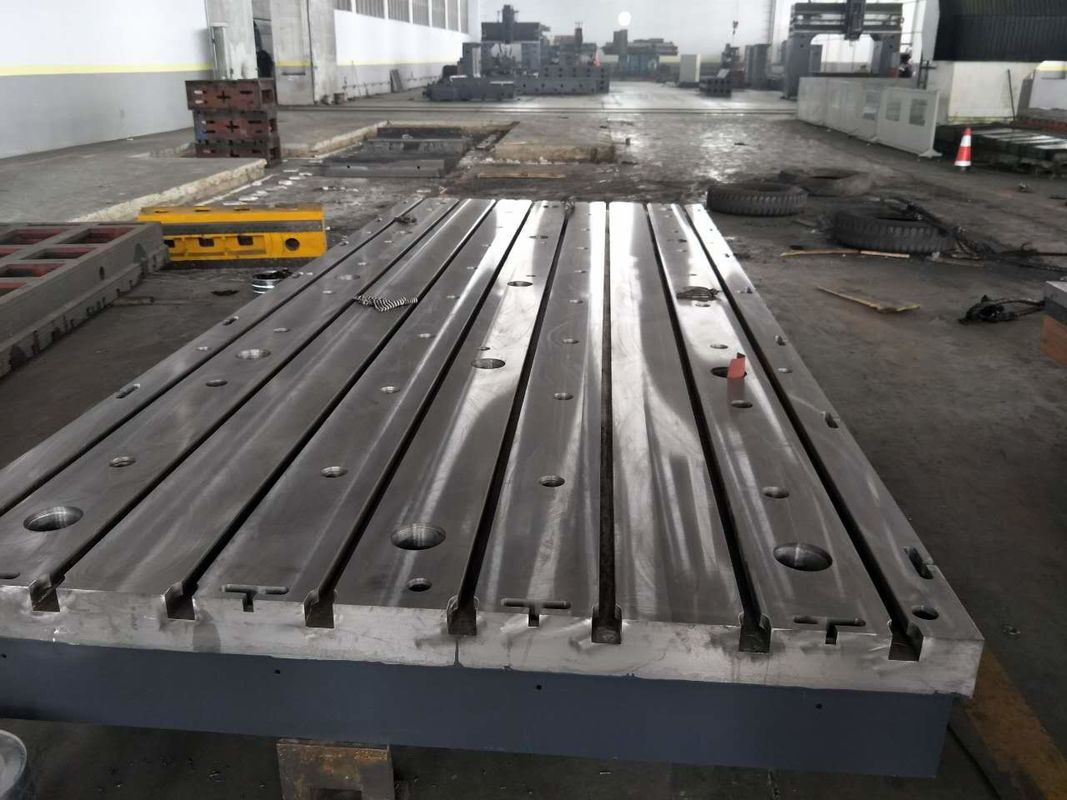

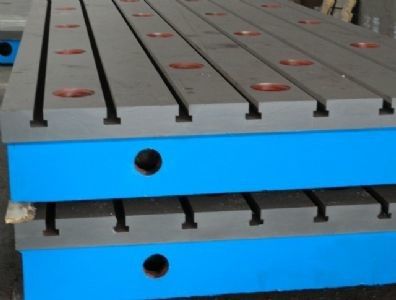

Cast Iron Mounting Plate

Cast iron surface plates are also known as cast iron platform, the cast iron surface plates are manufactured according to GB4986-85 standard to ensure the high quality. The products are always made into ribbed plate or box-type; our company uses the scraping process to improve the precision of the products. Since the products are customized, so the customers can customize the size according to the actual needs. Plurality of cast iron surface plate can be spliced, once abrasion after use, the plate can be re-repair scratch to resume its accuracy.

usage

(1) Suitable for various inspections and benchmark planes for accuracy measurement.
(2) Used widely as the measurement benchmark for machine tool inspection and to inspect thedimension accuracy or running difference with the function of performing precise lineation.
(3) It is an essential measuring tool in machine manufacturing.

specification(Lx W)mm	precision grade
	0	1	2	3
	flatness tolerance (um)
200X200	3.5	7	14	27
300X200	4	8	15	30
300X300	4	8	15	30
300X400	4	8	16	32
400X400	4.5	8.5	17	34
400X500	4.5	9	18	35
400X600	5	10	19	37
500X500	5	10	19	37
500X600	5	10	19	39
500X800	5.5	11	21	43
600X800	5.5	11	22	44
600X900	6	11.5	23	46
1000X750	6	12.5	25	50
1000X1000	7	13.5	27	54
1000X1200	7	14	29	58
1000X1500	8	16	32	63
1000X2000	9	18.5	37	74
1500X2000	10	20	40	80
1500X2500	11	22.5	45	90
1500X3000	13	25	50	100
2000X2000	11	22	44	88
2000X3000	13	27	53	106
2000X4000	16	32	64	127
2000X5000	19	37	75	150
2000X6000		43	86	172
2000X7000		49	97	194
2000X8000		54.5	109	218
2500X3000		28.5	57	114
2500X4000		33	67	133
2500X5000		39	77	154
2500X6000		44	88	176
2500X7000		50	99	198
2500X8000		55	110	221
3000X3000		30.5	61	122
3000X4000		35	70	140
3000X5000		40	80	160
3000X6000		45	90.5	181
3000X7000		51	101	203
3000X8000		56	112.5	225
4000X4000		39	78	156
4000X5000		43	87	174
4000X6000		48	96.5	193
4000X7000		53	107	213.5
4000X8000		59	117	235
