Name: Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: مطالعه و پیگیری
Price: 40,500.00 USD
Availability: InStock

خانه > محصولات > ماشین ساخت رول استد و ردیاب >

Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness

ridge cap roll forming machine,roof tile roll forming machine

roof tile roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

مطالعه و پیگیری

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه قاب‌بندی دیوار آکوستیک گل میخ بی‌صدا دستگاه شکل‌دهی رول گل میخ و آهنگ

ابعاد (L*W*H):

6500 میلی متر * 1500 میلی متر * 1500 میلی متر

مواد خام:

گالوالوم، گالوانیزه

سرعت کار:

30 متر در دقیقه - 50 متر در دقیقه

رنگ:

سفارشی

تحویل:

30 روز کاری

برجسته کردن:

ridge cap roll forming machine,roof tile roll forming machine

roof tile roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

بهترین قیمت رو بدست بیار

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

بهترین قیمت رو بدست بیار

Roller Fixer Guide Column CU stud for Long-lasting Roofing

بهترین قیمت رو بدست بیار

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Quiet Stud Acoustic Wall Framing Machine Stud and Track Roll Forming Machine

Noise is actually vibration. A normal stud conducts the vibration across its web, and sound is transmitted via anything that reacts to it by vibrating. The QUIET STUD is overall bigger in surface area than a standard wall stud. Therefore, the sound (vibration) has further to travel and tends to weaken in intensity across the wall, resulting in a more acoustic efficient wall system.

Its unique design, combined with appropriate lining board systems, forms an effective buffer against unwanted noise to provide a cost-effective solution to acoustic control provisions.

Profile

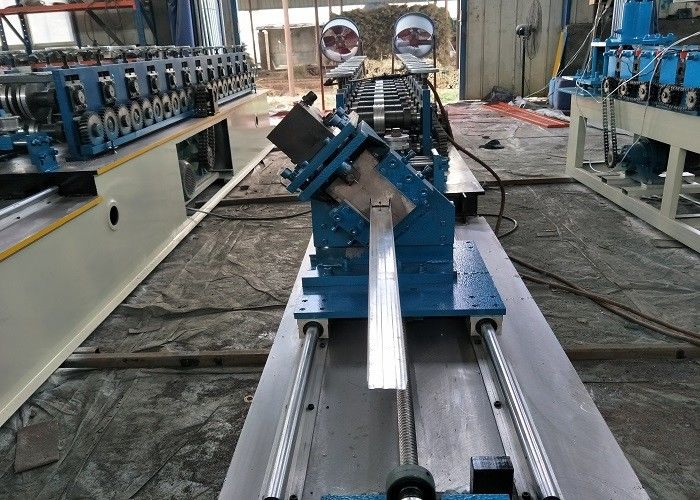

Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness 0

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	20-30 GA
3	Working Speed	30-50 m/min
4	Roller Station	14 Raws
5	Dimension (LWH)	6000 mm1500 mm1500 mm
6	Machine Weight	4500 KG
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	240V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness 1
