Name: USA hot selling Downspout Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: ناودان
Price: 16,500.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی لوله پایین >

USA hot selling Downspout Roll Forming Machine

gutter rolling machine,gutter forming machine

gutter forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

ناودان

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

فروش داغ Downspout Roll Forming Machine

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم، مس

ولتاژ:

380 ولت 50Hz 3Phases

وضعیت:

جدید

سیستم کنترل:

PLC

استفاده:

زه آب برای پشت بام

وزن:

سرعت:

8-10 متر در دقیقه

برجسته کردن:

gutter rolling machine,gutter forming machine

gutter forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

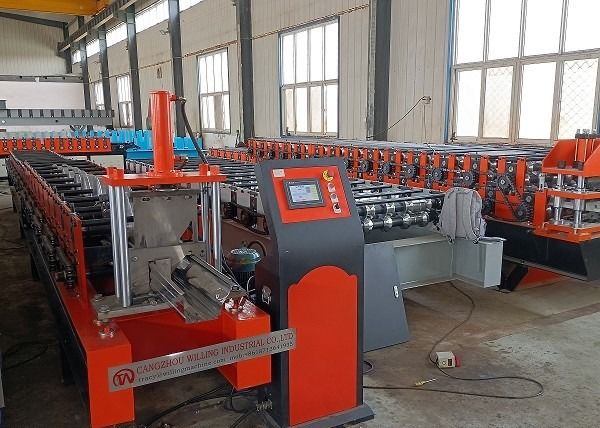

USA hot selling Downspout Roll Forming Machine

The gutter molding equipment is a gutter molding equipment developed and designed by our company according to the needs of the mainstream gutter market in the USA.
This equipment has high output efficiency. The gutter board produced by it has a flat surface, no scratches, easy installation, light volume, and low site requirements. It is one of the best-selling versions in the US market.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.6 mm - 1.0 mm
3	Working Speed	8-10 m/min
4	Roller Station	18 Stations
5	Dimension (LWH)	8500 mm800 mm1200 mm
6	Machine Weight	8000 KG
7	Electrical Control System	PLC (can be customized)
8	Drive Motor Power	5.5 KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES
11	Cutting Accuracy	± 2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	50 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

This produc has the advantages of easy installation, short construction period, beautiful appearance, light weight but high strength.so it's widely used in roofs and walls of factories, warehouses, garages, stadiums, exhibition centers, cinemas, theaters, etc.

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms and delivery

40% in advance as down payment

60% is paid before the shipment is processed

The Delivery Time: 30 days after the down payment is received.
