خانه > محصولات > فولاد گالوانیزه پیش رنگ >

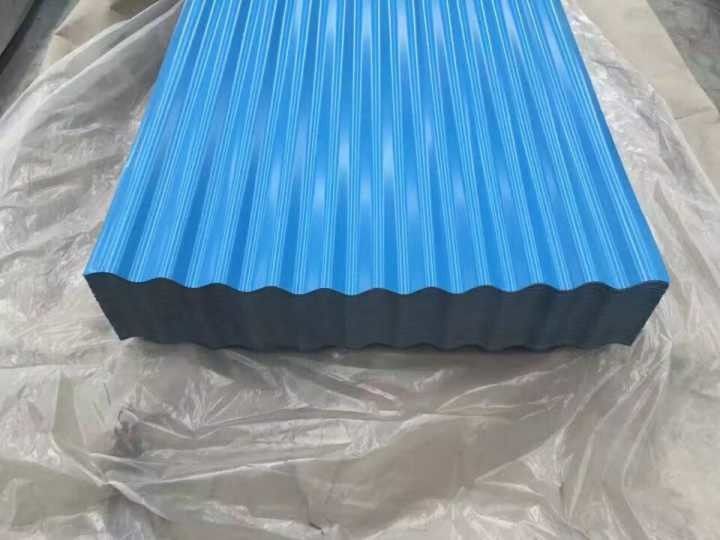

Color Corrugated Roofing PrePainted Gi Sheet

1.2mm pre painted galvanized steel sheet,1200mm pre painted galvanized steel sheet

1200mm pre painted galvanized steel sheet

محل منبع:

چین

نام تجاری:

polygold,discovery

گواهی:

soncap

شماره مدل:

002

با ما تماس بگیرید

درخواست قیمت

Color Corrugated Roofing PrePainted Gi Sheet

جزئیات محصول

مواد:

فولاد گالوانیزه

رنگ:

رنگ ral یا نمونه مطابق با مشتری

برجسته کردن:

1.2mm pre painted galvanized steel sheet,1200mm pre painted galvanized steel sheet

1200mm pre painted galvanized steel sheet

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

25 تن

قیمت

usd600-1000/ton

جزئیات بسته بندی

صادرات بسته بندی ایستاده

زمان تحویل

7-18 روز پس از دریافت سپرده

قابلیت ارائه

12000 تن در ماه

محصولات مرتبط

ویدئو

Colorful Decorative 0.35mm Stone Coated Metal Roofing Tiles

بهترین قیمت رو بدست بیار

ویدئو

Metal Stone Coated 1340*420mm Prepainted Galvanized Steel Roof Tile

بهترین قیمت رو بدست بیار

ویدئو

Color Stone Prepainted Galvanized Steel Coated Metal Roofing Tiles

بهترین قیمت رو بدست بیار

Cold Rolled 1200mm Width 0.13mm Color Steel Coil

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

ppgi corrugated roofing sheets

Products Specifications

Brand	Polygold
Product DESC.:	Galvanized steel coil
Base Metal:	Galvanized Steel Coil(GI), Prepainted Galvanizeded Steel Coil (PPGI), Al-Zn coated steel coil(GL, PPGL)
Thickness:	0.2-1.2mm
Width:	600-1200mm
Length:	600-5000mm
Coil ID:	508mm,610mm
Coil weight	3.0 tons – 5.0 tons
Zinc coating weight:	40-275g/m2
Surface protection:	PE, PVC, PVDF ,SMP,HDP
Surface treatment:	Chromate, oil/unoil, bright finish, spangle, anti-finger print
Type:	sheet,coil
Color:	Ral,NCS,Pantone
Technology:	Cold rolled
Capacity:	5000T/Month
MOQ:	20 Tons
Price Terms:	FOB, CNF, CIF
Payment Terms:	L/C, T/T
Lead time:	15-20 Days
Delivery port:	Qingdao,Shanghai
Packaging:	Standard Safety Package
Grade:	Q195-Q235 and SPCC, SPCD, SPCE, SGCC ,CGCC,(DX51D+Z), SGCD, (DX52D+Z), etc.
Standard:	DIN, JIS, EN, ASTM, GB
Certificate:	ISO, SONCAP, SGS

Sectional Structure

Product Sectional Structure

Item	Type	Features
Protection Film	Polyethylene	Protecting from scratches and contamination
Clear Varnish	Polyester	Protecting printing layer and enhances the appearance of the surface
Print	PVDF link	Various printing patterns,3 color overprint
Top Coat	PE/SMP/HDP/PVDF	Chemical resistance, formability and colors multiformity
Primer Coat	Polyester	Workability, corrosion resistance and adhesion to the primer coating
Pre-treatment	Crfree Passivation	Good adhesion and corrosion resistance
Substrate	GI,GL,EG,CR	Galvanized Steel, Aluzinc Steel, Electro-galvanized Steel, Cold Rolled Steel
Pre-treatment	Crfree Passivation	Good adhesion and corrosion resistance
Back Coat	Epoxy Resin	Corrosion resistance and adhesion to the substrate

Color Slection

The RAL chart is now used worldwide to specify the exact colour requirements. It is widely used in production of PPGI for denoting the colour reference.

Color Corrugated Roofing PrePainted Gi Sheet 0

Products Photos

Products Photos

Color Corrugated Roofing PrePainted Gi Sheet 1

Color Corrugated Roofing PrePainted Gi Sheet 2

Color Corrugated Roofing PrePainted Gi Sheet 3

Color Corrugated Roofing PrePainted Gi Sheet 4

Color Corrugated Roofing PrePainted Gi Sheet 5

Color Corrugated Roofing PrePainted Gi Sheet 6

Color Corrugated Roofing PrePainted Gi Sheet 7

Color Corrugated Roofing PrePainted Gi Sheet 8

Applications

Applications:

Corrugated steel sheets are roll formed by roll forming machine. With the great benefits of light weight,high strength,rich colors and easily installation, they are widely used in industrial and civil buildings, warehouse, large scale steel structure houses and mobile homes, roof, walls, interior and exterior decoration, etc

packaging

Packaing and Loading

Sheet Packaging

Color Corrugated Roofing PrePainted Gi Sheet 9

Color Corrugated Roofing PrePainted Gi Sheet 10

Coil Packaging

Container Loading

Color Corrugated Roofing PrePainted Gi Sheet 13

Color Corrugated Roofing PrePainted Gi Sheet 14

Shipping to worldwide
