Name: Tracking Shearing Style 0.8mm Light Gauge Steel Framing Machines
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: مطالعه و پیگیری
Price: 40,500.00 USD
Availability: InStock

خانه > محصولات > ماشین ساخت رول استد و ردیاب >

Tracking Shearing Style 0.8mm Light Gauge Steel Framing Machines

0.8mm light gauge steel framing machines,shearing light gauge steel machine,30m/min Light Gauge Steel Framing Machines

shearing light gauge steel machine

30m/min Light Gauge Steel Framing Machines

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

مطالعه و پیگیری

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

ابعاد (L*W*H):

6500 میلی متر * 1500 میلی متر * 1500 میلی متر

مواد خام:

گالوالوم، نوارهای گالوانیزه

سرعت:

30 متر در دقیقه - 50 متر در دقیقه

ضخامت مواد:

0.3mm - 0.8mm

اصل:

چین

ولتاژ:

سفارشی

وزن:

2.3 تن

رنگ:

برای سفارش

گواهینامه:

ISO ، CE

برجسته کردن:

0.8mm light gauge steel framing machines,shearing light gauge steel machine,30m/min Light Gauge Steel Framing Machines

shearing light gauge steel machine

30m/min Light Gauge Steel Framing Machines

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

بهترین قیمت رو بدست بیار

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

بهترین قیمت رو بدست بیار

Roller Fixer Guide Column CU stud for Long-lasting Roofing

بهترین قیمت رو بدست بیار

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

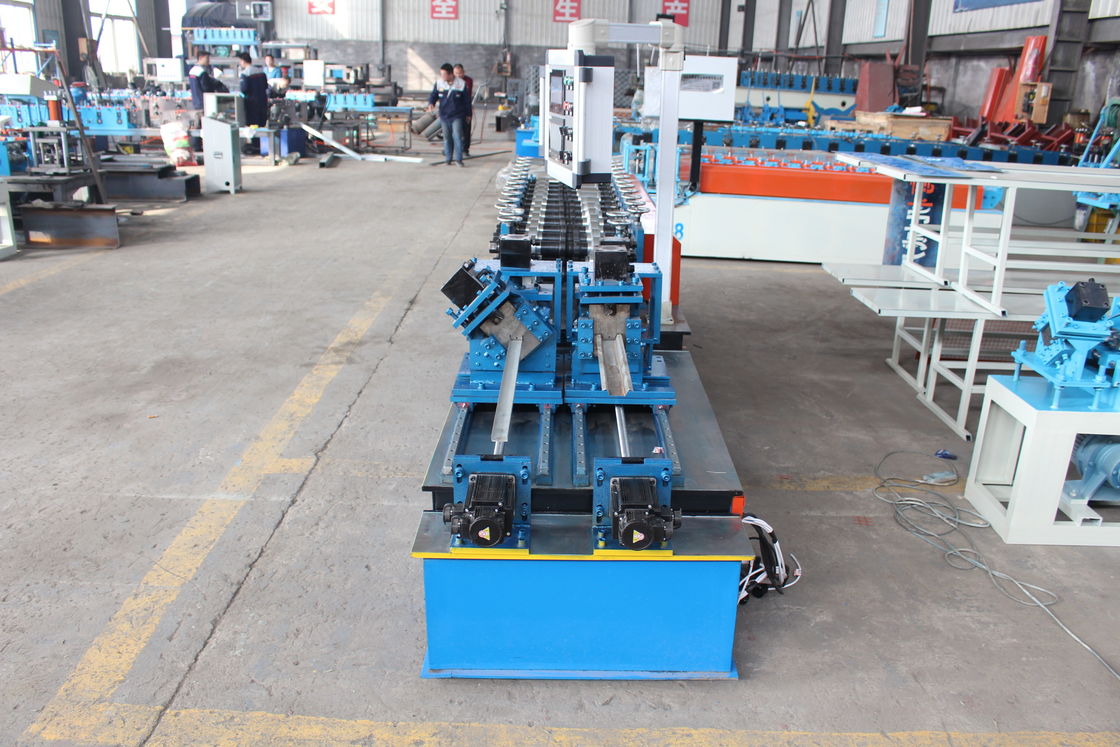

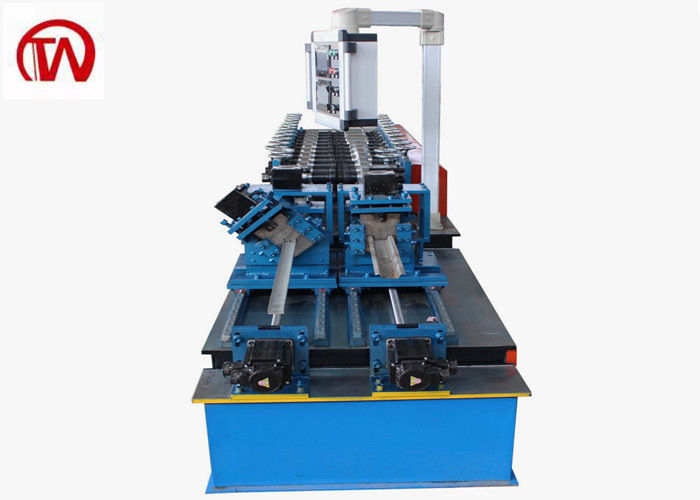

Tracking Shearing Style Light Gauge Steel Frame Roll Forming Machine

This machine is designed and fabricated as roll former to make light steel frames, such as stud for example. It is a good racking Shearing Style Light Gauge Steel Frame Roll Forming Machine with a shear which cuts the frame without stop. Therefore itt saves time and make the production more efficient. It is very good partner machine that used in light gauge steel frame industry and helpul partner for metal building contractor.

It is available to add any other units into this Roll Forming Machine Line when you want to make some features on the profile. For example, you add a punching unit when need holes, and a die roller when need graphic.

Profile

Tracking Shearing Style 0.8mm Light Gauge Steel Framing Machines 0

Also can punch the hole and lettering

Tracking Shearing Style 0.8mm Light Gauge Steel Framing Machines 1

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	20-30 GA
3	Working Speed	30-50 m/min
4	Roller Station	14 Raws
5	Dimension (LWH)	6000 mm1500 mm1500 mm
6	Machine Weight	4500 KG
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	240V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Tracking Shearing Style 0.8mm Light Gauge Steel Framing Machines 2
