Name: Circular Arc Steel PPGI 0.3mm Roof Tile Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: قوس دایره ای
Price: 16,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی کاشی سقف >

Circular Arc Steel PPGI 0.3mm Roof Tile Roll Forming Machine

PPGI tile forming machine,PPGI roof tile roll forming machine,0.3mm roof tile roll forming machine

PPGI roof tile roll forming machine

0.3mm roof tile roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

قوس دایره ای

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول کاشی سقفی با قوس دایره ای

خدمات پس از فروش ارائه شده است:

مهندسان موجود برای ماشین آلات در خارج از کشور ، پشتیبانی فنی ویدیویی ، پشتیبانی آنلاین ، خدمات تعمیر

مواد خام:

ورق PPGI/گالوانیزه

ولتاژ:

380/50Hz/3PH

سیستم کنترل:

PLC

وزن:

2.2 تن

ظرفیت تولید:

10-15 متر در دقیقه

ضخامت:

0.3mm-0.8mm

قدرت:

5.5 کیلووات

عرض مواد خام:

1000 میلی متر

برجسته کردن:

PPGI tile forming machine,PPGI roof tile roll forming machine,0.3mm roof tile roll forming machine

PPGI roof tile roll forming machine

0.3mm roof tile roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

Circular Arc Steel Tile Roof Tile Roll Forming Machine

With more than 10 years work experience, our Circular Arc Steel Tile Roof Tile Roll Forming Machine has been exported to many countries.
Due to its durability, convenient operation, stable operation, good material, high hardness, and long operating life, the tile press is highly praised by a wide range of users.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	10-15m/min ( not including the cutting time)
4	Roller Station	16 Raws
5	Dimension (LWH)	7500 mm1500 mm1500 mm
6	Machine Weight	5500 KG
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	380V/60HZ/3 PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Arc steel plates are mainly used for roofs, walls, doors, large-span factories, warehouses, office buildings, villas, roof additions, air purification rooms, cold storage, shops, kiosks and temporary houses in industrial and commercial buildings.

Advantage

(1) Manual uncoiler
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 5 Ton.
(2) Feeding table
Receiving the raw material (steel sheet), it guarantees parallel and everything is uniformity.
(3) Machine material
welded steel frame structure of our machine, AC frequency conversion motor reducer drive, chain transmission, heat treatment works together In order to get high quality product
(4) Shearing system
It adopts hydraulic station and automatic cut to length system to realize the stably cutting of certain length of products.
(5) Hydraulic system
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves works together to make sure the cuting is stability.

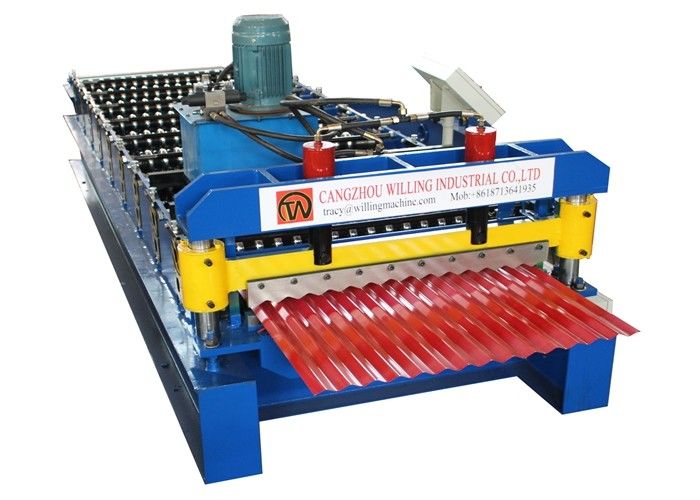

Circular Arc Steel PPGI 0.3mm Roof Tile Roll Forming Machine 0
