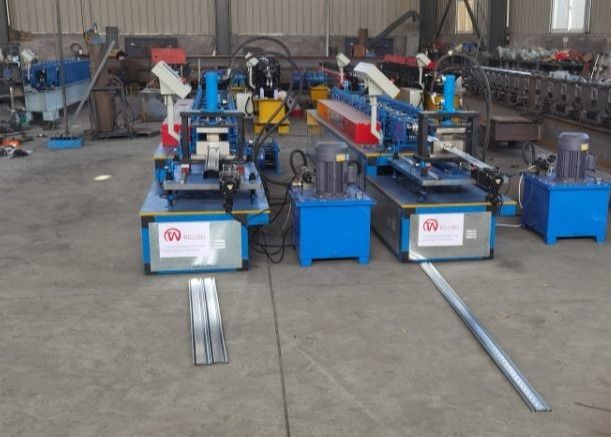

Name: Non Stop Cutting 0.5mm Rolling Shutter Door Slats Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: نوار شاتر
Price: 12000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ درب کرکره ای >

Non Stop Cutting 0.5mm Rolling Shutter Door Slats Roll Forming Machine

rolling shutter door slats roll forming machine,0.5mm rolling shutter door slats roll forming machine,gl shutter roll forming machine

0.5mm rolling shutter door slats roll forming machine

gl shutter roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

نوار شاتر

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول شکل دهی درب کرکره ای بدون توقف

مواد خام:

گالوالوم، گالوانیزه، PPGI

سرعت کار:

20 متر در دقیقه - 30 متر در دقیقه

ضخامت مواد:

0.5 میلی متر - 1.0 میلی متر

ولتاژ:

3 فاز 380 ولت 50 هرتز

وضعیت:

جدید

رنگ:

طبق درخواست

وزن ماشین:

3.5 تن

سختی مواد خام:

Q235

قدرت:

3 کیلو وات

برجسته کردن:

rolling shutter door slats roll forming machine,0.5mm rolling shutter door slats roll forming machine,gl shutter roll forming machine

0.5mm rolling shutter door slats roll forming machine

gl shutter roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

25 مجموعه در هر ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Non stop cutting Shutter Door Slats Roll Forming Machine

Non stop cutting Shutter Door Slats Roll Forming Machine ,the service life of cutting blades exceeds 2 million times and The blade is fixed by bolts ,so it is easy to replace.

This machine Can make the roller shutter size 39mm, 42mm, 55mm, 77mm and 95mm . According to customer's required profile drawing or samples.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.5mm - 1.0 mm
3	Working Speed	15-30 m/min
4	Roller Station	12 Stations
5	Dimension (LWH)	5500 mm800 mm1200 mm
6	Machine Weight	3.5 tons
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	3 KW
9	Hydraulic Station Power	3 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 1 mm
12	Driving Mode	Gear Wheel
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

the shutter door can improve the satisfaction of high-performance logistics and clean places, and save energy, improve the effect of air conditioning, high-speed automatic closing, improve efficiency, and create an ideal and comfortable working environment. Fast rolling doors are widely used in food, textiles, electronics, machinery, pharmaceuticals, printing, supermarkets, shopping malls, cold storage, warehousing, logistics, chemistry, packaging and other places. They are suitable for logistics channels, clean workshops, large-area openings, and windproof requirements. Higher-class indoor and outdoor doors.

Advantage

the shutter door can effectively isolate temperature, heat, insects, noise, and odor, and play a blocking role in the room, reduce energy consumption, and keep the indoor working environment clean.
