Heat Preservation Rock wool 4m/Min Sandwich Panel Roll Forming Machine

Heat Preservation Rock wool 4m/Min Sandwich Panel Roll Forming Machine

rockwool sandwich panel roll forming machine,heat preservation rockwool sandwich panel machine,4m/min sandwich panel roll forming machine

heat preservation rockwool sandwich panel machine

4m/min sandwich panel roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

پنل ساندویچ

با ما تماس بگیرید
درخواست قیمت
جزئیات محصول
نام محصول:
دستگاه شکل دهی رول ساندویچ پانل پشم سنگ 4 متری/دقیقه حرارتی
سرعت کار:
4 متر در دقیقه
ابعاد (L*W*H):
40000 میلی متر * 2250 میلی متر * 2500 میلی متر
مواد:
EPS یا Rockwool
وضعیت:
جدید
خدمات پس از فروش ارائه شده است:
مهندسین در دسترس برای خدمات ماشین آلات در خارج از کشور، پشتیبانی فنی ویدئویی، خدمات نگهداری و تعمیرا
برجسته کردن:

rockwool sandwich panel roll forming machine,heat preservation rockwool sandwich panel machine,4m/min sandwich panel roll forming machine

,

heat preservation rockwool sandwich panel machine

,

4m/min sandwich panel roll forming machine

شرایط پرداخت و ارسال
مقدار حداقل تعداد سفارش
1 مجموعه
قیمت
negotiable
جزئیات بسته بندی
40 دقیقه FLC
زمان تحویل
45 روز کاری
شرایط پرداخت
L/C ، T/T ، D/A ، D/P
قابلیت ارائه
20 ست در ماه
محصولات مرتبط
با ما تماس بگیرید
هم اکنون تماس بگیرید
توضیح محصول

heat-preservation Rock wool Sandwich Panel Roll Forming Machine



heat-preservation Rock wool Sandwich Panel is made of asbestos and bonding materials. Suitable for heat preservation, heat insulation, sound insulation and electrical insulation. Thermal insulation board has unparalleled excellent performance of other similar boards. With its extremely low thermal conductivity, it has good heat preservation and heat insulation properties; with its extremely low water absorption, it has excellent waterproof and moisture-proof properties. ; With its high compressive strength, it has a large load-bearing performance; with its light material and simple construction, it is especially suitable for high-rise building strategies and large-scale modern construction of large-scale projects.





Specification



No. Item Description
1

Dimensions (L*W*H)

400000 mm*2250 mm*2500 m

2 Steel Thickness  0.25 mm- 0.8 mm
3 Sandwich Panel Thickenss 50 mm - 300 mm
4 Roller Station

Up layer: 13 rows.    Down layer: 14 rows

5

Working Speed

4 m /min

6

Power

Main motor power: 4kw . Flying saw power: 2*0.75kw

7

Total Power

                                   32 KW

8

Machine Weight

22 tons

9

Steel Coil Width

1000 mm   1200 mm  1250 mm

10

Hydraulic motor power

15 kw

11

Cutting Accuracy

±2 mm



Application

It can be widely used in various fields of engineering construction: in the external wall insulation of construction projects, inverted roof insulation and anti-seepage, floor radiation heating, etc., and can effectively reduce the load of high-rise buildings; water conservancy projects, such as reservoirs, channels, dams The heat preservation and heat insulation can prevent the foundation from thawing and cracking; the high-cold area roads, railways, and tunnels are insulated and anti-freeze treatment to prevent the foundation from thawing damage.





Advantage



Rock wool insulation board has the characteristics of fire prevention, heat insulation, sound absorption and noise reduction, non-corrosive, safety, and environmental protection.
Rock wool insulation board is made of natural volcanic rock, so it has the following characteristics: It has a high fire rating, will not stretch, shrink or deform in a fire, is resistant to high temperatures, and has a melting point higher than 1000°C. It is very stable in size. In a fire, no smoke or burning droplets/fragments are produced and no substances and gases harmful to the environment are released.

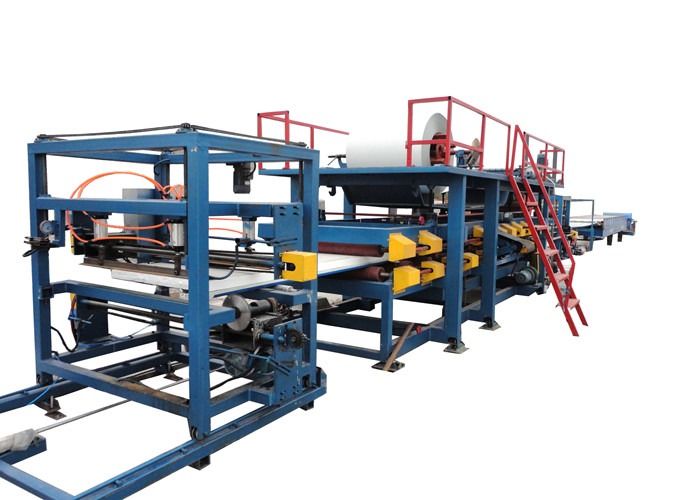

Heat Preservation Rock wool 4m/Min Sandwich Panel Roll Forming Machine 0
