Name: 80mm 120mm 300mm Galvalume Cz Purlin Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: ماشین C و Z
Price: 32,500.00 USD
Availability: InStock

خانه > محصولات > CZ Purlin Roll Forming Machine >

80mm 120mm 300mm Galvalume Cz Purlin Roll Forming Machine

300mm cz purlin roll forming machine,120mm cz purlin roll forming machine,galvalume cz purlin roll forming machine

120mm cz purlin roll forming machine

galvalume cz purlin roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

ماشین C و Z

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

C Purlin 80-300mm Z Purlin120-300mm CZ Purlin Roll Forming Machine

مواد خام:

Galvalume، PPGI

ابعاد (L*W*H):

9500 میلی متر*1400 میلی متر* 2000

ضخامت مواد:

1 میلی متر - 3 میلی متر

وزن:

ظرفیت تولید:

10-25 متر در دقیقه

ولتاژ:

380V/50Hz/3PH

قدرت موتور اصلی::

15 کیلووات

موتور هیدرولیکی:

22 کیلو وات

فشار هیدرولیکی:

18-20 مگاپاسکال

برجسته کردن:

300mm cz purlin roll forming machine,120mm cz purlin roll forming machine,galvalume cz purlin roll forming machine

120mm cz purlin roll forming machine

galvalume cz purlin roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

C Purlin 80-300mm Z Purlin120-300mm CZ Purlin Roll Forming Machine

C & Z shape purline forming machine can produce both C &Z shape purline. The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, C & Z shape forming system, punching equipment, post cutting equipment, hydraulic station, and controlling system.

Specification

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm- 3 mm
3	Working Speed	15- 20 m/min ( not including the cutting time)
4	Roller Station	12-16 Raws
5	Dimension (LWH)	9500 mm1400 mm2000 mm
6	Machine Weight	9000 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	22 KW
10	Power Supply	360V/60HZ/3PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The products of C & Z purlin forming machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large scale and mid scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.

Advantage

CZ purlin roll forming machine is a type C machine and a Z machine into one. It is controlled by the PLC computer in a short period of time to realize the exchange of the purlins of the two models of CZ. It is manual Rotate the fixed rotating plate to realize the CZ interchange. The length, quantity, longitudinal hole distance and other parameters of the purlin can be automatically carried out, and this equipment is stable and reliable in operation, the punching hole is high in precision, and the output is high. At the same time, it is also for the majority of users. Save production space.

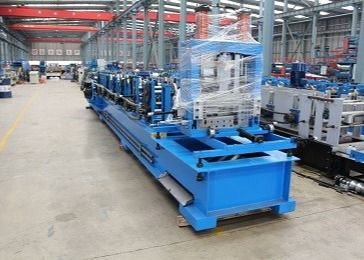

80mm 120mm 300mm Galvalume Cz Purlin Roll Forming Machine 0
