Name: High Speed Low Noise Ppgi Purlin Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: ماشین C&Z
Price: 32,500.00 USD
Availability: InStock

خانه > محصولات > CZ Purlin Roll Forming Machine >

High Speed Low Noise Ppgi Purlin Forming Machine

low noise purlin forming machine,high speed purlin forming machine,ppgi purlin forming machine

high speed purlin forming machine

ppgi purlin forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

ماشین C&Z

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول پرلین CZ با سرعت بالا و صدای کم

مواد خام:

Galvalume، PPGI، GI

ابعاد (L*W*H):

9500 میلی متر*1400 میلی متر* 2000

ضخامت مواد:

1 میلی متر - 3 میلی متر

وزن:

8 تن

ظرفیت تولید:

20 تا 25 متر/دقیقه

ولتاژ:

380V/50Hz/3PH

قدرت موتور اصلی::

15 کیلووات

موتور هیدرولیکی:

22 کیلو وات

فشار هیدرولیکی:

20MPa

برجسته کردن:

low noise purlin forming machine,high speed purlin forming machine,ppgi purlin forming machine

high speed purlin forming machine

ppgi purlin forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

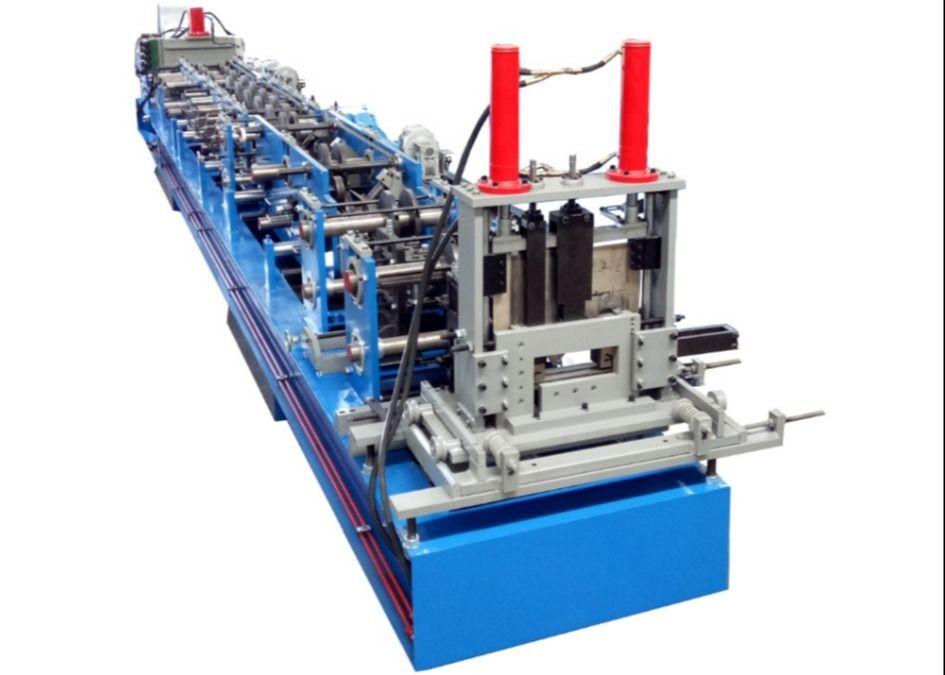

High Speed And Low Noise CZ Purlin Roll Forming Machine

The CZ purlin roll forming machine is a machine that combines the C-type and Z-type machines into one. Manually rotate the fixed rotating plate to realize CZ interchange. The length, quantity, and longitudinal hole distance of the pur strip can be automatically carried out. The equipment is stable and reliable in operation, with high punching accuracy and high output. At the same time, it is also suitable for most users. Save production space.

Specification

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm- 3 mm
3	Working Speed	20- 25 m/min
4	Roller Station	12-16 Raws
5	Dimension (LWH)	9500 mm1400 mm2000 mm
6	Machine Weight	8000 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	22 KW
10	Power Supply	360V/60HZ/3PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

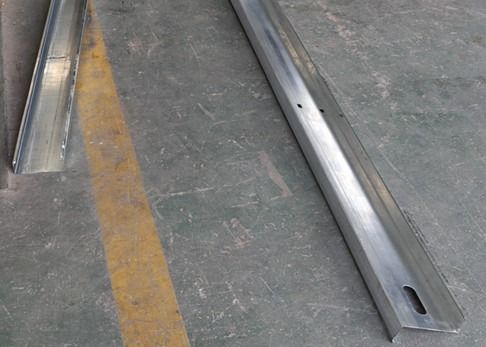

The products of C & Z prulin roll forming machine produce have excellent bending resistance and easy to install. They are widely used as supports for roofs and walls of large and medium-sized buildings such as factories and warehouses, garages, exhibition centers, cinemas, theatres, gardens, etc.

Advantage

The advantages of C& Z purlin machine AUTOMATIC size-change type are as follows:

1.Produce different purlin size without changing rollers or spacers.

2.No need changing cutter for different size.

3.Easy operation, low maintenance cost

4.Infinite sizing(any size within machine range),help to save material

5.Optional Punch hole at any position of purlin web side and flange side
