Name: Hat Channel Omega Cz Purlin Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: کانال کلاه
Price: 32,500.00 USD
Availability: InStock

خانه > محصولات > CZ Purlin Roll Forming Machine >

Hat Channel Omega Cz Purlin Roll Forming Machine

omega cz purlin roll forming machine,channel cz purlin roll forming machine,hat cz purlin roll forming machine

channel cz purlin roll forming machine

hat cz purlin roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

کانال کلاه

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول برلین Omega CZ کانال کلاه

مواد خام:

PPGI، گالوانیزه

سرعت:

15-20 متر در دقیقه

ضخامت مواد:

1 میلی متر - 3 میلی متر

وزن:

9 تن

گارانتی:

1 سال

قدرت:

15 کیلووات

سیستم کنترل:

PLC

برجسته کردن:

omega cz purlin roll forming machine,channel cz purlin roll forming machine,hat cz purlin roll forming machine

channel cz purlin roll forming machine

hat cz purlin roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Hat Channel Omega CZ Purlin Roll Forming Machine

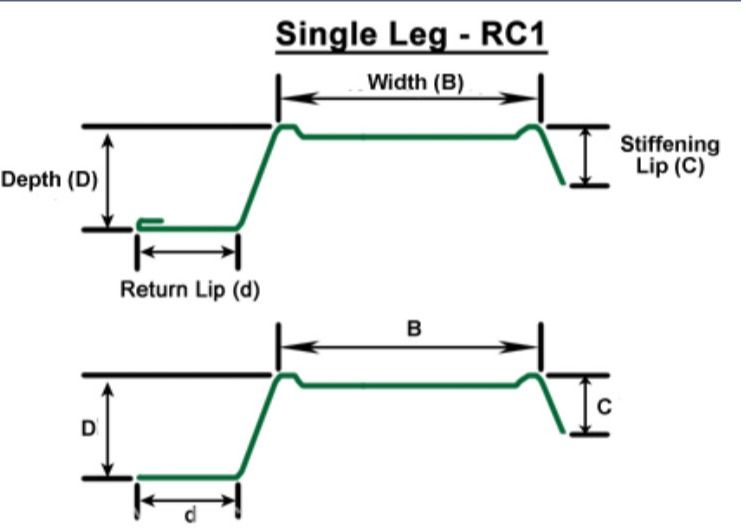

Omega channel roll forming machine can produce roof slats and ceiling slats of 40mm, 43mm, 61mm and any other size you need.
We can help customers to design machines according to the different requirements of logo punching and embossing, and we can work with customer team to create a good shape with the special characters of customer factory

Specification

No.	Item	Description
1	Coil	Galvanized
	Material Thickness	1 mm- 3 mm
3	Working Speed	15- 20 m/min ( not including the cutting time)
4	Roller Station	14 Raws
5	Dimension	650013001200
6	Machine Weight	8000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

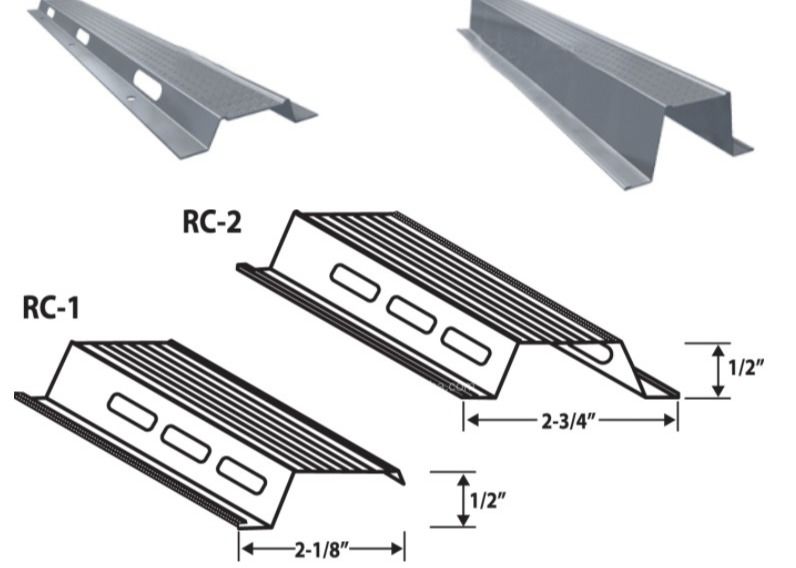

hat channel machine is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material.Products made by this machine are suitable to use in hotels, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration settings, roof and other places.

Material for this machine is galvanized steel plate, snowflake plate and cold steel plate,we can according to customer design, manufacture different specifications of cold-formed.

Advantage

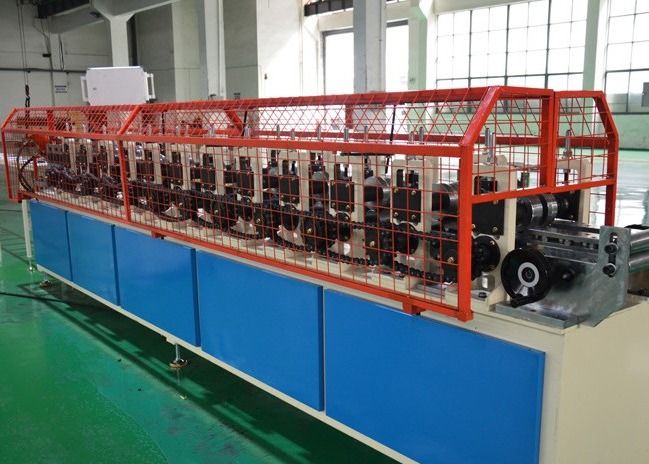

Hat Channel CZ Purlin Roll Forming Machine equipment with servo motor tracking cutting system can produce 15-20 meters per min ,
Machine body is pillar structural, with safety protection cover.
There are two encoder to measure the length of the cutting productus
PLC is world famous PLC system.

Hat Channel Omega Cz Purlin Roll Forming Machine 0
