Name: Curved Arch Color Steel PPGL Roofing Sheet Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: سقف قوسی منحنی
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Curved Arch Color Steel PPGL Roofing Sheet Roll Forming Machine

PPGL Roofing Sheet Roll Forming Machine,ppgl sheet roll forming machine,0.2mm Roofing Sheet Roll Forming Machine

ppgl sheet roll forming machine

0.2mm Roofing Sheet Roll Forming Machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

سقف قوسی منحنی

با ما تماس بگیرید

درخواست قیمت

Curved Arch Color Steel PPGL Roofing Sheet Roll Forming Machine

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ سقف فولادی رنگی سقف قوسی منحنی

مواد خام:

PPGL,GL,PPGI,GI,

سیستم کنترل:

دستی

ضخامت:

0.2-0.9 میلی متر

نوع کاشی:

خم

شعاع حداقل:

450 میلی متر

سیستم کنترل:

PLC

قدرت موتور:

4 کیلو وات

برجسته کردن:

PPGL Roofing Sheet Roll Forming Machine,ppgl sheet roll forming machine,0.2mm Roofing Sheet Roll Forming Machine

ppgl sheet roll forming machine

0.2mm Roofing Sheet Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

40 مجموعه در هر ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

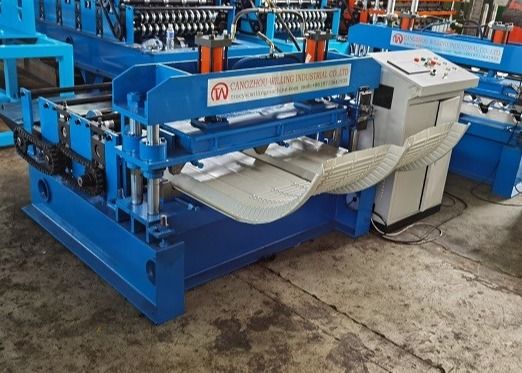

Curved Arch Roof Color Steel Roof Roll Forming Machine

Curved Arch Roof Color Steel Roof Roll Forming machine uses a rolling method to change the shape of the roof slab. The machine is flexible in control and can choose any bending position such as the middle and both ends. So as to better meet the needs of customers for different application scenarios

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.9mm
3	Working Speed	90Deg/4 min
4	Roller Station	3 Raws
5	Dimension (LWH)	2800 mm1200 mm1800mm
6	Machine Weight	1000 KG
7	Electrical Control System	Automatic
8	Drive Motor Power	4KW+4KW
9	Tile type	bending
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Curved roofs are usually used on the roof or eaves. When it rains, rainwater can be guided from the panel to the floor. This roof system can effectively prevent water accumulation and is widely used in apartment houses, prefab roofs, laboratory roofs, etc.

Advantage

The color steel roof has the advantages of light weight, high strength, thermal insulation, beautiful and durable, easy to cut and install, etc. The color steel roof construction cleaning is widely used in large-span activity workshops, warehouses, office buildings, villas, roof additions, air purification Housing, cold storage, shops, kiosks and temporary housing.

Curved Arch Color Steel PPGL Roofing Sheet Roll Forming Machine 0
