Name: Curving Adjustable Angle 0.9mm 4KW Roof Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: زاویه قابل تنظیم منحنی
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Curving Adjustable Angle 0.9mm 4KW Roof Roll Forming Machine

0.9mm Roof Roll Forming Machine,4KW Roof Roll Forming Machine,curving adjustable angle roll forming machine

4KW Roof Roll Forming Machine

curving adjustable angle roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

زاویه قابل تنظیم منحنی

با ما تماس بگیرید

درخواست قیمت

Curving Adjustable Angle 0.9mm 4KW Roof Roll Forming Machine

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول سقف با زاویه قابل تنظیم منحنی

مواد خام:

PPGL، GL، PPGI، GI،

سیستم کنترل:

خودکار

ضخامت:

0.6-0.9 میلی متر

نوع کاشی:

خم

محدوده زاویه:

15-90 درجه

سیستم کنترل:

PLC

قدرت موتور:

4 کیلو وات

برجسته کردن:

0.9mm Roof Roll Forming Machine,4KW Roof Roll Forming Machine,curving adjustable angle roll forming machine

4KW Roof Roll Forming Machine

curving adjustable angle roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

40 مجموعه در هر ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

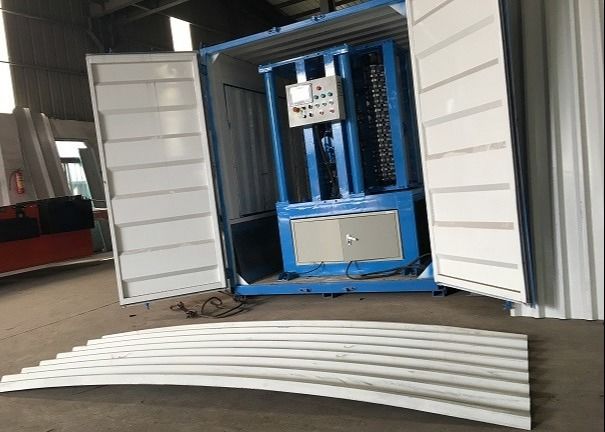

Curving Adjustable Angle Roof Roll Forming Machine

The curved arch roof color steel roof forming machine uses a rolling method to change the shape of the roof slab. The machine is flexible in control, and the angle can be adjusted through the PLC control system, the angle range is 15-90 degrees, so as to better meet the needs of customers in different application scenarios

Specification

No.	Item	Description
1	Coil	PPGI PPGL GI GL
2	Raw Material Thickness	0.6-0.9mm
3	Working Speed	90Deg/2 min
4	Roller Station	3 Raws
5	Dimension (LWH)	2800 mm1200 mm1800mm
6	Machine Weight	2000 KG
7	Electrical Control System	Automatic
8	Drive Motor Power	4KW+4KW
9	Tile type	bending
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Curved roofs are usually used on roofs or eaves. To a large extent, it can effectively guide rainwater from the roof to the ground. This roof system prevents water accumulation and is widely used in workshop roofs, garage roofs, apartment roofs, shopping mall roofs, laboratory roofs, etc.

Advantage

The curved color steel roof produced by this machine is not easy to be damaged and can be folded into a thinner steel sheet. It has the advantages of light weight, high strength, and heat insulation. Color steel roof is widely used in large-span activity workshops, warehouses, office buildings, villas, air-purified houses, cold storages, shops, etc. Because of its low cost and easy installation, it can save customers a lot of cost.

Curving Adjustable Angle 0.9mm 4KW Roof Roll Forming Machine 0
