Name: Galvanized Steel Top Hat Section 15kw Omega Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: امگا
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Galvanized Steel Top Hat Section 15kw Omega Roll Forming Machine

15kw omega roll forming machine,steel omega roll forming machine,galvanized omega roll forming machine

steel omega roll forming machine

galvanized omega roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

امگا

با ما تماس بگیرید

درخواست قیمت

Galvanized Steel Top Hat Section 15kw Omega Roll Forming Machine

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ سقف امگا بخش کلاه فولادی گالوانیزه

مواد خام:

PPGI، گالوانیزه

سرعت:

8-12 متر در دقیقه

ضخامت مواد:

0.5 میلی متر - 1.5 میلی متر

وزن:

3 تن

گارانتی:

1 سال

قدرت:

15 کیلووات

سیستم کنترل:

PLC

برجسته کردن:

15kw omega roll forming machine,steel omega roll forming machine,galvanized omega roll forming machine

steel omega roll forming machine

galvanized omega roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

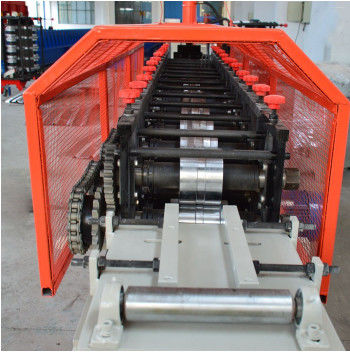

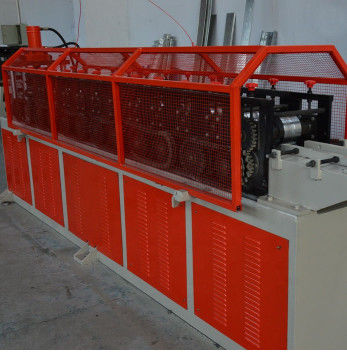

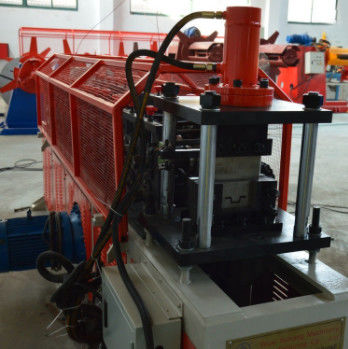

Galvanized Steel Top Hat Section Omega Roof Roll Forming Machine

Furring channel machine is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material.Material for this machine is galvanized steel plate, snowflake plate and cold steel plate,we can according to customer design, manufacture different specifications of cold-formed.

Specification

No.	Item	Description
1	Coil	PPGI,PPGL,GI,GL
	Material Thickness	0.5 mm- 1.5 mm
3	Working Speed	8-12 m/min ( not including the cutting time)
4	Roller Station	14 Raws
5	Dimension	55008001200
6	Machine Weight	3000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	5.5KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Light steel keel is used as a ceiling or wall keel, and is matched with various decorative panels (paper-faced gypsum board, mineral wool board, etc.) to form a light ceiling or partition wall, with its excellent thermal, acoustic, mechanical and technological properties And changeable decoration styles are widely used in decoration projects.

Advantage

Cangzhou willing has exported its equipment and machines to more than 80 countries over the world, such as Russia, India, Australia, Malaysia, Nigeria, Romania, South Africa,Mauritius,Mexico,etc. It has received excellent reputation. In the future, we are committed to better equipment and sales service and meeting customers' requirements when and where they need.

Galvanized Steel Top Hat Section 15kw Omega Roll Forming Machine 0
