Name: Automatic Ridge Cap Cold 4KW Roof Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: ریج خودکار
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Automatic Ridge Cap Cold 4KW Roof Roll Forming Machine

automatic ridge cap roll forming machine,4KW Roof Roll Forming Machine,0.3mm Roof Roll Forming Machine

4KW Roof Roll Forming Machine

0.3mm Roof Roll Forming Machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

ریج خودکار

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول رول سقف رول سرد ریج اتوماتیک

مواد خام:

GI، GL، PPGL، PPGI، آلومینیوم

سیستم کنترل:

PLC

ضخامت:

0.3-0.8mm

نوع کاشی:

کلاهک ریج

وضعیت:

جدید

رنگ:

طبق درخواست مشتری

قدرت موتور:

4 کیلو وات

برجسته کردن:

automatic ridge cap roll forming machine,4KW Roof Roll Forming Machine,0.3mm Roof Roll Forming Machine

4KW Roof Roll Forming Machine

0.3mm Roof Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

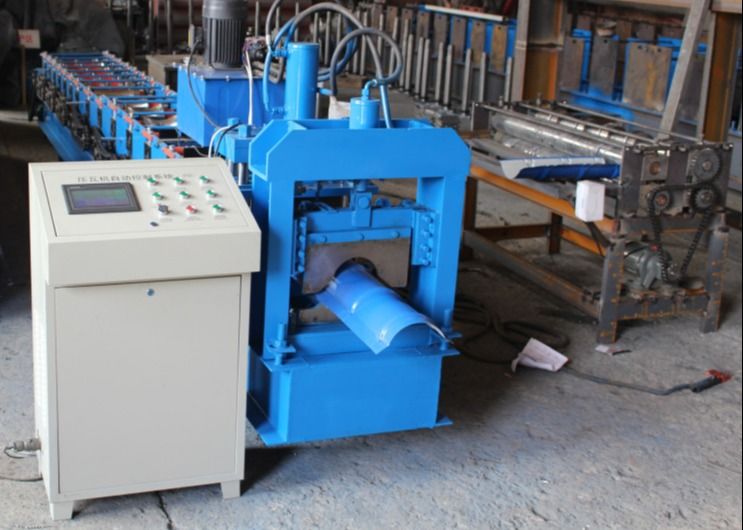

Automatic Ridge Cold Roll Roof Roll Forming Machine

The ridge tiles produced by our company are rich in color, light in weight, good in water resistance, high in strength, fast in installation, and generally have a service life of 15-20 years.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	20-30 m/min ( not including the cutting time)

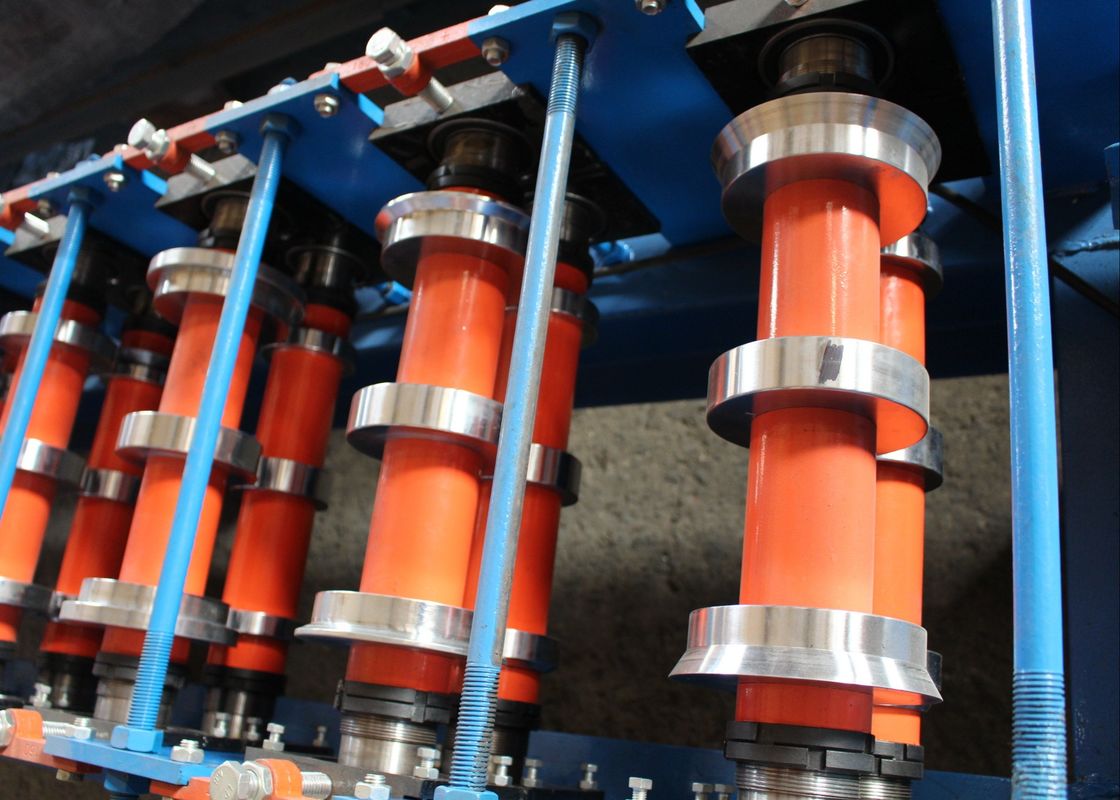

4	Roller Station	11 Raws
5	Dimension (LWH)	58000 mm1200 mm1100 mm
6	Machine Weight	4000 KG

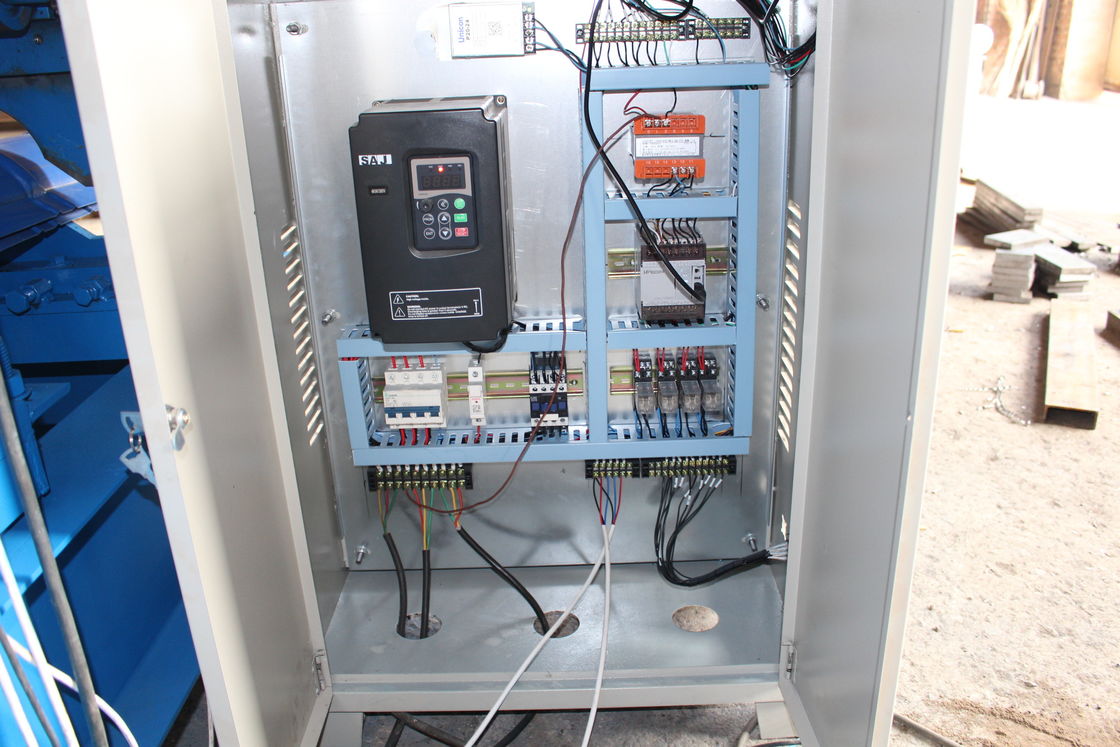

7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	4KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The Metal Roof Ridge Cap Building Materials is widely used in the construction of various industrial plants, villages, warehouses, lab , exhibition, family construction, shopping malls etc.

Advantage

The color steel roof ridge cover has the characteristics of light weight, high strength, good waterproofness, convenient and quick installation, etc., and can be widely used in the roofs of villas, urban flats, and tourist attractions. Compared with other materials, not only the construction period is short, but the construction method is simple, and the beautiful roof can be maintained without editing and repairing. The curved color steel roof ridge tiles are more complete on the basis of the handmade roof ridge tiles. It is a better partner for colored steel glazed tiles or colored steel plates.
