Name: 0.3mm Two Line In One U And Omega Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: U و امگا
Price: 40,500.00 USD
Availability: InStock

خانه > محصولات > ماشین ساخت رول استد و ردیاب >

0.3mm Two Line In One U And Omega Roll Forming Machine

omega roll forming machine,u and omega roll forming machine,0.3mm omega roll forming machine

u and omega roll forming machine

0.3mm omega roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

U و امگا

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول دو خط در یک U و امگا گل میخ و مسیر

مواد خام:

PL، GL، PPGL، PPGI

سرعت کار:

15-20 متر در دقیقه

ضخامت مواد:

0.3 میلی متر - 1.5 میلی متر

وزن:

6 تن

تحویل:

30 روز کاری

برجسته کردن:

omega roll forming machine,u and omega roll forming machine,0.3mm omega roll forming machine

u and omega roll forming machine

0.3mm omega roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

بهترین قیمت رو بدست بیار

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

بهترین قیمت رو بدست بیار

Roller Fixer Guide Column CU stud for Long-lasting Roofing

بهترین قیمت رو بدست بیار

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

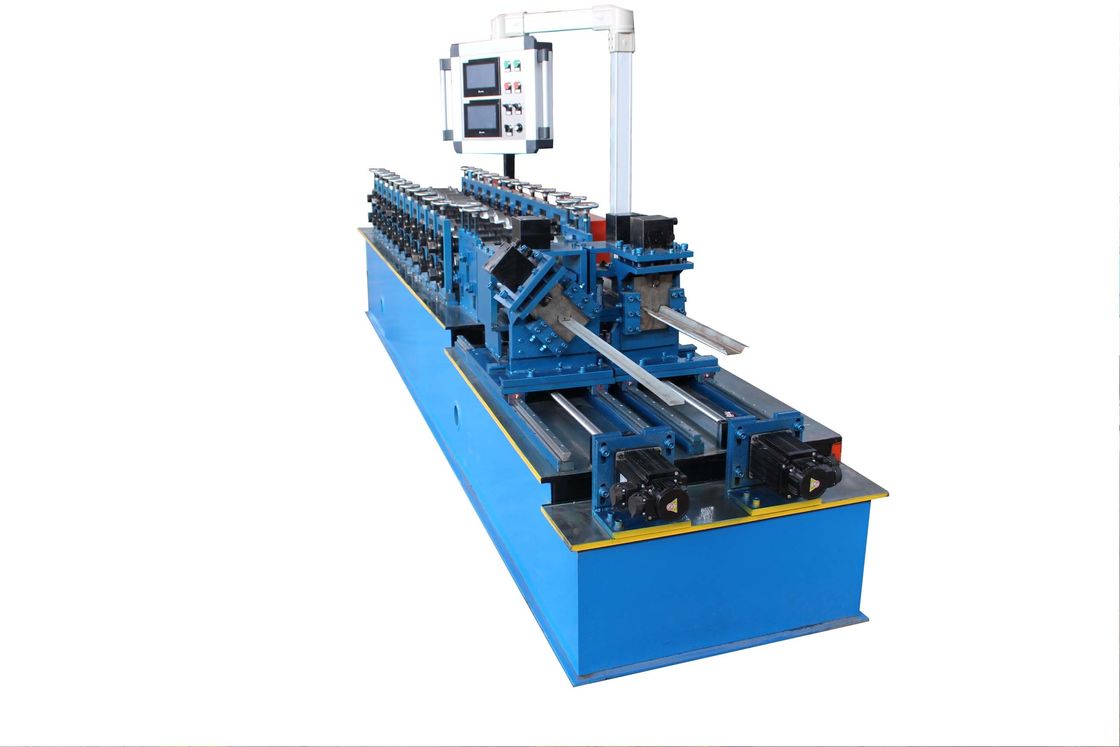

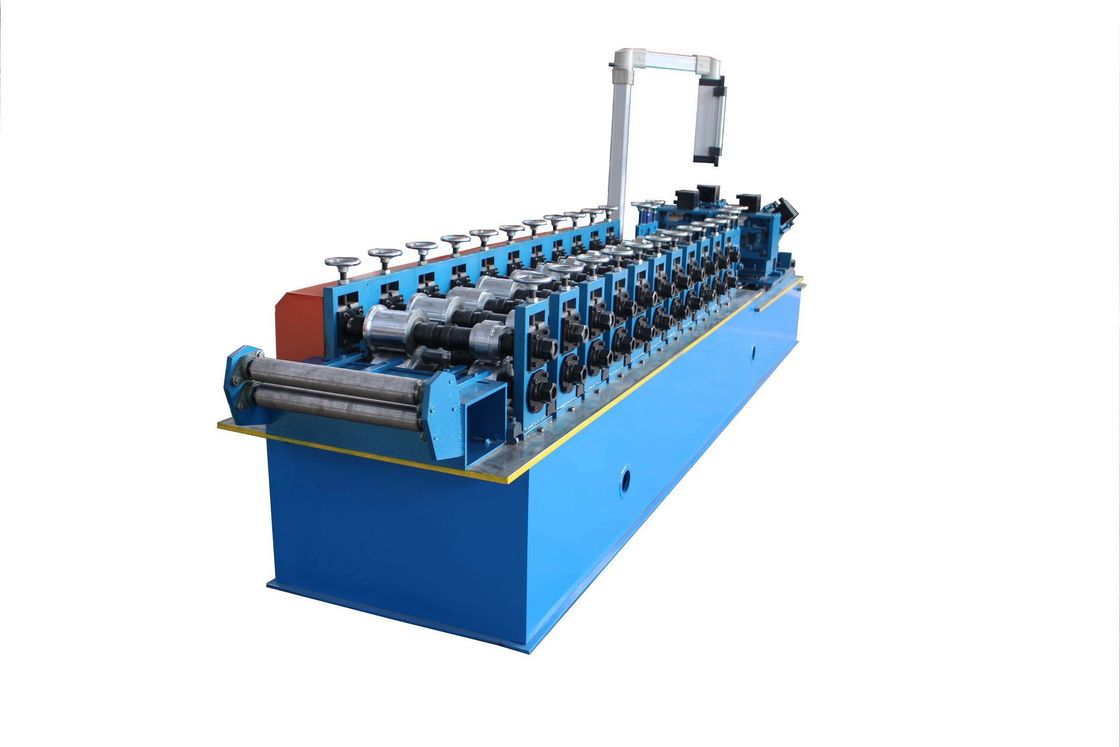

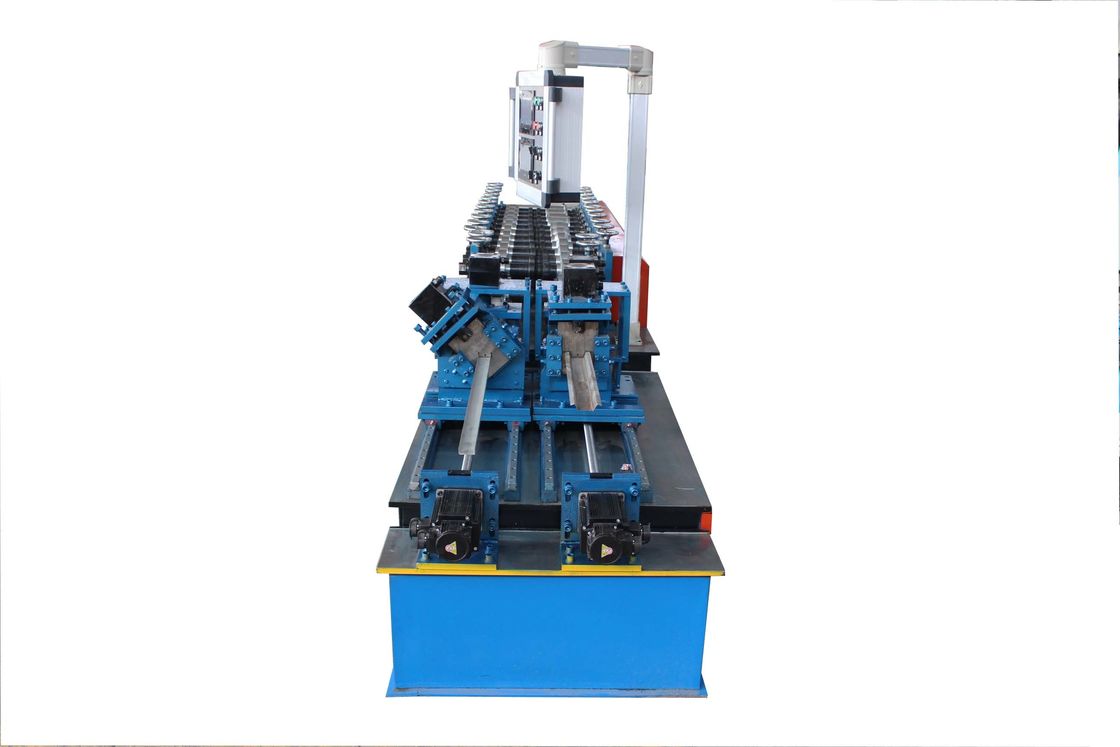

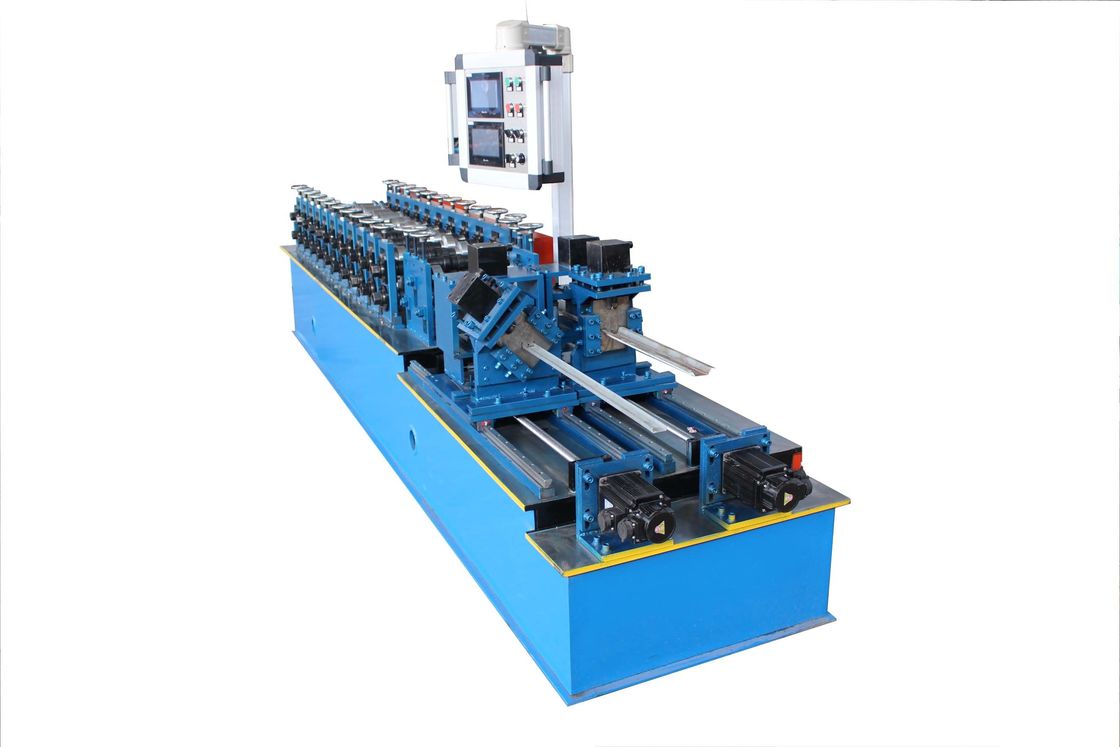

Two Line In One U And Omega Stud And Track Roll Forming Machine

C and Omega in one roll forming machine, which is combined with the C chanel roll forming machine and the Omega roll forming machine. It can work separately because it has an independent control system.Two lines working at the same time can effectively use the machine to improve production efficiency

Specification

No.	Item	Description
1	Coil	PL,GL,PPGL,PPGI
2	Raw Material Thickness	0.3-1.5mm
3	Working Speed	15-20m/min
4	Roller Station	14 Raws
5	Dimension (LWH)	6000 mm1500 mm1500 mm
6	Machine Weight	4500 KG
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	380V, 60HZ, 3 PHASES
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

C and Omega steel structures have beautiful appearance and strong structure, and they are also widely used nowadays. Good lighting, quick disassembly and assembly, time-saving and laborious, light weight, long service life, good stability, cumbersome construction, convenient transportation, and ability to disassemble and assemble many times; the house has features such as meticulous sealing, sound insulation, waterproof structure, moisture resistance and corrosion resistance , Fire resistance, robustness and stability, random intervals, multiple disassembly and assembly and other high-quality functions to meet the opposite needs of customers, so C-shaped steel is widely used in real life.

Advantage

Cangzhou willing has a long history in producing purlin lines. Their technology experience was solidified decades ago with a flexible hydraulic punching system called the soft punch. Since then cangzhou willing has produced several systems to accommodate the changing industry needs.We have a team of professionals with years of experience and proven track record in bringing to you something advanced and innovative that is energy efficient too.
