Name: 4kw Automatic Crimping Bending 0.8mm Metal Roof Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: چین خوردگی خودکار
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

4kw Automatic Crimping Bending 0.8mm Metal Roof Roll Forming Machine

4kw automatic roll forming machine,0.8mm metal roof roll forming machine,PPGI metal roof roll forming machine

0.8mm metal roof roll forming machine

PPGI metal roof roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

چین خوردگی خودکار

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول شکل دهی سقف خم کن اتوماتیک 4 کیلو وات

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

سیستم کنترل:

دستی

ضخامت:

0.3-0.8mm

نوع کاشی:

خم

وضعیت:

جدید

رنگ:

طبق درخواست مشتری

قدرت موتور:

4 کیلو وات

برجسته کردن:

4kw automatic roll forming machine,0.8mm metal roof roll forming machine,PPGI metal roof roll forming machine

0.8mm metal roof roll forming machine

PPGI metal roof roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

35 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

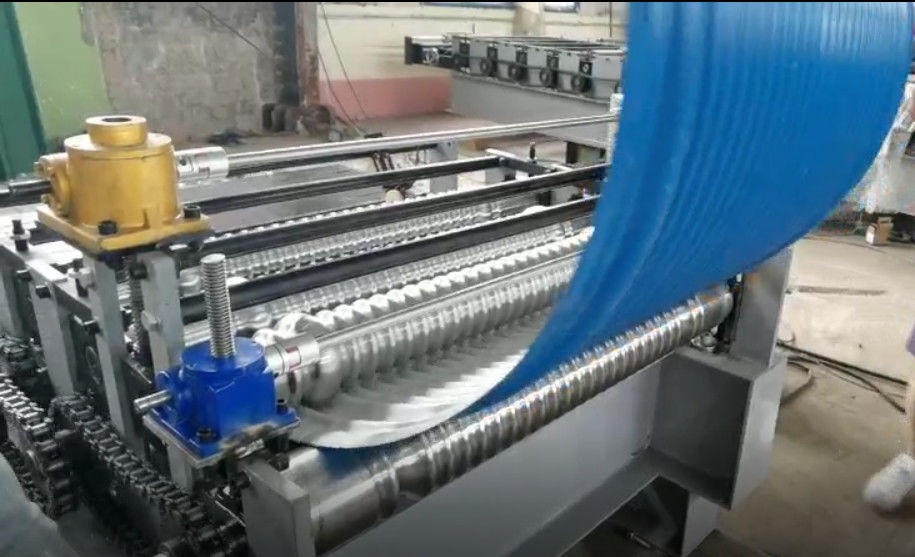

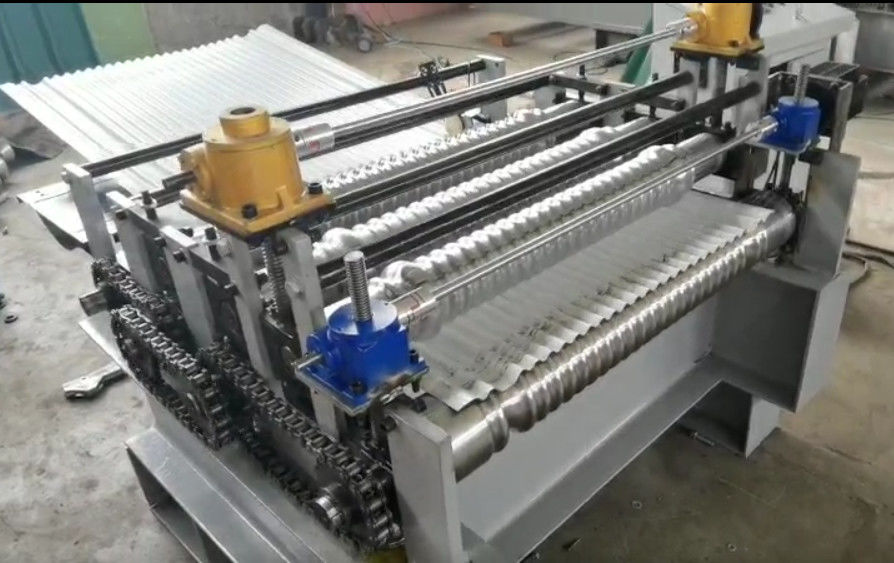

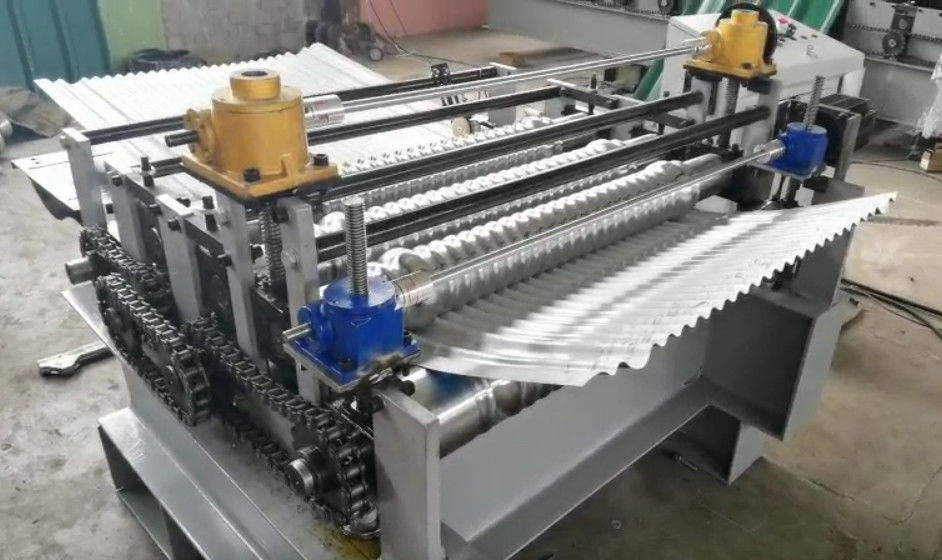

Automatic Crimping Bending Roof Roll Forming Machine

This machine changed the cold pressing method of the previous machine. Use the scroll wheel to change the shape of the roof slab. This production method is suitable for thin and easily damaged panels. Due to its small size, small footprint, and simple operation, this equipment is used by customers to produce roof color steel plates.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	0-15 m/min
4	Roller Station	3 Raws
5	Dimension (LWH)	2000 mm1200 mm1100 mm
6	Machine Weight	1000 KG
7	Electrical Control System	Automatic
8	Drive Motor Power	4KW
9	Tile type	bending
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

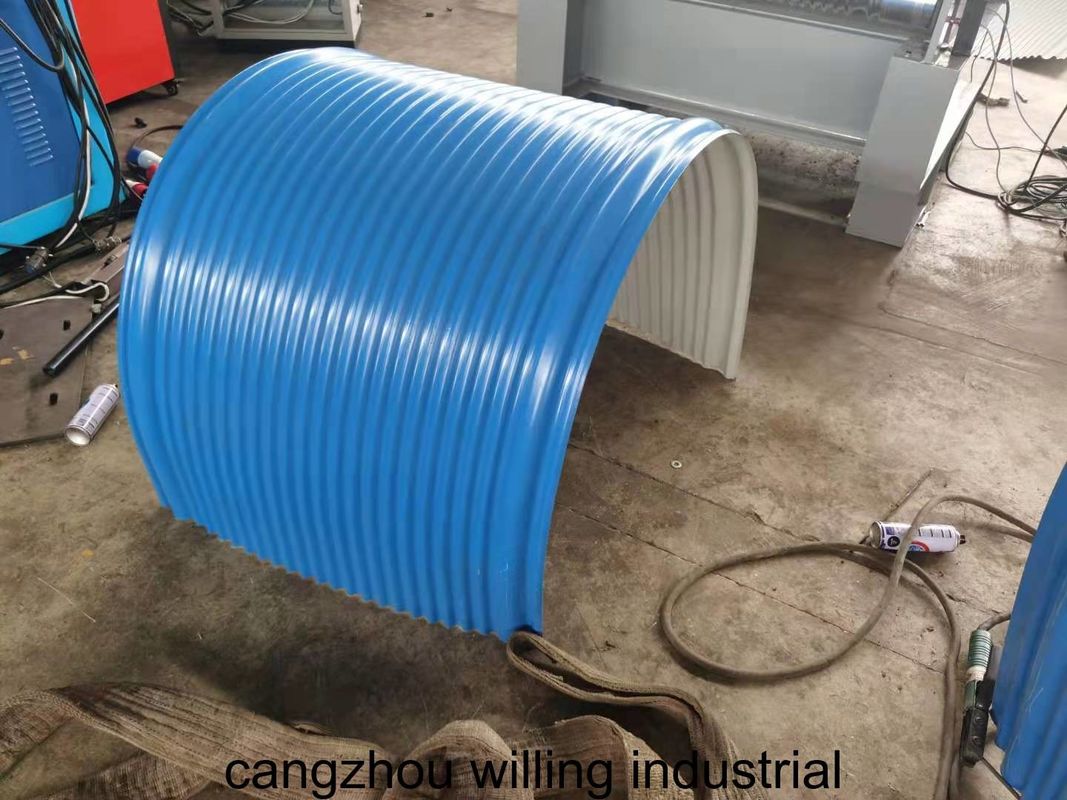

the tiles widely used in garage roofs, workshop roofs, prefab roofs, laboratory roofs, apartment roofs, shopping mall roofs etc.

Advantage

The color steel tile is made of color steel plate and has good carrying capacity. It have extraordinary durability in natural environments, and can maintain color stability even in harsh environments.due to density is small, it does not absorb water, and there is no problem of microporous water seepage. In addition, the color steel roof ridge tile has a large single-layer area, few roof joints, and tight joints, which enhances the waterproof effect.
