Name: 900mm Trapezoid Hydraulic Shear Ibr Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: نمایه IBR 900
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

900mm Trapezoid Hydraulic Shear Ibr Roll Forming Machine

trapezoid ibr roll forming machine,900mm ibr roll forming machine,hydraulic shear ibr roll forming machine

900mm ibr roll forming machine

hydraulic shear ibr roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

نمایه IBR 900

با ما تماس بگیرید

درخواست قیمت

900mm Trapezoid Hydraulic Shear Ibr Roll Forming Machine

جزئیات محصول

نام محصول:

دستگاه رول شکل دهی سقف برشی هیدرولیک ذوزنقه ای IBR 900

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

سیستم کنترل:

PLC

ضخامت:

0.3-0.8mm

نوع کاشی:

ماشین آلات رول فرمینگ/ماشین آلات مصالح ساختمانی

وضعیت:

جدید

رنگ:

طبق درخواست مشتری

قدرت موتور:

3.5 کیلو وات

عرض مواد خام:

1000 میلی متر

وزن ماشین:

4 تن

برجسته کردن:

trapezoid ibr roll forming machine,900mm ibr roll forming machine,hydraulic shear ibr roll forming machine

900mm ibr roll forming machine

hydraulic shear ibr roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

25 مجموعه در هر ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

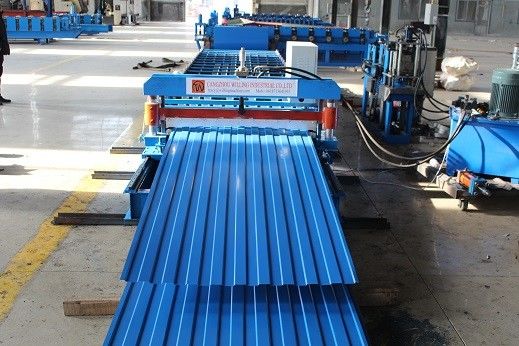

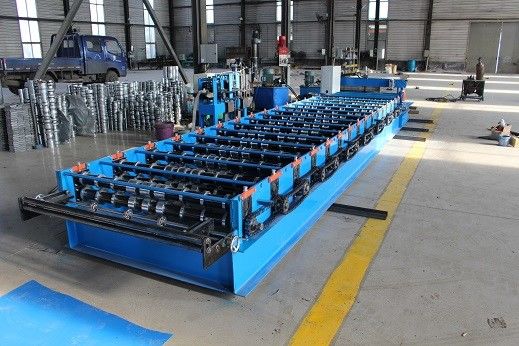

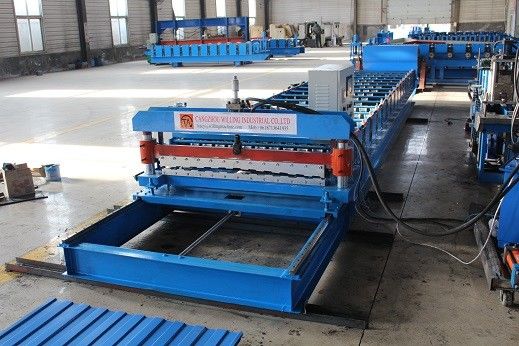

IBR 900 Trapezoid Hydraulic Shear Roof Roll Forming Machine

IBR 900 Trapezoid Hydraulic Shear Roof Roll Forming Machine is accompanied by the efficient integration of PLC computer control system, hydraulic pump station system, and fully automatic post-shearing system. So as to efficiently meet the different needs of customers

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	20-30 m/min ( not including the cutting time)
4	Roller Station	12 Raws
5	Dimension (LWH)	58000 mm1200 mm1100 mm
6	Machine Weight	4000 KG

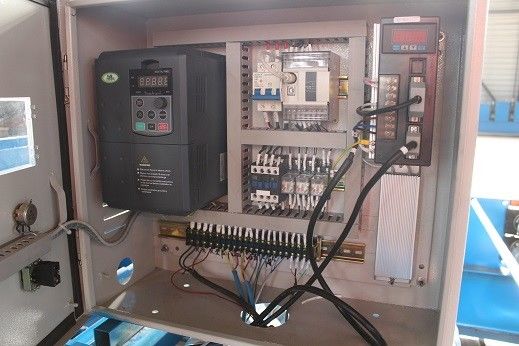

7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	3.5KW
9	Hydraulic Station Power	3.5KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The color steel plate products produced by IBR 900 Trapezoid Hydraulic Shear Roof Roll Forming Machineare widely used in construction household appliances and transportation industries. For the construction industry, they are mainly used for the roof walls and doors of industrial and commercial buildings such as steel structure factories, airports, warehouses, and refrigeration. Fewer color steel plates are used in buildings.

Advantage

The advantages of color steel plates are good corrosion resistance, bright colors, beautiful appearance, convenient processing and forming, and have the advantages of the original strength of steel plates and low cost.

900mm Trapezoid Hydraulic Shear Ibr Roll Forming Machine 0
