Name: Integrated Interchange 3mm Cz Purlin Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دستگاه پرلین CZ
Price: 32,500.00 USD
Availability: InStock

خانه > محصولات > CZ Purlin Roll Forming Machine >

Integrated Interchange 3mm Cz Purlin Roll Forming Machine

3mm cz purlin roll forming machine,integrated cz purlin roll forming machine,interchange cz roll forming machine

integrated cz purlin roll forming machine

interchange cz roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

دستگاه پرلین CZ

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

CZ Interchange یکپارچه رول رول ماشین

مواد خام:

گالوالوم، گالوانیزه

ابعاد (L*W*H):

7000 میلی متر*1500 میلی متر* 1500

ضخامت مواد:

1 میلی متر - 3 میلی متر

وزن:

ظرفیت تولید:

10-20 متر در دقیقه

ولتاژ:

380V/50Hz/3PH

قدرت موتور اصلی::

15 کیلووات

برجسته کردن:

3mm cz purlin roll forming machine,integrated cz purlin roll forming machine,interchange cz roll forming machine

integrated cz purlin roll forming machine

interchange cz roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

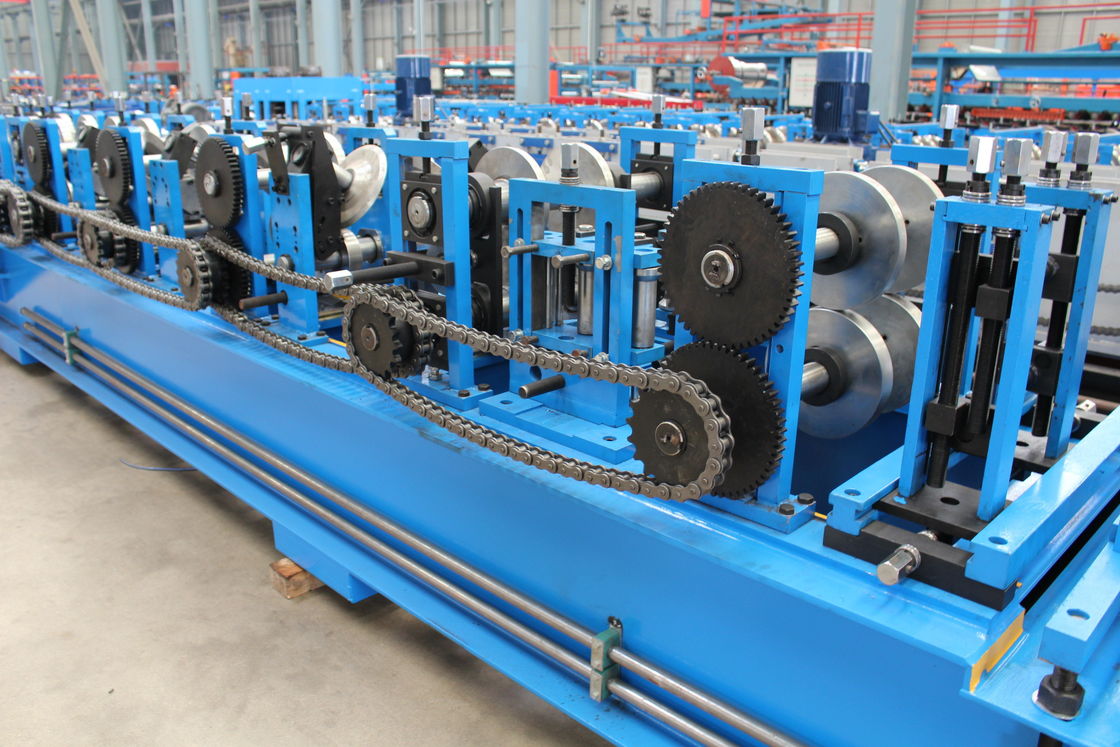

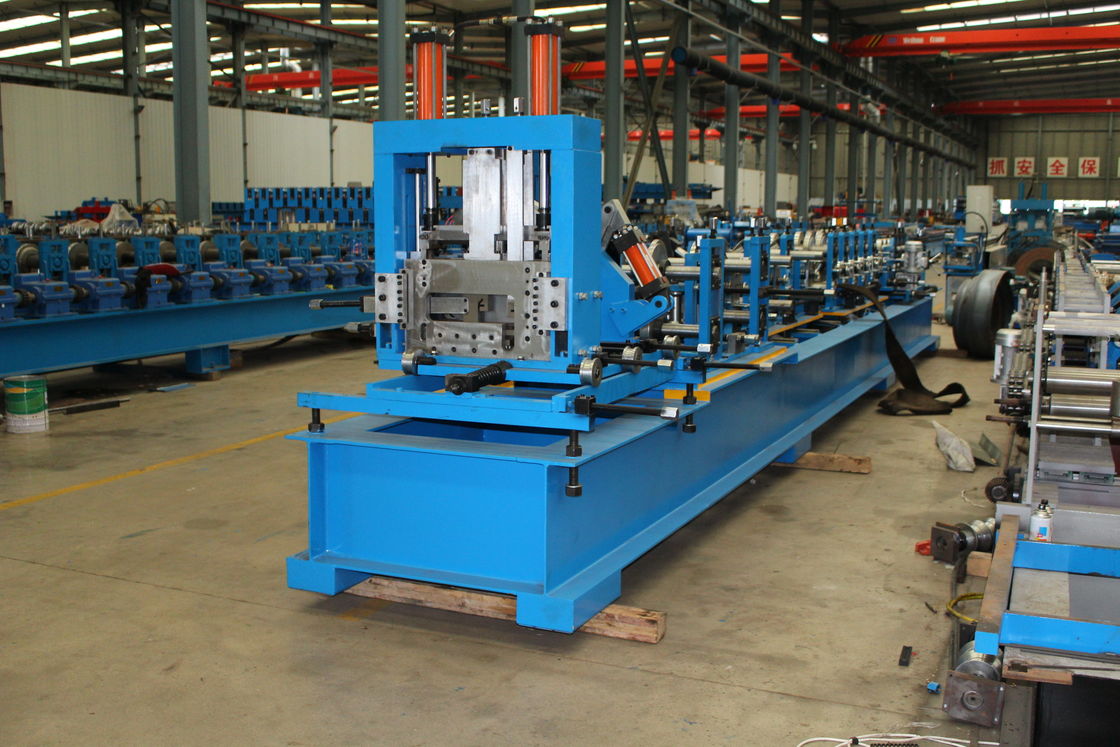

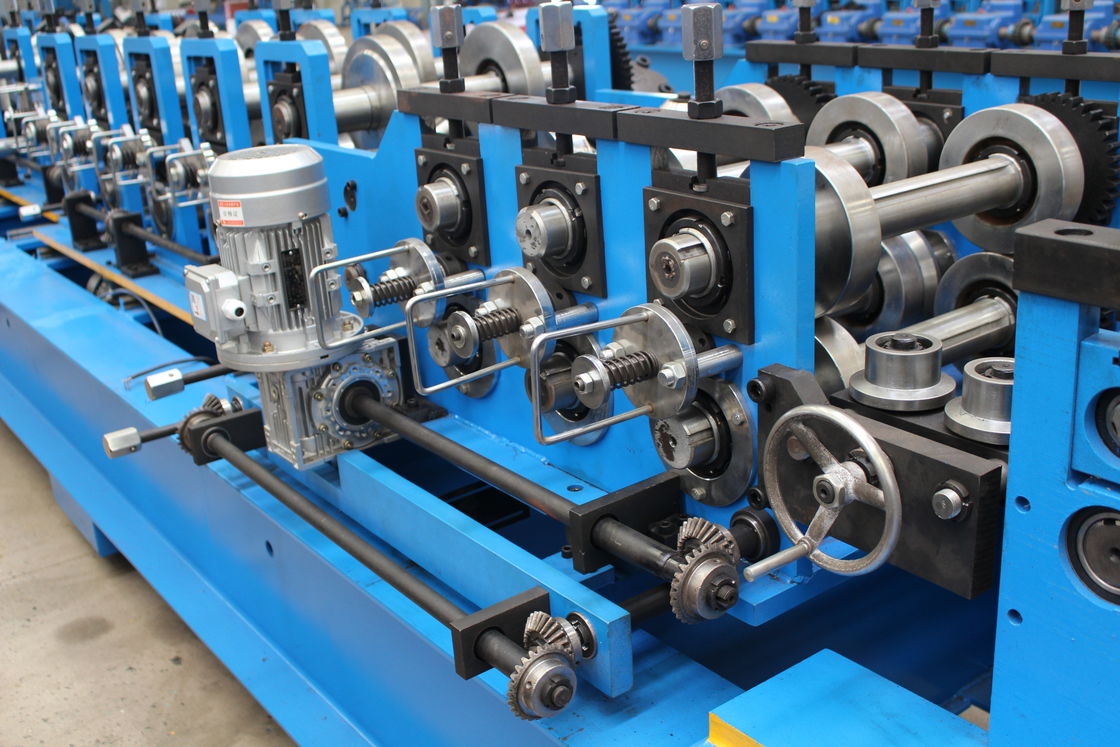

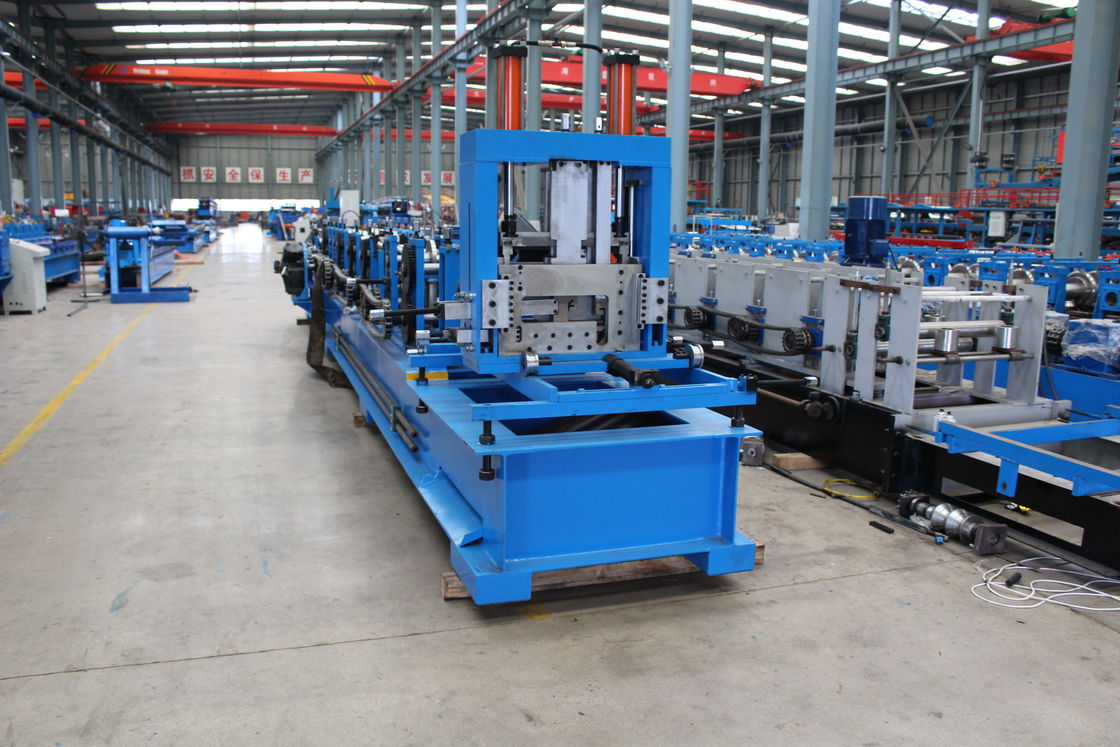

CZ Integrated Interchange Purlin Roll Forming Machine

CZ Channel Adjustable Purlin Roll Forming Machine is make C-type machine and Z-type machine in one.
This equipment can change C Z two type of purlin in short time by manual .

Specification

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm- 3 mm
3	Working Speed	10- 20 m/min ( not including the cutting time)
4	Roller Station	12-16 Raws
5	Dimension (LWH)	7000 mm1000 mm1300 mm
6	Machine Weight	5000 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	360V/60HZ/3PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Mostly applicate in remove room, apartment,Workshops, warehouses, shopping malls and other buildings. C-shaped and Z-shaped steel are used as beams, supports and tie rods. Its safety factor is quite high and its bearing capacity can also meet the requirements. It can also be used on roofs to support roof and wall panels.

Advantage

This adjustment roll forming machine with two different CZ profiles, and can realize the conversion of the two profiles without replacing the forming roller. Very fast, very efficient.
C-purlin has good straightness and good compressive and flexural properties. Z-purlin can be installed in reverse lap to increase the installation strength of connection points.

Integrated Interchange 3mm Cz Purlin Roll Forming Machine 0
