Name: 915mm Galvanized Embossing PLC Metal Deck Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: عرشه 915
Price: 16,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی کاشی سقف >

915mm Galvanized Embossing PLC Metal Deck Roll Forming Machine

915mm deck roll forming machine,915mm metal deck roll forming machine,PLC metal deck roll forming machine

915mm metal deck roll forming machine

PLC metal deck roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

عرشه 915

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول شکل دهی ورق گالوانیزه گالوانیزه عرشه فلزی 915

خدمات پس از فروش ارائه شده است:

مهندسان موجود برای ماشین آلات در خارج از کشور ، پشتیبانی فنی ویدیویی ، پشتیبانی آنلاین ، خدمات تعمیر

مواد خام:

ورق PPGI/گالوانیزه

ولتاژ:

380/50Hz/3PH

سیستم کنترل:

PLC

سرعت:

15-25 متر در دقیقه

ضخامت:

0.3mm-0.8mm

قدرت:

4 کیلو وات

عرض:

915 میلی متر

نیروگاه ایستگاه هیدرولیک:

3 کیلو وات

برجسته کردن:

915mm deck roll forming machine,915mm metal deck roll forming machine,PLC metal deck roll forming machine

915mm metal deck roll forming machine

PLC metal deck roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

25 مجموعه در هر ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

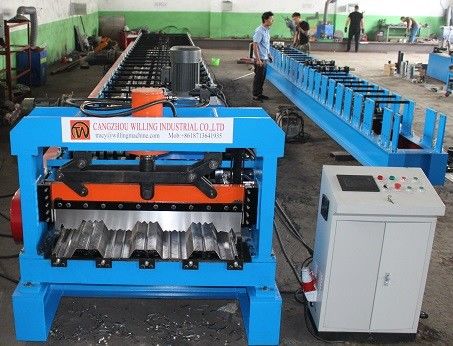

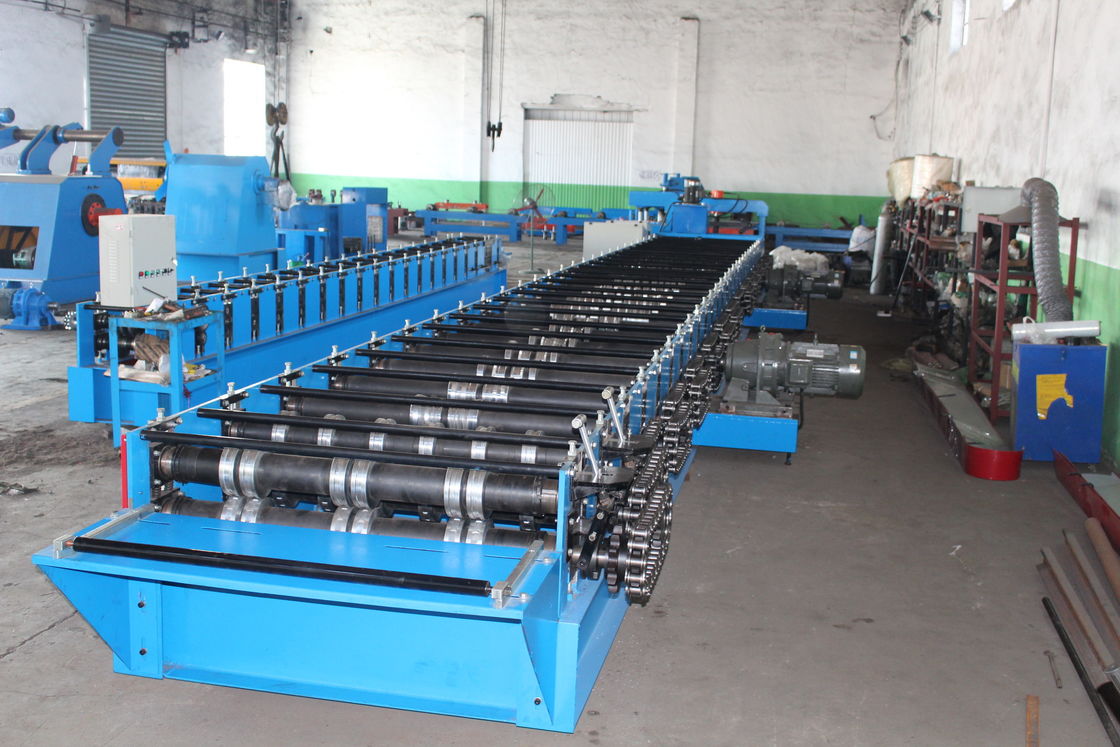

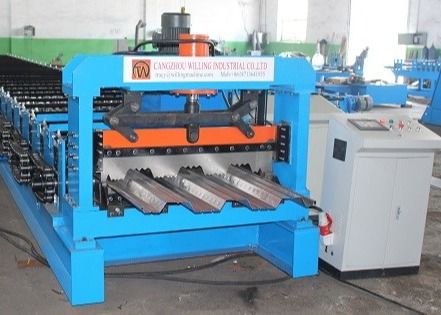

915 Metal Deck Galvanized Embossing Sheet Roll Forming Machine

The floor deck roll forming machine can form the flat sheet into a customized shape, the material of floor deck sheet is galvanized steel.The steel floor deck is widely used in power plants, power equipment companies, automobile exhibition halls, steel structure workshops,cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets,logistics centers, Olympic venues and gymnasium Steel structures.Adapting to the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short time,and can be used to lay the profiled steel plate on multiple floors, and the flow water construction of the layered concrete slab.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	15-25/min
4	Roller Station	18 Raws
5	Dimension (LWH)	7500 mm1200 mm1200 mm
6	Machine Weight	4500 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	3 KW
9	Hydraulic Station Power	3 KW
10	Power Supply	380V/60HZ/3 PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The deck is beautiful in appearance, reasonable in structure, sturdy and durable. It is widely used in various industrial plants, gymnasiums, warehouses, cold storage, containerized mobile board houses, fixed board houses, villas, residential buildings, and various building additions and other large and medium-sized plants. The design and installation have won unanimous praise from users.

Advantage

The open floor deck has light weight, high strength, good load-bearing resistance, simple and fast construction, and convenient assembly. It replaces the traditional model and improves the shortcomings of the traditional model
