Name: Flying Cut System Plc Corrugated Roof Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: برش پرواز
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Flying Cut System Plc Corrugated Roof Roll Forming Machine

plc corrugated roof roll forming machine,versatile corrugated roof roll forming machine,plc corrugated roll former

versatile corrugated roof roll forming machine

plc corrugated roll former

محل منبع:

چین

نام تجاری:

cangzhou willing

گواهی:

CE,ISO

شماره مدل:

برش پرواز

با ما تماس بگیرید

درخواست قیمت

Flying Cut System Plc Corrugated Roof Roll Forming Machine

جزئیات محصول

توضیح محصول:

دستگاه شکل دهی رول سقف راه راه سیستم Flying Cut

ضخامت:

0.3-0.8mm

ماده شفت:

جنس فولاد فورج 45# است

ابعاد (L*W*H):

9500*1550*1500 میلی متر

سیستم کنترل:

PLC

سرعت:

20-25MPM

ولتاژ:

380 ولت 50 هرتز 3PH

وزن:

6 تن

برجسته کردن:

plc corrugated roof roll forming machine,versatile corrugated roof roll forming machine,plc corrugated roll former

versatile corrugated roof roll forming machine

plc corrugated roll former

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

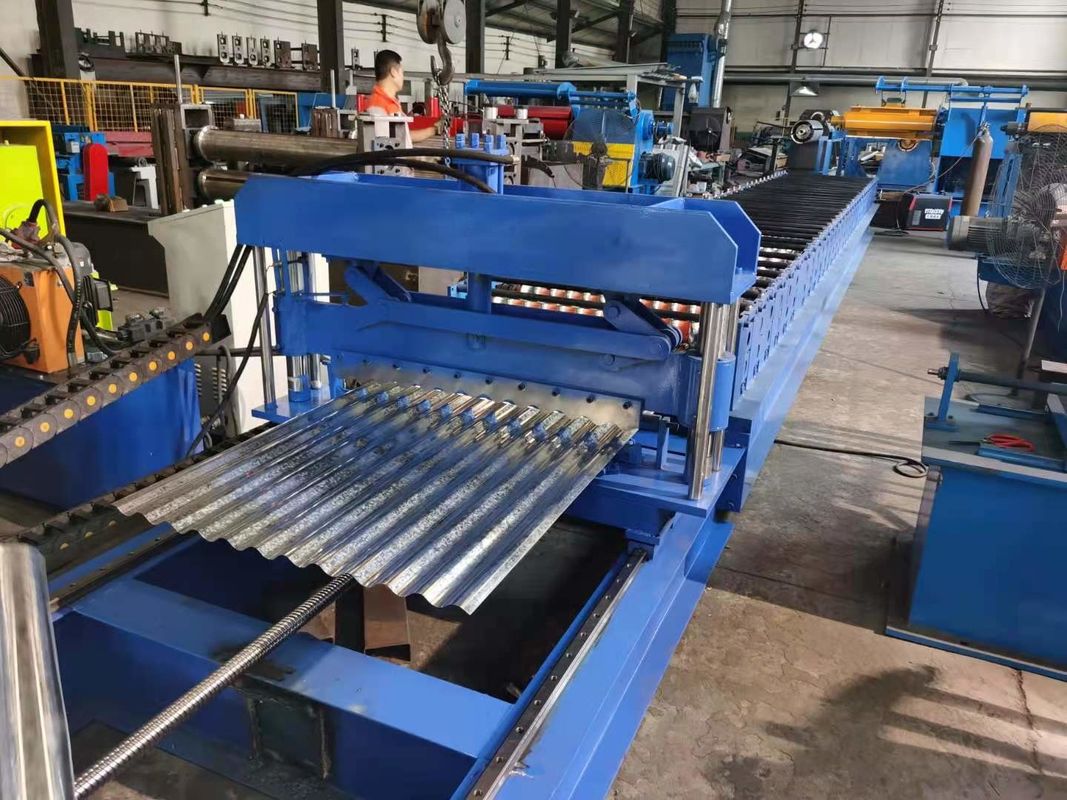

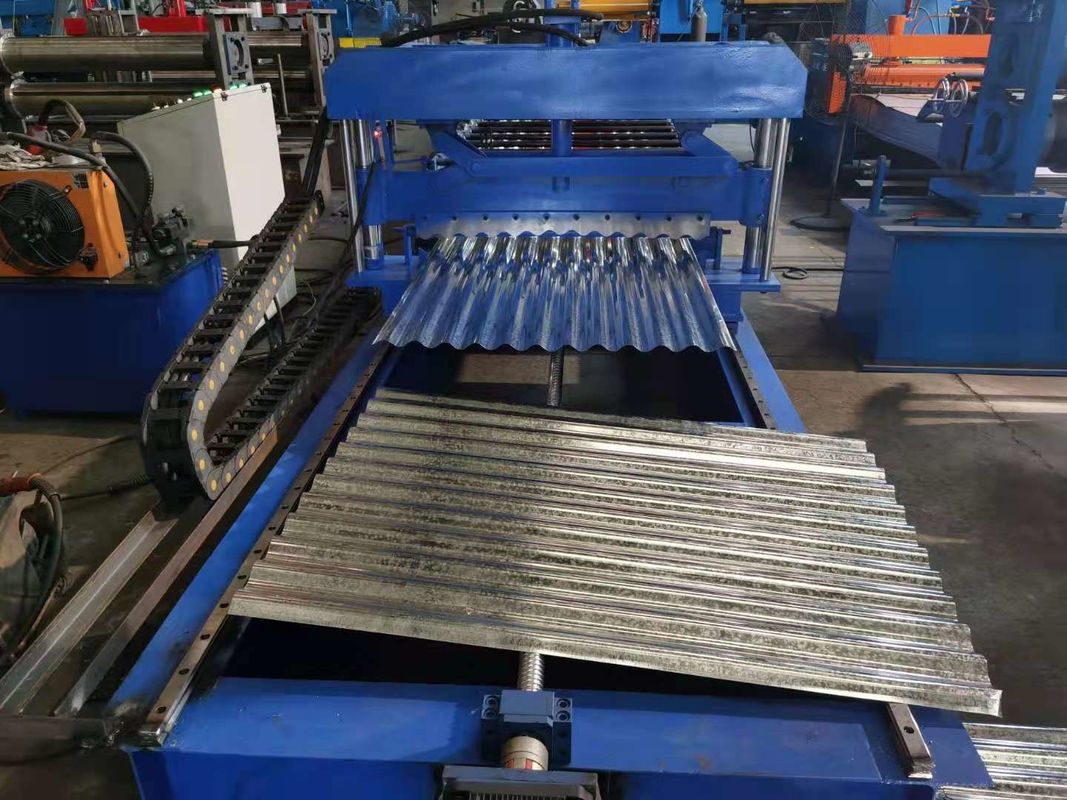

Flying Cut System Corrugated Roof Roll Forming Machine

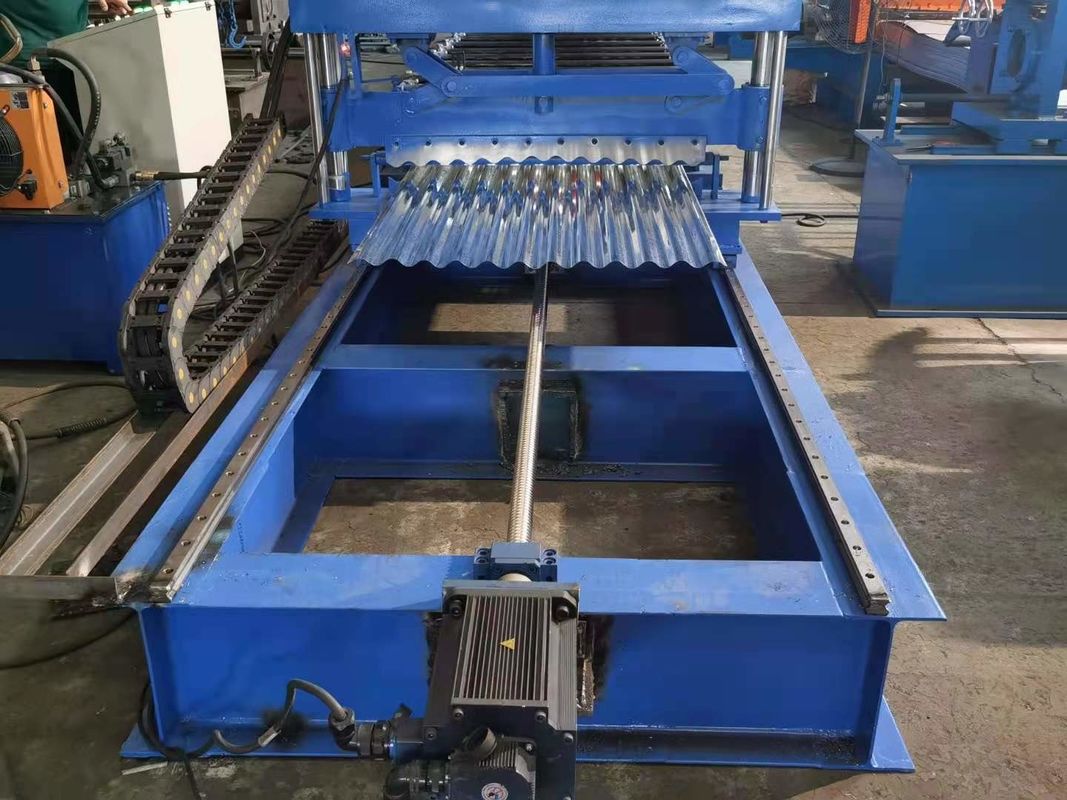

The machine is equipped with a tracking shear system. The flying shear system automatically generates numerical commands to drive the shearing machine according to the cutting length and feed speed. When the "feed length" is close to the "set length" position, the shearing machine will accelerate or decelerate. While accurately positioning the cutting position, the shearing machine and the material realize the speed synchronization to realize the cutting.

Equipment Detailed Parameters:

1	Suitable Material	PPGI (235Mpa)
2	Width of the raw material	1250mm
3	Rows of rollers	15 rows & 16 rows
4	Dimension	950015501200mm
5	Main servo	7.5kw
6	Hydraulic station power	11kw
7	Thickness of raw material	0.3-0.8mm
8	Productivity	20-25m/min
9	Diameter of shaft	￠75mm
10	Voltage	380V 50Hz 3phases
11	Frame	350H steel
112	Middle plate	16mm

Application

The color steel produced by the above machines is suitable for industrial and civil buildings, warehouses, laboratories, roofs, walls, large-span steel structure houses, and construction site guardrails.

Advantage

This flying cut system machine can meet the cutting requirements of users with high precision (error less than ±1mm), high speed, wide width, high efficiency, high reliability, etc., and realize precise positioning and fast response.

Flying Cut System Plc Corrugated Roof Roll Forming Machine 0
