Name: Versatile Metal Embossing PLC Deck Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: عرشه کف
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > ماشین شکل گیری رول کف >

Versatile Metal Embossing PLC Deck Roll Forming Machine

plc deck roll forming machine,embossing deck roll forming machine,versatile metal deck roll forming machine

embossing deck roll forming machine

versatile metal deck roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

عرشه کف

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول عرشه کف منبت فلزی

وضعیت:

جدید

ابعاد (L*W*H):

7500*1700*1600 میلی متر

گارانتی:

1 سال

قدرت (W):

4 کیلو وات

سیستم کنترل:

PLC

برجسته کردن:

plc deck roll forming machine,embossing deck roll forming machine,versatile metal deck roll forming machine

embossing deck roll forming machine

versatile metal deck roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

بهترین قیمت رو بدست بیار

ویدئو

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

بهترین قیمت رو بدست بیار

ویدئو

Decking Flooring Board 1.2mm Floor Tile Making Machine

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

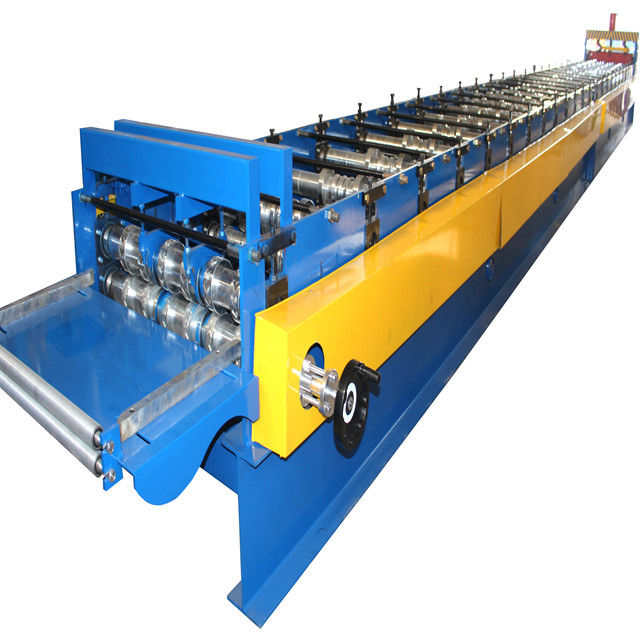

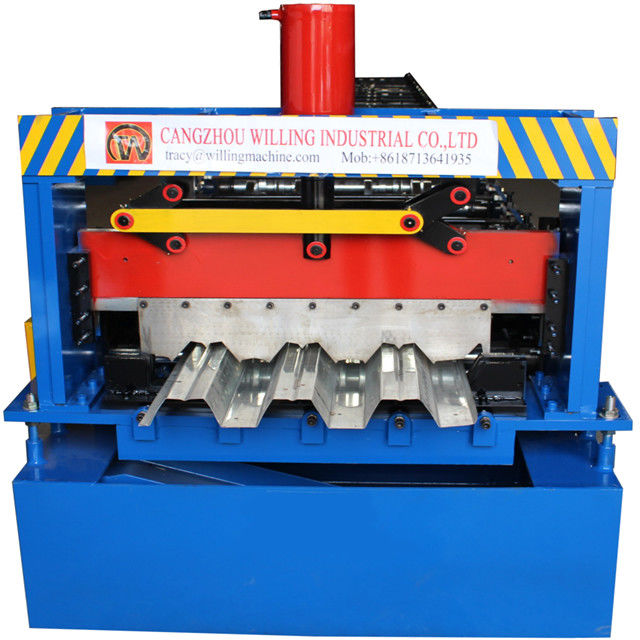

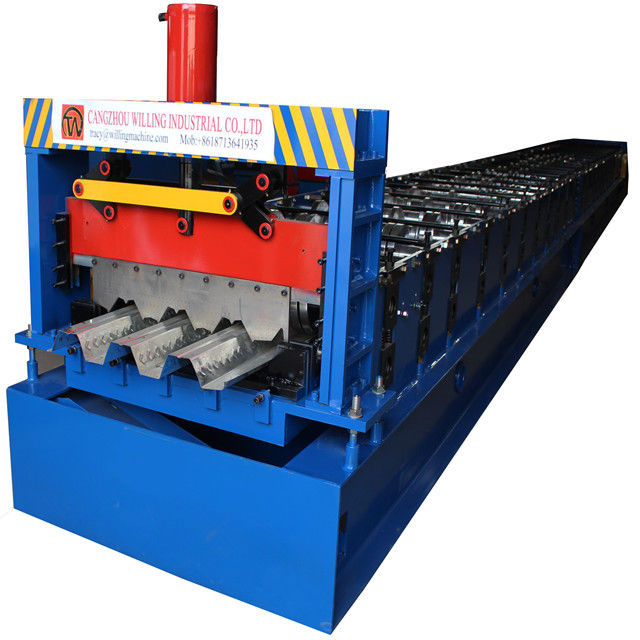

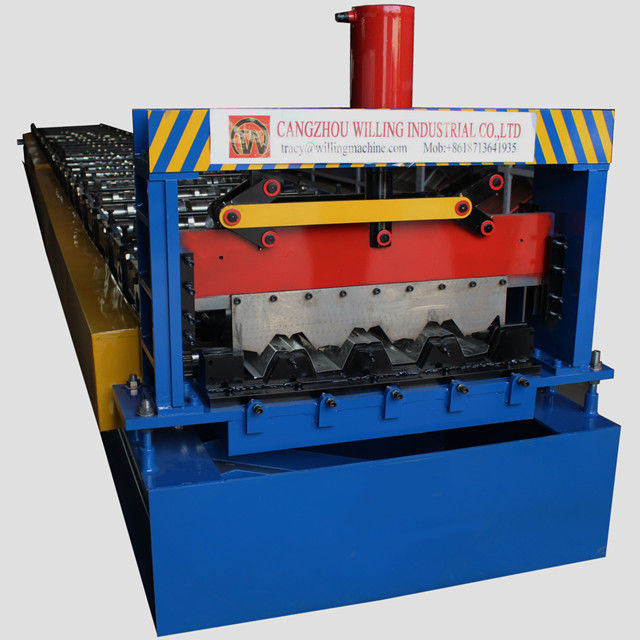

Metal Embossing Floor Deck Roll Forming Machine

It is widely used in multi-story and high-rise steel structures, and is the most widely used floor method in domestic multi-story and high-rise steel structures (profiled steel plate-concrete composite structure). It adopts hot-dip galvanized steel sheet to be formed by rolling and cold bending. Its characteristics are construction, convenience and short construction period, saving steel bars, double as steel formwork, low cost and so on.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	20-30 GA
3	Working Speed	3-5 m/min ( not including the cutting time)
4	Roller Station	16 Raws
5	Dimension (LWH)	7500 mm1500 mm1500 mm
6	Machine Weight	5800 KG
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	7 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	240V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Floor deck tile press, roll forming floor deck has the advantages of light weight, heavy bearing, beautiful appearance, seamless, good, and convenient installation. It has been widely used in power plants, power equipment companies, automobile exhibition halls, and steel Structural workshops, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers, Olympic venues, stadiums and many other steel structure buildings

Advantage

1. Stable performance: The steel plate decoiler has uniform feeding speed and high stability.
2. Work: hydraulic synchronization and hydraulic punching system, improve work efficiency, precision and quality of finished products.
3. Good quality of the finished product: the floor deck produced by it is light in weight, heavy in load, and good in performance.

Versatile Metal Embossing PLC Deck Roll Forming Machine 0
