Name: Punching Hollow Slat PPGL Shutter Door Roll Forming Machine For 0.8mm
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: نوار شاتر
Price: 12000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ درب کرکره ای >

Punching Hollow Slat PPGL Shutter Door Roll Forming Machine For 0.8mm

0.8mm shutter door roll forming machine,ppgl shutter door roll forming machine,rolling shutter door slats roll forming machine

ppgl shutter door roll forming machine

rolling shutter door slats roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

نوار شاتر

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

پانچ شاتر توخالی شاتر درب رول تشکیل دستگاه

مواد خام:

PPGI، GI، PPGL GL

سرعت کار:

10 متر در دقیقه - 20 متر در دقیقه سرعت بالا

ضخامت مواد:

0.3 میلی متر - 0.8 میلی متر

ولتاژ:

380 ولت 50Hz 3Phases

وضعیت:

جدید

برجسته کردن:

0.8mm shutter door roll forming machine,ppgl shutter door roll forming machine,rolling shutter door slats roll forming machine

ppgl shutter door roll forming machine

rolling shutter door slats roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Punching Hollow Shutter Slat Shutter Door Roll Forming Machine

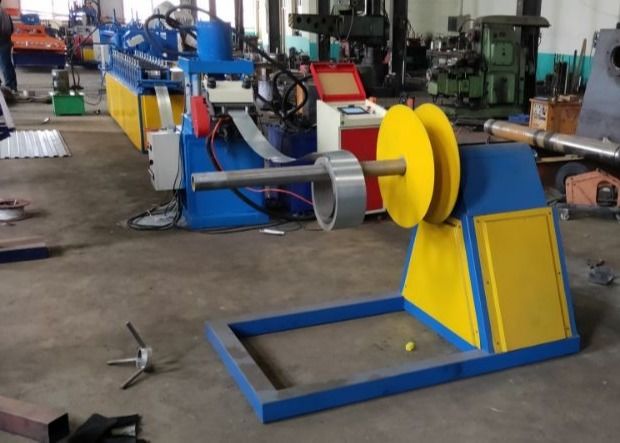

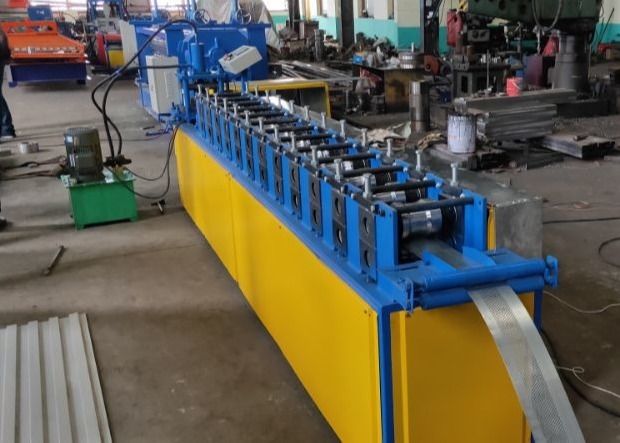

Controlled by the PLC control system, it is composed of an unwinding system, a punching system, a forming system, and a cutting system. It realizes a fully automatic operation mode and an automatic roll forming machine for roller blinds.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.6 mm - 0.9 mm
3	Working Speed	10-20 m/min
4	Roller Station	12 Stations
5	Dimension (LWH)	6500 mm800 mm1200 mm
6	Machine Weight	4000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 1 mm
12	Driving Mode	Gear Wheel
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Rolling shutters are suitable for commercial facades,shopping malls,garage doors, fireproof rolling shutter doors of shopping malls, and hangar doors, factories, mining enterprises and other public places or residences. Especially where the door opening is large, the place where it is inconvenient to install the door body on the ground plays a role of convenient and quick opening.

Advantage

The rolling shutter door has beautiful appearance, compact and advanced structure, convenient installation, sturdy and durable, ventilated and breathable, does not occupy the ground, is flexible and convenient to open and close, and has a good anti-theft function.
