Name: Ppgi Anti Corrosion Waterproof Roof Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: کلاهک ریج
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Ppgi Anti Corrosion Waterproof Roof Roll Forming Machine

waterproof roof roll forming machine,anti corrosion roof roll forming machine,ppgi tile roll forming machine

anti corrosion roof roll forming machine

ppgi tile roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

کلاهک ریج

با ما تماس بگیرید

درخواست قیمت

Ppgi Anti Corrosion Waterproof Roof Roll Forming Machine

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ سقف کاشی ضد خوردگی و ضد آب

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

سیستم کنترل:

PLC

ضخامت:

0.3-0.9 میلی متر

نوع کاشی:

کلاهک ریج

وضعیت:

جدید

رنگ:

طبق درخواست مشتری

قدرت موتور:

4 کیلو وات

برجسته کردن:

waterproof roof roll forming machine,anti corrosion roof roll forming machine,ppgi tile roll forming machine

anti corrosion roof roll forming machine

ppgi tile roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

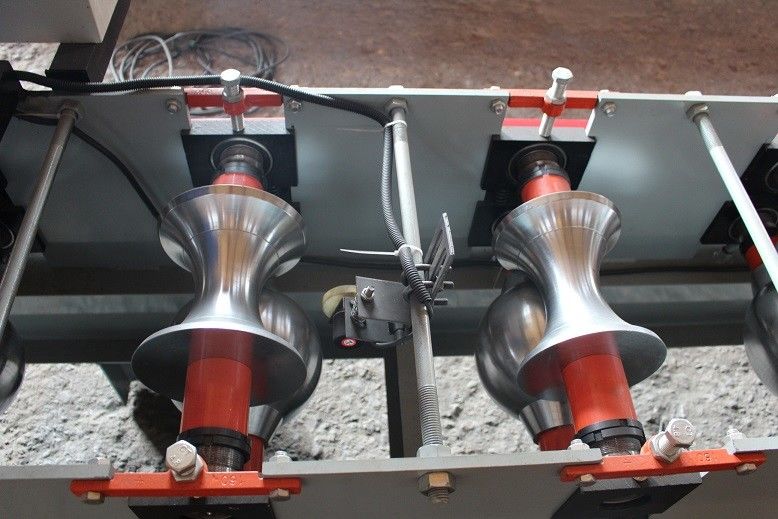

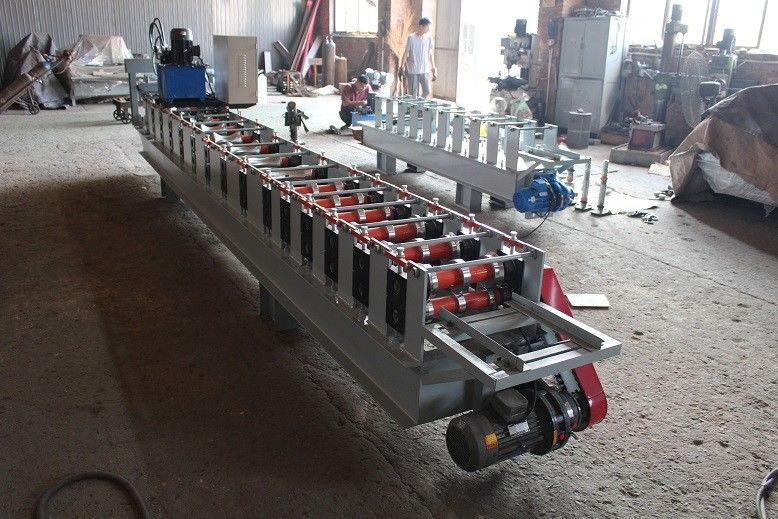

Anti Corrosion And Waterproof Roof Tile Ridge Roof Roll Forming Machine

The ridge tile forming equipment adopts roller forming technology and is used for hydraulic forming with a die. Products are widely used in the roof connection of building color steel plates. The host adopts programmable controller and touch screen control, and the speed is continuously adjustable. Fully automatic length setting and cutting, easy to operate. This machine can be customized according to customer requirements

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.9mm
3	Working Speed	15-20 m/min ( not including the cutting time)
4	Roller Station	12 Raws
5	Dimension (LWH)	58000 mm1200 mm1100 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	4KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

It is widely used in the production of various industrial plants, houses, warehouses and simple steel shed roof ridge tiles, and is beautiful and durable.

Advantage

The ridge tile forming machine can be produced continuously like other roll forming machines, replacing the tedious process of making ridge tiles with a bending machine, saving human resources and greatly reducing labor costs.

Ppgi Anti Corrosion Waterproof Roof Roll Forming Machine 0
