Name: Fully Automatic Tile Fix PPGI Ridge Cap Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: کلاهک ریج
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Fully Automatic Tile Fix PPGI Ridge Cap Roll Forming Machine

ppgi fully automatic roll forming machine,ppgi ridge cap roll forming machine,versatile ridge cap roll forming machine

ppgi ridge cap roll forming machine

versatile ridge cap roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

کلاهک ریج

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه ساخت رول کلاهک ریج فیکس تمام اتوماتیک کاشی فیکس

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

سیستم کنترل:

PLC

ضخامت:

0.3-0.9 میلی متر

نوع کاشی:

کلاهک ریج

وضعیت:

جدید

رنگ:

طبق درخواست مشتری

قدرت موتور:

4 کیلو وات

برجسته کردن:

ppgi fully automatic roll forming machine,ppgi ridge cap roll forming machine,versatile ridge cap roll forming machine

ppgi ridge cap roll forming machine

versatile ridge cap roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

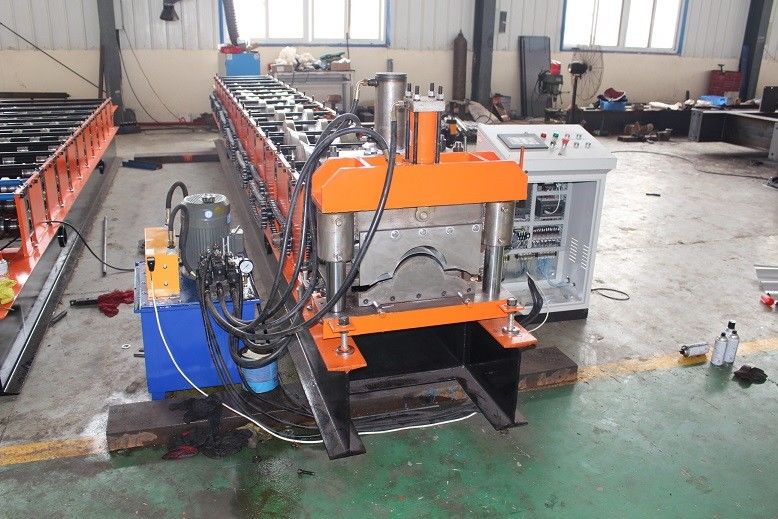

Fully Automatic Tile Fix Ridge Cap Roll Forming Making Machine

The roof tile forming machine adopts imported computer motherboards, relays, and frequency converters. It has high production efficiency and high yield. It has the ability to replace the ridge pad tiles in the past roof ridge tiles and the base part for laying on the corrugated tiles. A structure composed of a crown that covers the ridge tile and forms an appearance on the outer side of the roof tile

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.9mm
3	Working Speed	10-15 m/min ( not including the cutting time)
4	Roller Station	12 Raws
5	Dimension (LWH)	58000 mm1200 mm1100 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	4KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The ridge cap tile forming machine adopts roll forming technology and stamping die hydraulic forming. Products are widely used in building color steel roof connections, such as new rural construction, leveling projects, resorts, villa roofs, etc.

Advantage

The ridge cap tile roof tile forming machine has a reasonable structure and is easy to operate. It is fed, pressed, and cut into plates. Using low-speed metering pump, frequency conversion speed regulation or stepless speed regulation, computer control, accurate measurement. The entire unit automation control system adopts a highly integrated network, which makes the automation system superior in performance.
