Name: Self Lock Ppgi Standing Seam Roll Forming Machine Automatic Control System
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: آرامش زاویه
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Self Lock Ppgi Standing Seam Roll Forming Machine Automatic Control System

self lock standing seam roll former,ppgi standing seam roll forming machine,versatile standing seam roll forming machine

ppgi standing seam roll forming machine

versatile standing seam roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

آرامش زاویه

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

سیستم کنترل اتوماتیک ایستاده Seam Selflock Roll Forming Machine

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم، مس

ولتاژ:

380 ولت 50Hz 3Phases

سیستم کنترل:

PLC

خدمات پس از فروش ارائه شده است:

مهندسین در دسترس برای خدمات ماشین آلات در خارج از کشور، پشتیبانی فنی ویدئویی، پشتیبانی آنلاین، نصب م

گارانتی:

1 سال

برجسته کردن:

self lock standing seam roll former,ppgi standing seam roll forming machine,versatile standing seam roll forming machine

ppgi standing seam roll forming machine

versatile standing seam roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

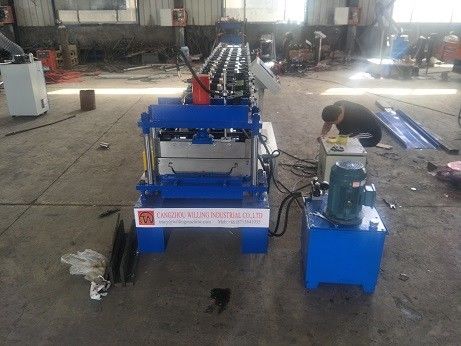

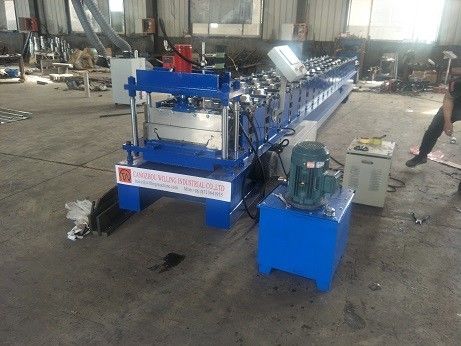

Automatic Control System Standing Seam Selflock Roll Forming Machine

Automatic Control System Standing Seam Selflock Roll Forming Machine equipment unit adopts a highly integrated network, which makes the performance of the automation system superior. At the same time, the equipment also has the advantages of operation, maintenance, maintenance, mechanical debugging, and easy mold replacement.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI
2	Raw Material Thickness	0.3 mm - 0.9 mm
3	Working Speed	8-10 m/min
4	Roller Station	20 Stations
5	Dimension (LWH)	9200 mm800 mm1200 mm
6	Machine Weight	9000 KG
7	Electrical Control System	PLC (can be customized)
8	Drive Motor Power	5.5 KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The profiled board produced by the type Automatic Control System Standing Seam Selflock Roll Forming Machine solves the roof leakage problem of the conventional series of profiled boards. The connection of the profiled board breaks the convention of traditional roof bolt connection. The installation method adopts 45-degree lock bite installation, so that The roof effect is more compact.

Advantage

Our company is equipped with a professional design team. With many years of production experience, we can customize corresponding machines for customers according to customer drawings to meet customers' special requirements for plate, thickness and shape.

Self Lock Ppgi Standing Seam Roll Forming Machine Automatic Control System 0
