Name: Plc Control 0.3mm Double Layer Roll Forming Machine For Metal Steel Roof
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دو لایه
Price: 15000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ دو لایه >

Plc Control 0.3mm Double Layer Roll Forming Machine For Metal Steel Roof

0.3mm double layer roll forming machine,double layer roll forming machine plc,0.3mm double layer roofing sheet machine

double layer roll forming machine plc

0.3mm double layer roofing sheet machine

محل منبع:

چین

نام تجاری:

willing

گواهی:

CE,ISO

شماره مدل:

دو لایه

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

توضیح محصول:

دستگاه رول فرمینگ سقف دو لایه ذوزنقه و لعاب

ضخامت:

0.3-0.8mm

ماده شفت:

جنس فولاد فورج 45# است

ابعاد (L*W*H):

9000*1550*1500 میلی متر

سیستم کنترل:

PLC

سرعت:

15-20 متر در دقیقه

ولتاژ:

380 ولت 50 هرتز 3PH

وزن:

6.5T

برجسته کردن:

0.3mm double layer roll forming machine,double layer roll forming machine plc,0.3mm double layer roofing sheet machine

double layer roll forming machine plc

0.3mm double layer roofing sheet machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

Negotiate

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

ویدئو

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

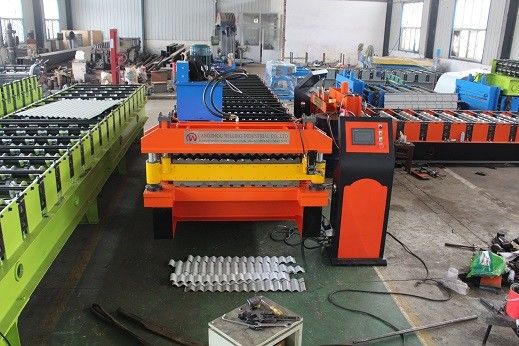

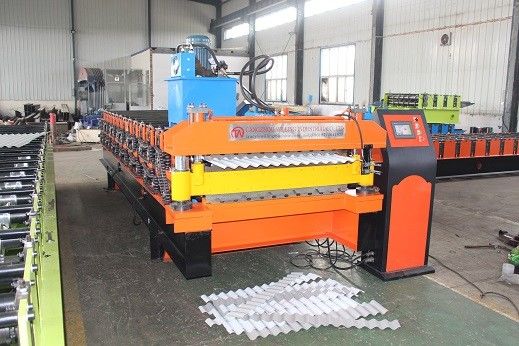

Double-Scissors Double Layer High Speed Roll Forming Machine

The operation of switching between the two layers of the double-layered tile machine is simple. You only need to switch and control each layer separately through the switch button on the electric control cabinet. The power can also be controlled by the clutch separately. The two models are very well combined, with reasonable structure and beautiful appearance. It has the characteristics of saving space and simple operation, and is especially suitable for customers with small sites and on-site construction.
This double layer roll forming machine consists of feeding, forming, and post-forming cutting. The products produced are flat and beautiful in appearance and uniform in paint patterns. They are widely used in industrial and civil buildings, such as workshops, warehouses, machine garages, hangars, stadiums, and exhibition halls. , Theaters and other rooms and walls

Equipment Detailed Parameters:

1	Suitable Material	PPGI (235Mpa)
2	Width of the raw material	1250mm/1220mm
3	Rows of rollers	15 rows & 16 rows
4	Dimension	730015501200mm
5	Main servo	7.5kw
6	Hydraulic station power	11kw
7	Thickness of raw material	0.3-0.9mm
8	Productivity	15-20m/min
9	Diameter of shaft	￠75mm
10	Voltage	380V 50Hz 3phases
11	Frame	350H steel
112	Middle plate	16mm

Application

The products produced by the double roll forming machine have the characteristics of light weight, high strength, heavy bearing capacity and good seismic resistance, and are widely used in the field of multi-high-rise steel structure buildings. Wave type tile press equipment includes: complete machine, PLC computer control system, special shearing equipment, hydraulic system. Features and uses of the double-layered tile machine: The pressed plate rolled by the double-layered tile machine is not only solemn and elegant, but also beautiful and novel, and has a smooth appearance, uniform corrugation, high utilization rate, high strength, and high degree of production automation. , Low cost and durable. The product is mainly suitable for large and medium-sized enterprise civil buildings, such as factory buildings, hangars, hangars, stadiums, exhibition halls, theaters, etc.

Advantage

The double-scissors double-layer tile press uses double-layer design, one machine for two purposes, small floor space, convenient transportation, and cost-saving. It is economical and affordable. Two types of equipment can be combined into one, which saves floor space, and the double-layer cost is much lower than two single-layer machines. The factory has perfect after-sales service, and can design and manufacture according to user requirements, and at the same time guide users, production, installation, debugging and maintenance.
