Name: Triple Layer Hydraulic Shear Roofing Roll Forming Machine Plc Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: سه لایه
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Triple Layer Hydraulic Shear Roofing Roll Forming Machine Plc Control

triple layer roofing roll forming machine,hydraulic shear roofing roll forming machine,plc control roofing roll forming machine

hydraulic shear roofing roll forming machine

plc control roofing roll forming machine

محل منبع:

چین

نام تجاری:

Willing

گواهی:

شماره مدل:

سه لایه

با ما تماس بگیرید

درخواست قیمت

Triple Layer Hydraulic Shear Roofing Roll Forming Machine Plc Control

جزئیات محصول

توضیح محصول:

دستگاه رول فرمینگ سقف کنترل هیدرولیک برشی سه لایه PLC

ضخامت:

0.3-0.8 میلی متر

ماده شفت:

جنس فولاد فورج 45# است

ابعاد (L*W*H):

2500*1750*1650 میلی متر

سیستم کنترل:

PLC

سرعت:

15-20 متر در دقیقه

ولتاژ:

380 ولت 50 هرتز 3PH

وزن:

قدرت موتور:

4 کیلو وات

قدرت موتور پمپ روغن:

4 کیلو وات

برجسته کردن:

triple layer roofing roll forming machine,hydraulic shear roofing roll forming machine,plc control roofing roll forming machine

hydraulic shear roofing roll forming machine

plc control roofing roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

Negotiate

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

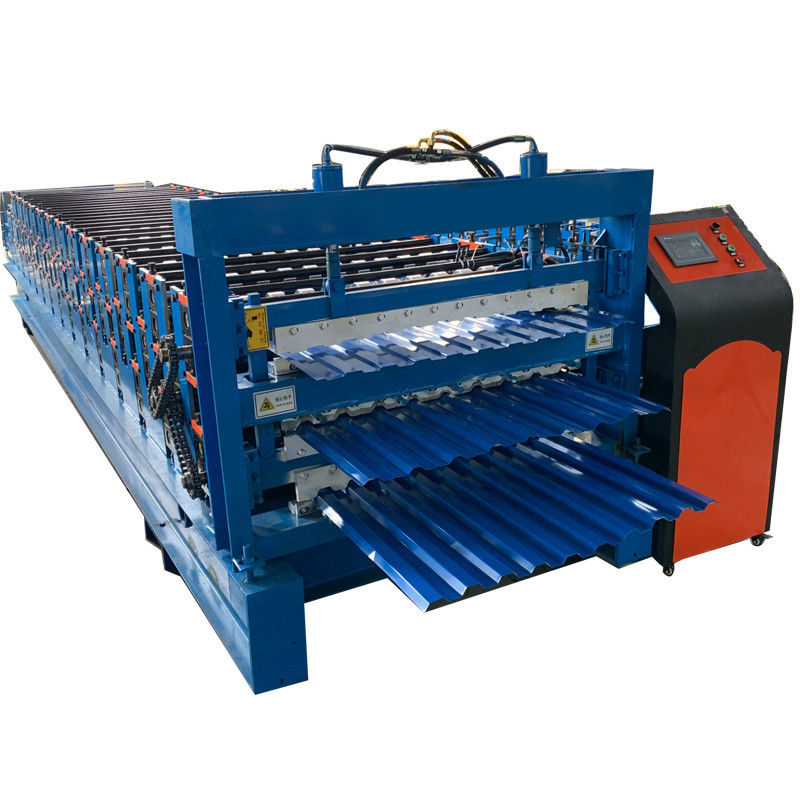

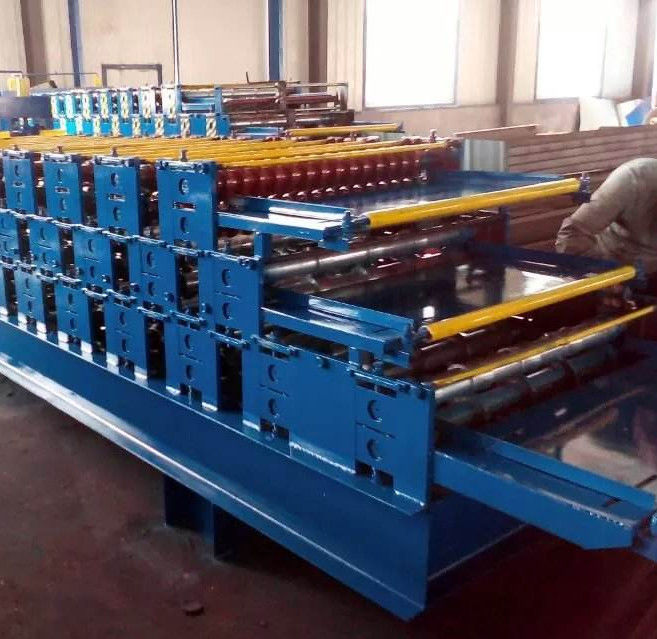

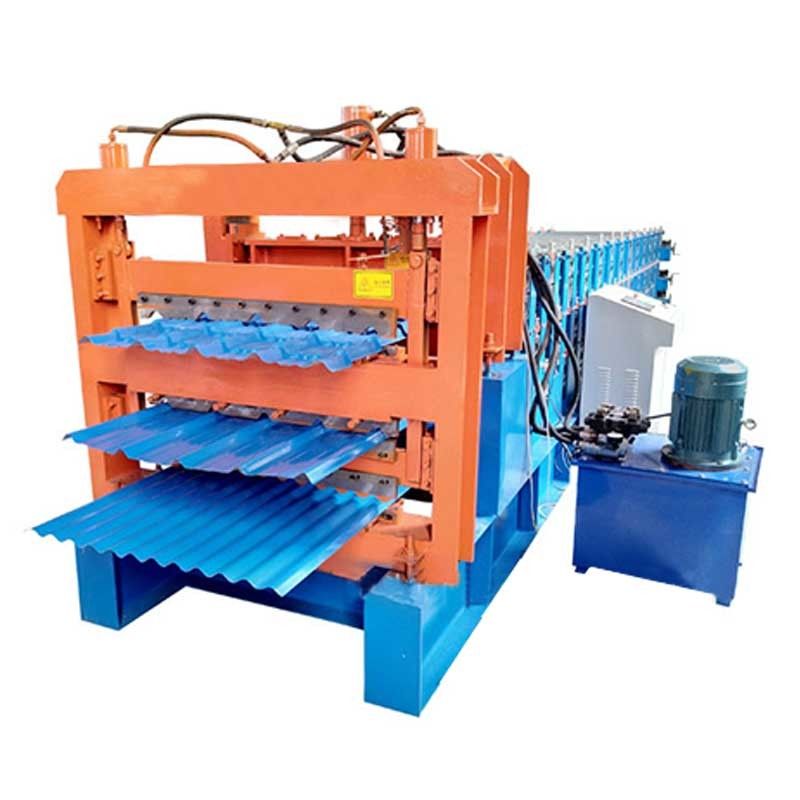

Triple Layer Hydraulic Shear PLC Control Roof Roll Forming Machine

The Triple Layer roof roll forming machine is a Triple Layer color steel tile production equipment with one machine. It can produce glazed tiles, trapezoidal roof tiles and corrugated wall tiles at the same time. One machine can produce three types of color steel roof tile building materials. The machine is composed of a feeding rack, a feeding platform, a pressing host, a leveling roller, and cutting after forming. It is fully automatic computer control and simple and convenient to operate. The value that the triple-layer tile machine can create for users is the core. One machine has multiple functions, which not only saves the area but also reduces the cost. The triple-layer tile machine has a light structure and is especially suitable for customers with small sites and on-site construction.

Equipment Detailed Parameters:

1	Suitable Material	PPGI (235Mpa)
2	Width of the raw material	1250/1250/1220 mm
3	Rows of rollers	15 rows & 16 rows
4	Dimension	231017501650mm
5	Main servo	4kw
6	Hydraulic station power	4kw
7	Thickness of raw material	0.3-0.8mm
8	Productivity	15-20m/min
9	Diameter of shaft	￠75mm
10	Voltage	380V 50Hz 3phases
11	Frame	350H steel
112	Middle plate	16mm

Application

The triple layer roll forming machine is composed of unwinding, forming, and post-forming cutting. The color panels produced by the production are smooth and beautiful, uniform paint pattern, high strength, and durable. They are widely used in industrial and civil buildings, such as factories, warehouses, stadiums, exhibition halls, Theaters and other rooms.

Advantage

Our company's three-layer tile machine adopts high-number pulse input function. Due to the excellent high-number input performance, the AB phase has strong anti-interference ability. The fixed value interrupt function is also used to ensure accuracy.
The multi-layer model of the three-layer tile machine can be designed and customized according to user requirements, flexible and changeable, and is loved by the majority of users
