Name: 686/762 Corrugated Profile Double Layer Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دو لایه
Price: 16,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی کاشی سقف >

686/762 Corrugated Profile Double Layer Roll Forming Machine

versatile double layer roll forming machine,686mm double layer roll forming machine,profile corrugated roll former

686mm double layer roll forming machine

profile corrugated roll former

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

دو لایه

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول شکل دهی پروفیل دو لایه 686/762

خدمات پس از فروش ارائه شده است:

مهندسان موجود برای ماشین آلات در خارج از کشور ، پشتیبانی فنی ویدیویی ، پشتیبانی آنلاین ، خدمات تعمیر

مواد خام:

ورق PPGI/گالوانیزه

ولتاژ:

380/50Hz/3PH

سیستم کنترل:

PLC

سرعت:

15-20 متر در دقیقه

ضخامت:

0.3 میلی متر-0.8 میلی متر

قدرت:

3 کیلو وات

عرض مواد خام:

925 میلی متر

نیروگاه ایستگاه هیدرولیک:

3 کیلو وات

برجسته کردن:

versatile double layer roll forming machine,686mm double layer roll forming machine,profile corrugated roll former

686mm double layer roll forming machine

profile corrugated roll former

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

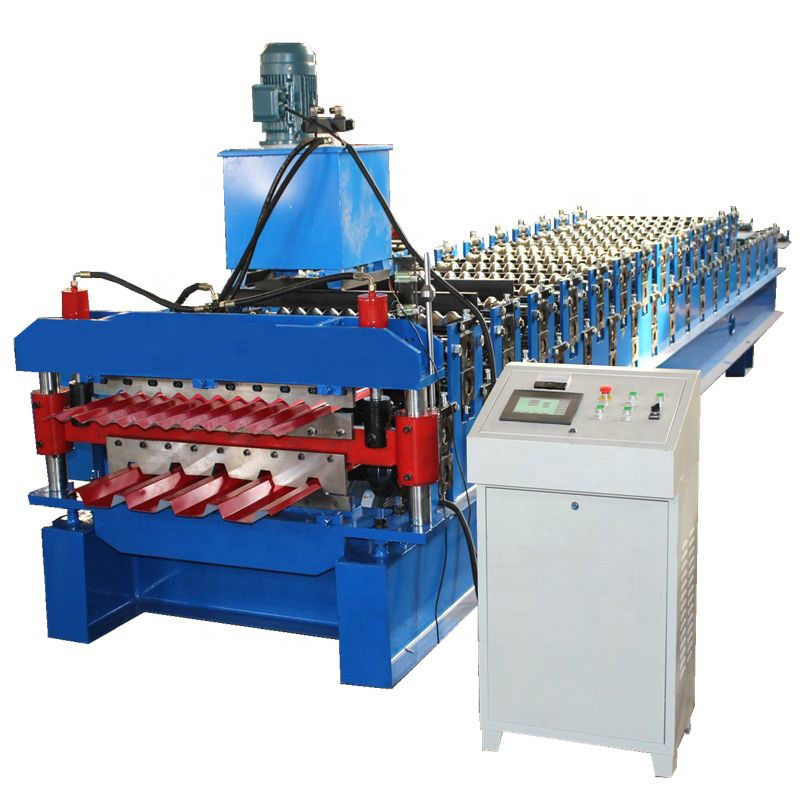

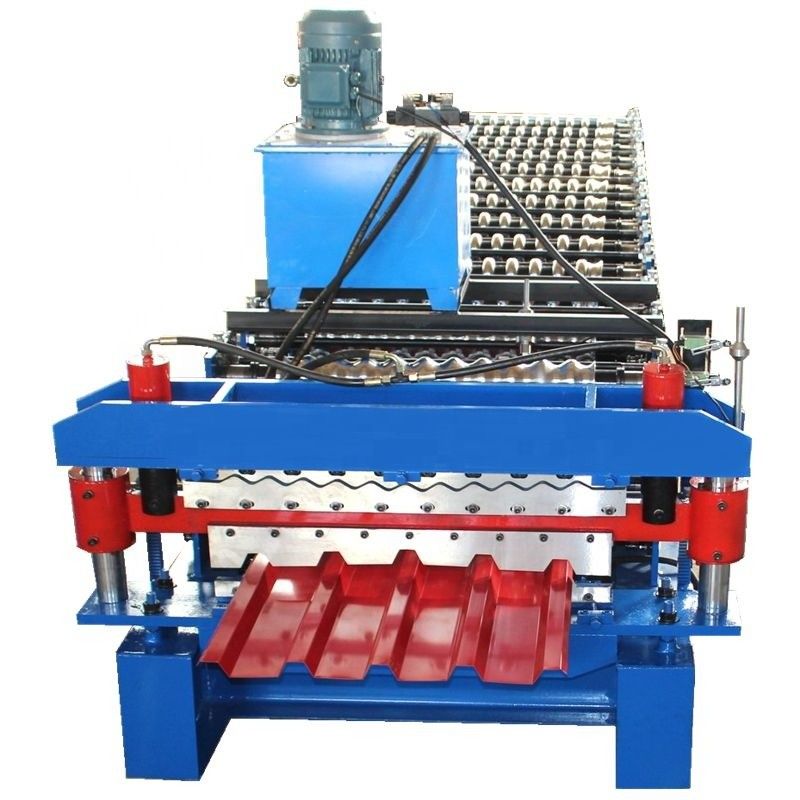

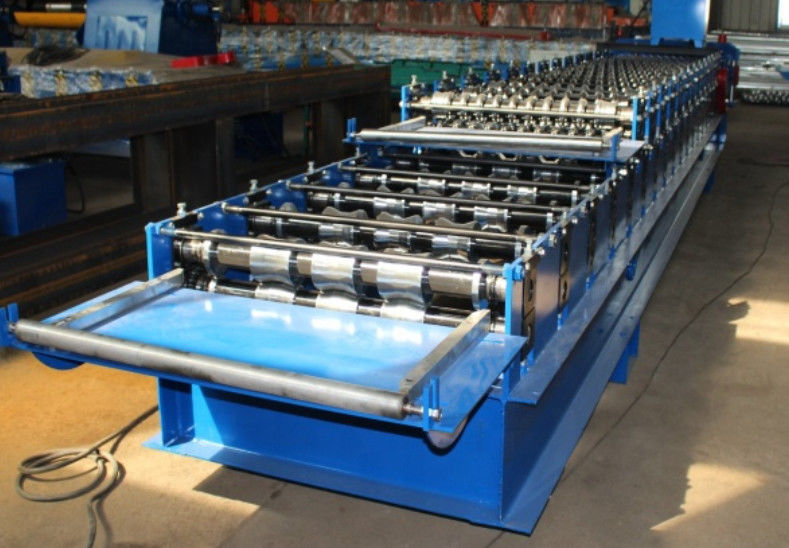

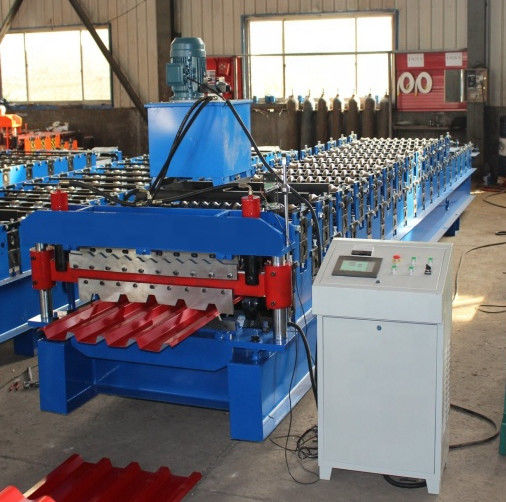

686/762 Double Layer Corrugated Profile Roll Forming Machine

One piece of double-laminated tile machine can press two types of tiles. The biggest advantage is that it has a small footprint, saves space, and is automatically controlled by a computer. However, only one type of plate can be produced during the operation, which is equivalent to two. Single board computer.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	15-20/min
4	Roller Station	18/16 Raws
5	Dimension (LWH)	8500 mm1200 mm1200 mm
6	Machine Weight	4800 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	3 KW
9	Hydraulic Station Power	3 KW
10	Power Supply	380V/60HZ/3 PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

This type of tile is suitable for interior and exterior wall decoration of industrial and civil buildings, warehouses, special buildings, roofs, walls and large-span steel structure houses. The raw material can be GI, GL, PPGI, PPGL, aluminum plate, etc., which has the function of anti-corrosion and acid resistance, and the service life is 10-15 years

Advantage

This version is mainly used for roof, wall and internal and external wall decoration of buildings, warehouses, special buildings, long-span steel structure houses, etc. It has the characteristics of light weight, high strength, rich colors, convenient and fast construction, earthquake resistance and so on Fireproof, rainproof and long service life. Functions such as protection free have been widely used.

686/762 Corrugated Profile Double Layer Roll Forming Machine 0
