Name: Metal Roofing Corrugated Steel Plc Wall Panel Roll Forming Machine Double Layer
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دو لایه
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Metal Roofing Corrugated Steel Plc Wall Panel Roll Forming Machine Double Layer

plc wall panel roll forming machine,versatile wall panel roll forming machine,versatile metal roll forming machine

versatile wall panel roll forming machine

versatile metal roll forming machine

محل منبع:

چین

نام تجاری:

cangzhou willing

گواهی:

CE,ISO

شماره مدل:

دو لایه

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

توضیح محصول:

دستگاه رول فرمینگ دو لایه

ضخامت:

0.25-0.8 میلی متر

ماده شفت:

جنس فولاد فورج 45# است

ابعاد (L*W*H):

9500*1550*1500 میلی متر

سیستم کنترل:

PLC

سرعت:

15-20 متر در دقیقه

ولتاژ:

380 ولت 50 هرتز 3PH

وزن:

6.5T

برجسته کردن:

plc wall panel roll forming machine,versatile wall panel roll forming machine,versatile metal roll forming machine

versatile wall panel roll forming machine

versatile metal roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

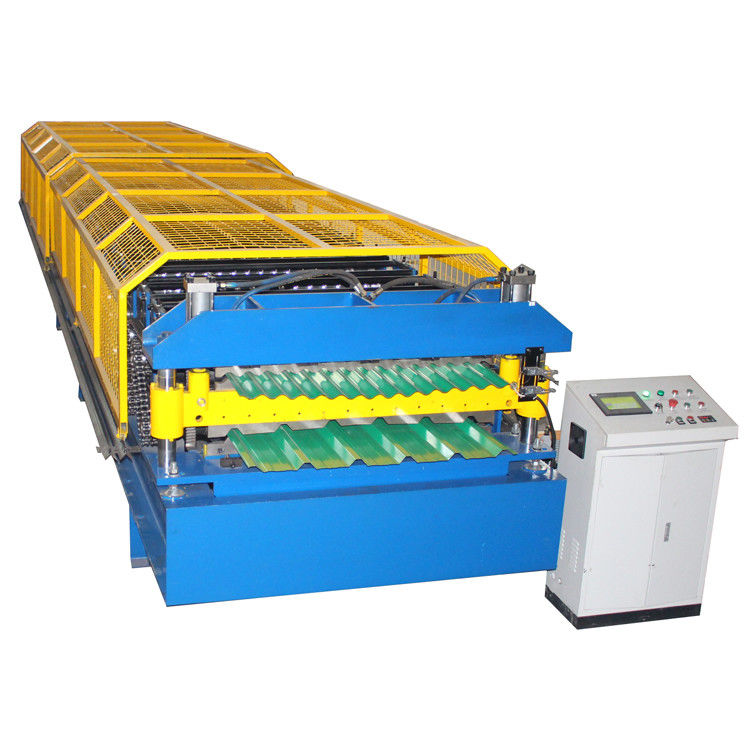

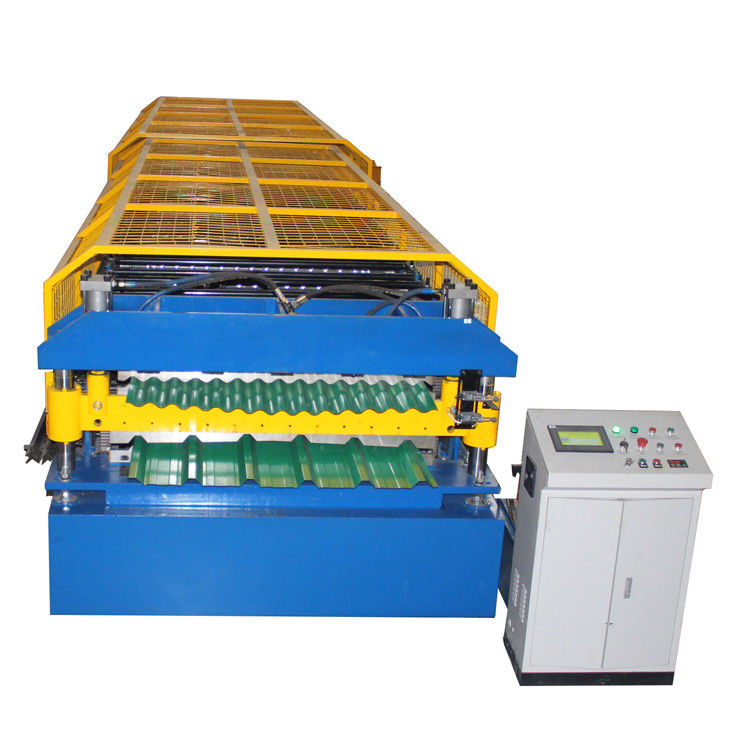

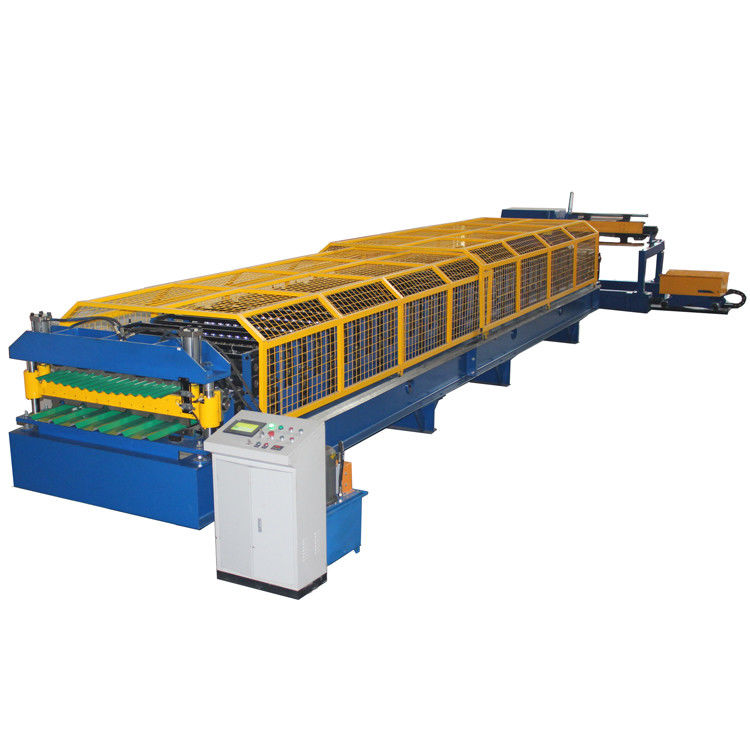

Metal Roofing Corrugated Steel Wall Panel Double Layer Roll Forming Machine

In order to meet the needs of forming two sections on a limited site area, and to quickly change products, the double-layer rolling mill of the tile press is also designed and manufactured. This double-layer color steel tile forming machine is installed in the high or low frame Change between.

Equipment Detailed Parameters:

1	Suitable Material	PPGI (235Mpa)
2	Width of the raw material	1250mm
3	Rows of rollers	15 rows & 16 rows
4	Dimension	730015501200mm
5	Main servo	7.5kw
6	Hydraulic station power	11kw
7	Thickness of raw material	0.3-0.8mm
8	Productivity	15-20m/min
9	Diameter of shaft	￠75mm
10	Voltage	380V 50Hz 3phases
11	Frame	350H steel
112	Middle plate	16mm

Application

The double-layer tile machine is economical and can combine two types of equipment into one. In other words, it saves floor space, and the equipment cost of a double-layer tile machine is much lower than that of two single-layer machines. The profiled plate rolled by the double-layer tile machine is not only solemn and elegant, but also beautiful and novel. And the appearance is flat, the pressure is uniform, and the utilization rate is high.

Advantage

The double-layer tile machine equipment adopts PLC control system and electric control system, which can be displayed on the touch screen. The operation is simple and easy to use. The double-layer tile machine adopts advanced automatic control software. To achieve production information management, in order to make the performance of the automation system more superior, the color steel tile equipment also has the advantages of operation, maintenance, maintenance, mechanical debugging, and convenient mold replacement.

Metal Roofing Corrugated Steel Plc Wall Panel Roll Forming Machine Double Layer 0
