Name: Interchangeable Galvalume Cz Purlin Machine Hydraulic Cutting Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: جنس پارچه CZ
Price: 32,500.00 USD
Availability: InStock

خانه > محصولات > CZ Purlin Roll Forming Machine >

Interchangeable Galvalume Cz Purlin Machine Hydraulic Cutting Automatic

interchangeable cz purlin machine,galvalume cz purlin machine,galvalume roll forming cz purlin machine

galvalume cz purlin machine

galvalume roll forming cz purlin machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

جنس پارچه CZ

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه برش هیدرولیک اتوماتیک قابل تعویض CZ Purlin Roll Forming Machine

مواد خام:

گالوالوم، گالوانیزه

ابعاد (L*W*H):

7000 میلی متر*1500 میلی متر* 1500

ضخامت مواد:

1 میلی متر - 3 میلی متر

وزن:

ظرفیت تولید:

10-25 متر در دقیقه

ولتاژ:

380V/50Hz/3PH

قدرت موتور اصلی::

15 کیلووات

برجسته کردن:

interchangeable cz purlin machine,galvalume cz purlin machine,galvalume roll forming cz purlin machine

galvalume cz purlin machine

galvalume roll forming cz purlin machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

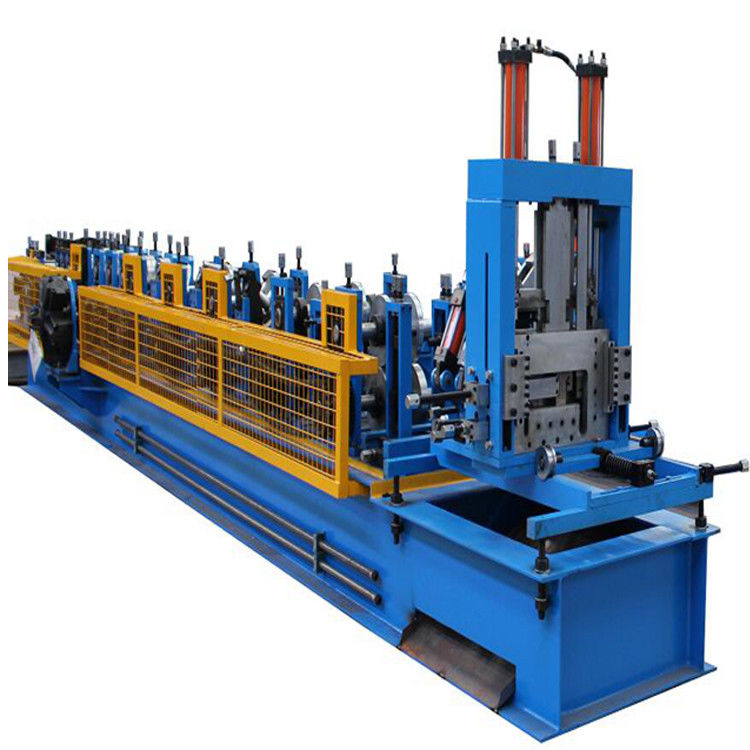

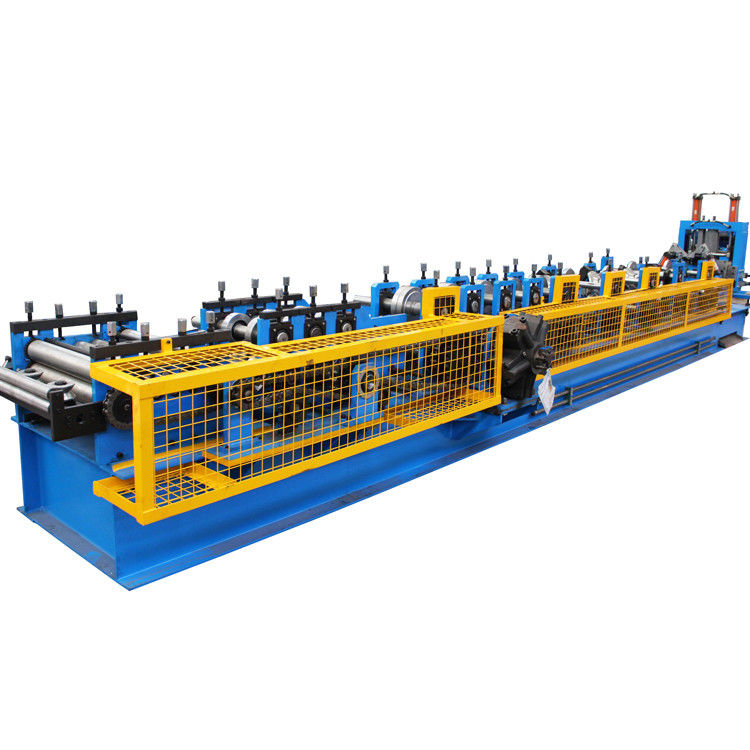

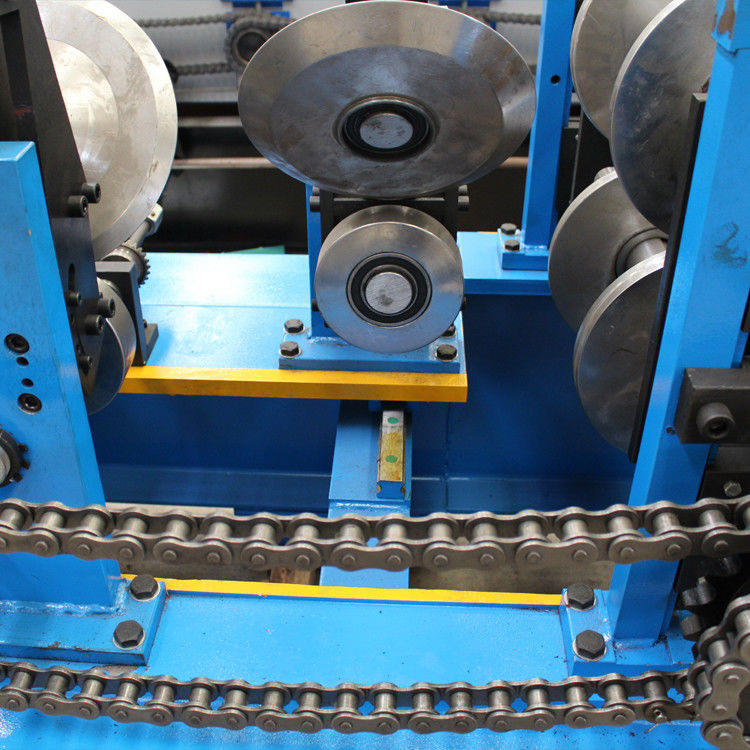

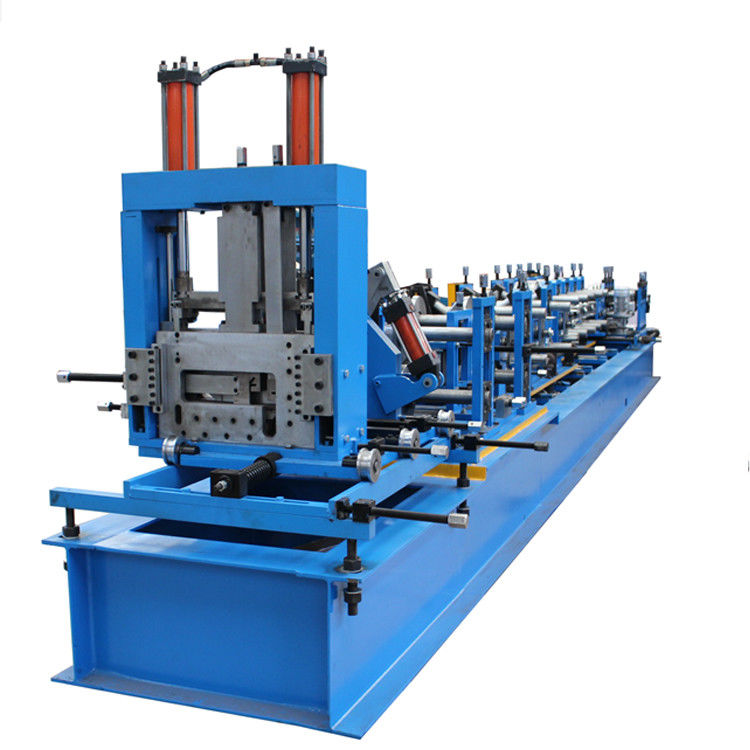

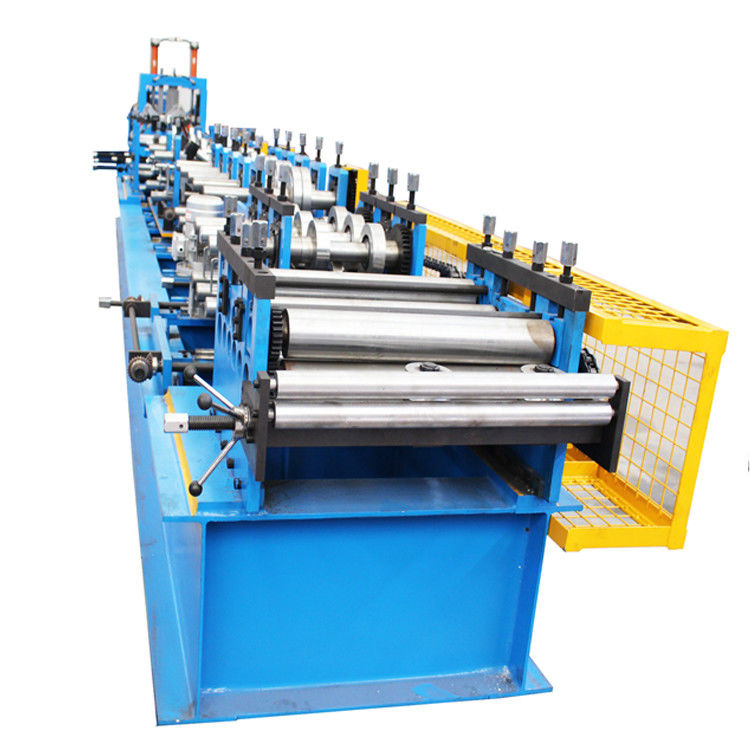

Hydraulic Cutting Automatic Interchangeable CZ Purlin Roll Forming Machine

The purlins are now commonly used in the construction industry, with different shapes and sizes, the most commonly used are C purlin and Z purlin. this machine can produce both C and Z products on the same machine. It only takes 40 minutes to change between C and Z. and the product size range 80mm and 300mm

Specification

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm- 3 mm
3	Working Speed	15- 20 m/min ( not including the cutting time)
4	Roller Station	12-16 Raws
5	Dimension (LWH)	7000 mm1000 mm1300 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	360V/60HZ/3PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

C, Z type roll forming machine products are widely used in structural building purlins, wall beams and roofs, etc., and can also be combined into lightweight roof trusses, brackets and other building components. Due to its relatively high safety factor, the load-bearing capacity can meet most needs in movable buildings. Usually C-shaped and Z-shaped steel are used as beams, supports and tie rods. At the same time, it can also be used on the roof to support roof panels and wall panels.

Advantage

fully automatic CZ interchange purlin machine has a fully automatic electrical control system and error alarm device, which can effectively ensure the safety and stability of the production line. The equipment is driven by a geared motor, with frequency conversion speed regulation, speed regulation, and fixed-length positioning. It has also become more accurate and reliable.
