Name: Semicircle Indentation Ridge Shape Roof Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: کلاهک ریج
Price: 16,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی کاشی سقف >

Semicircle Indentation Ridge Shape Roof Roll Forming Machine

ridge shape roof roll forming machine,semicircle indentation roof roll forming machine,ppgi roof sheet forming machine

semicircle indentation roof roll forming machine

ppgi roof sheet forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

کلاهک ریج

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ سقفی ریج

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

سیستم کنترل:

PLC

ضخامت:

0.25-0.8 میلی متر

نوع کاشی:

کلاهک ریج

وضعیت:

جدید

رنگ:

طبق درخواست مشتری

قدرت موتور:

4 کیلو وات

دقت برش:

± 2 میلی متر

مواد کاتر:

Cr12 Mov HRC 58-62

برجسته کردن:

ridge shape roof roll forming machine,semicircle indentation roof roll forming machine,ppgi roof sheet forming machine

semicircle indentation roof roll forming machine

ppgi roof sheet forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

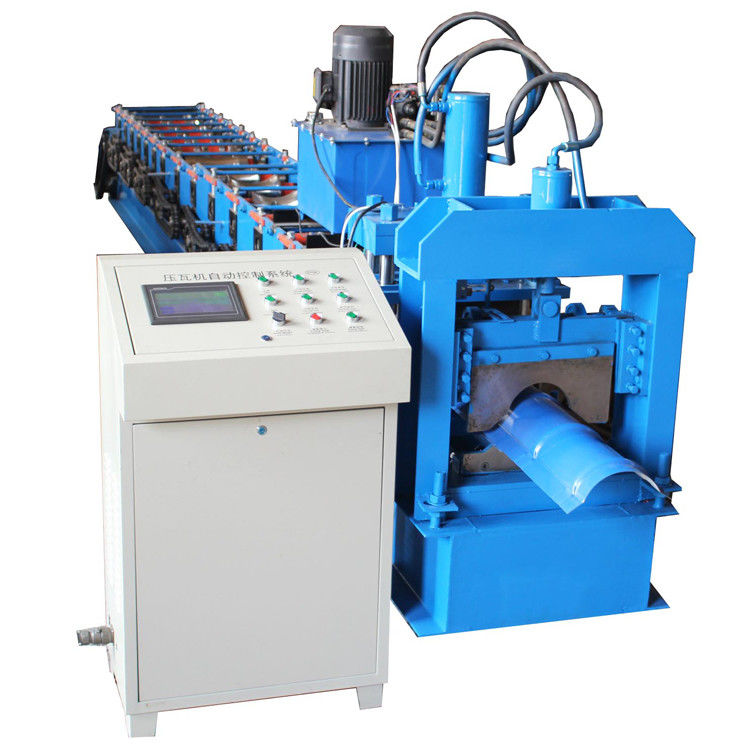

semicircle Indentation roof ridge shape roll forming machine

The ridge cap roll forming machine can roll metal ridges and is mainly used for colored roof tiles. The entire roll forming production line is composed of uncoiler (mainly composed of uncoiler and its base), gear rigging, rolling mill stand and main machine, pressurizing system, cutting equipment, hydraulic system, control system, and product support.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	20-30 m/min ( not including the cutting time)
4	Roller Station	12 Raws
5	Dimension (LWH)	58000 mm1200 mm1100 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	4KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The finished products of metal roof cover forming machine roof tile building materials machinery are widely used in various industrial plants, garages, warehouses, apartments, exhibitions, home construction, shopping malls, etc.

Advantage

ridge cap steel tiles has light weight, high strength, good waterproofness, easy and quick installation, and can be widely used in roofs of villas, urban flat-to-slope, and tourist attractions. it can maintain the beauty of the roof without editing and repairing. The arc-shaped color steel roof ridge tile is more complete on the basis of the hand-made roof ridge tile. It is a better partner for the color steel glazed tile or color steel plate.
