0.25mm Semicircle Ridge Cap Metal Tile Forming Machine Automatic Plc Control

0.25mm metal tile forming machine,plc control metal tile forming machine,semicircle ridge cap tile forming machine

plc control metal tile forming machine

semicircle ridge cap tile forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی کاشی فلزی درپوش ریج

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

ضخامت:

0.25-0.8 میلی متر

نوع کاشی:

کلاهک ریج

رنگ:

طبق درخواست مشتری

قدرت موتور:

4 کیلو وات

دقت برش:

± 2 میلی متر

مواد کاتر:

Cr12 Mov HRC 58-62

درجه اتوماسیون:

خودکار

ولتاژ:

3 فاز 380 ولت 50 هرتز یا طبق نیاز شما

برجسته کردن:

0.25mm metal tile forming machine,plc control metal tile forming machine,semicircle ridge cap tile forming machine

plc control metal tile forming machine

semicircle ridge cap tile forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

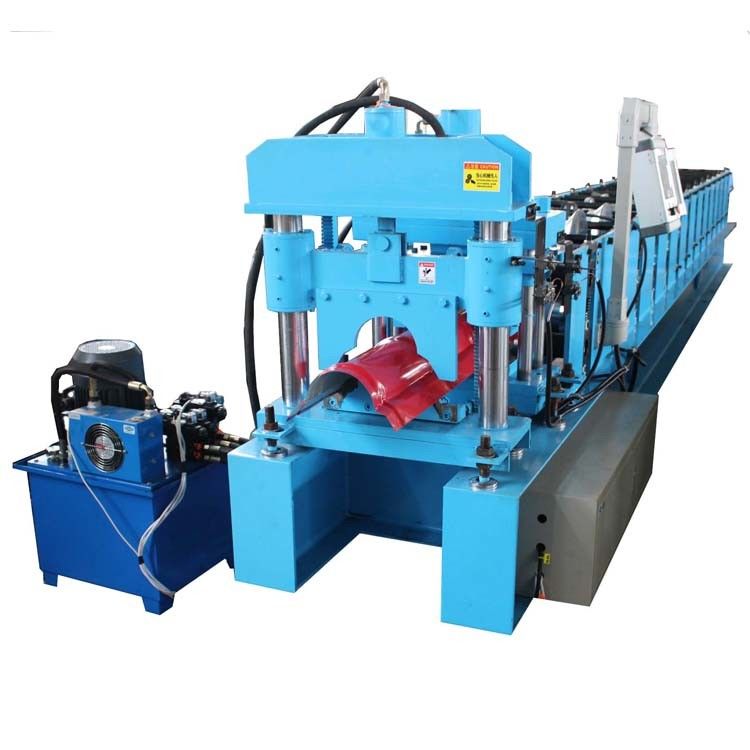

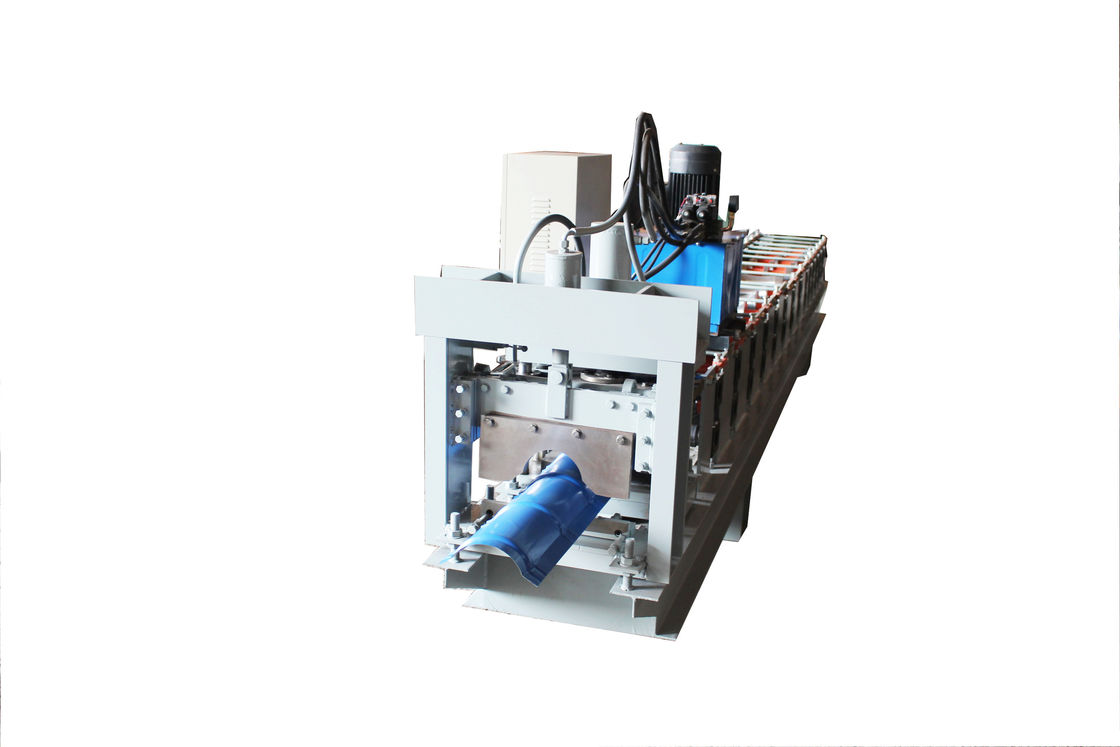

Semicircle Ridge Cap Metal Tile Forming Machine Automatic

The ridge cap roll forming machine can roll metal ridges and is mainly used for colored roof tiles. The entire roll forming production line is composed of uncoiler (mainly composed of uncoiler and its base), gear rigging, rolling mill stand and main machine, pressurizing system, cutting equipment, hydraulic system, control system, and product support.

Specification

Material Thickness	0.3-0.8 mm
Working Speed	8-15 m/min
Frame	welded with 350H section steel
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Main Motor Power	4 KW
Electrical Hydraulic Station Power	3 KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Application

The finished products of metal roof cover forming machine roof tile building materials machinery are widely used in various industrial plants, garages, warehouses, apartments, home construction, etc.

Advantage

ridge cap steel tiles has light weight, good waterproofness, easy and quick installation,cost effective.highly durable.

the surface will be very smooth and beautiful without any scratch on surface.and can be widely used in roofs of villas, urban flat-to-slope, and tourist attractions. it can maintain the beauty of the roof without and repairing. The arc-shaped color steel roof ridge tile is more complete on the basis of the hand-made roof ridge tile.
