Hydraulic Cutting 380v Cz Purlin Roll Forming Machine Automatic

hydraulic cutting cz purlin machine,cz purlin roll forming machine automatic,cz purlin roll forming machine 380v

cz purlin roll forming machine automatic

cz purlin roll forming machine 380v

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

Cz Purlin Roll Forming Machine Hydraulic Cutting Automatic

ماده مناسب:

استیل نواری

گستره محصول:

C 80-300mm، Z 120-300mm

مواد برش:

CR12

وزن:

سرعت کار:

8 تا 20 متر/دقیقه

ولتاژ:

380V/50Hz/3PH

قدرت حرکتی اصلی:

15 کیلووات

نیروگاه ایستگاه هیدرولیک:

7 کیلو وات

برجسته کردن:

hydraulic cutting cz purlin machine,cz purlin roll forming machine automatic,cz purlin roll forming machine 380v

cz purlin roll forming machine automatic

cz purlin roll forming machine 380v

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Cz Purlin Roll Forming Machine Hydraulic Cutting Automatic

This machine can produce both C and Z products on the same machine. It only takes 40 minutes to change between C and Z. and the product size range 80mm and 300mm

C/ Z purlin can be uesd for a roof cross beam when construct a house. C/Z interchangeable purlin machine,can produce many size of C/ Z pulin in one set machine.Also can produce multi size abouThe user can turning the spanner to finish the interchange between C purlin and Z purlin.

Specification

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm- 3 mm
3	Working Speed	8-20 m/min ( not including the cutting time)
4	Roller Station	12-16 Raws
5	Dimension (LWH)	7000 mm1000 mm1300 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	380V/50HZ/3PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of cutting	Cr12
15	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

C, Z type roll forming machine products are widely used in structural building purlins, wall beams and roofs, etc., and can also be combined into lightweight roof trusses, brackets and other building components. Due to its relatively high safety factor, the load-bearing capacity can meet most needs in movable buildings. Usually C-shaped and Z-shaped steel are used as beams, supports and tie rods. At the same time, it can also be used on the roof to support roof panels and wall panels.

Advantage

1.The finished purlin has high straight level and high crush resistance ability. 2.The finished Z purlin can be lap reversely.The connection point improve strength. 3.Use reduce motor and frequency to control, the speed length and location can be control. 4.Interchangeable progress between C and Z is fast and easy.

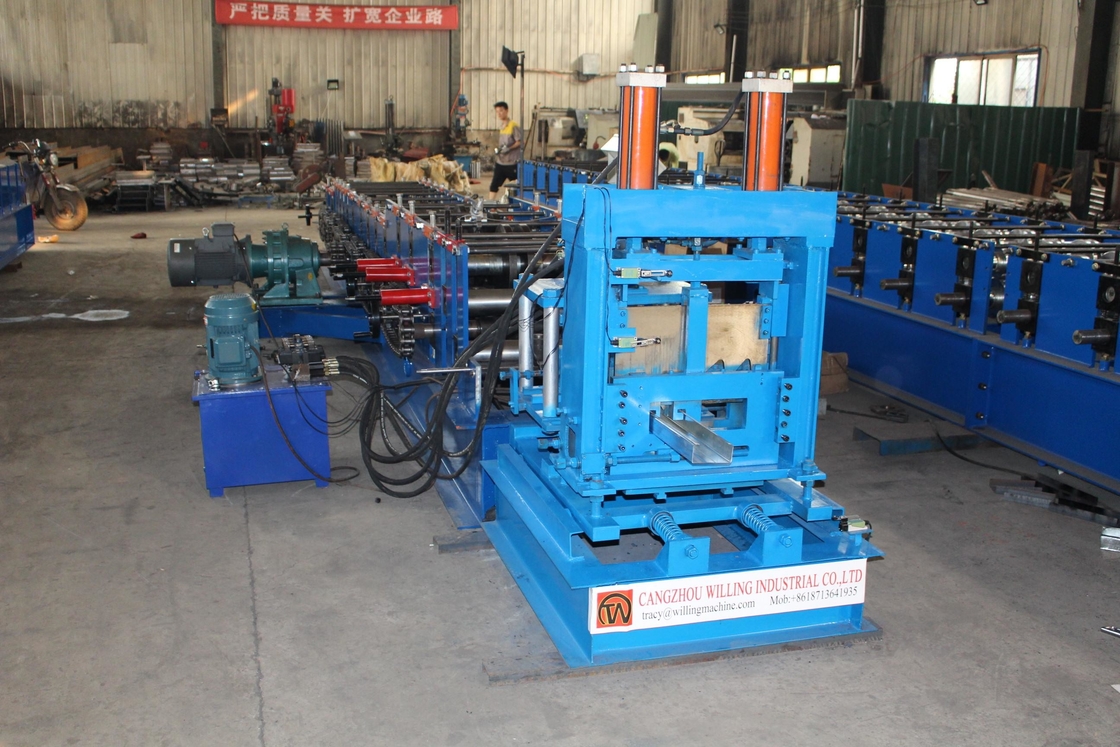

fully automatic CZ interchange purlin machine has a fully automatic electrical control system and error alarm device, which can effectively ensure the safety and stability of the production line. Hydraulic Cutting 380v Cz Purlin Roll Forming Machine Automatic 0

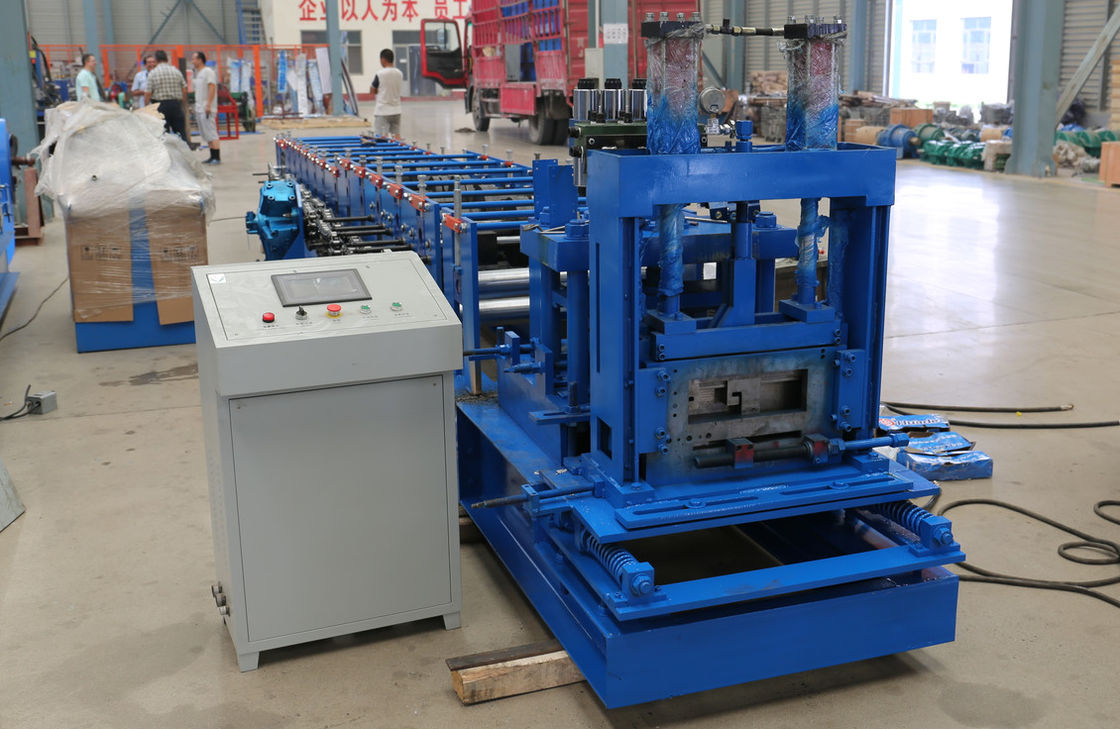

Hydraulic Cutting 380v Cz Purlin Roll Forming Machine Automatic 1
