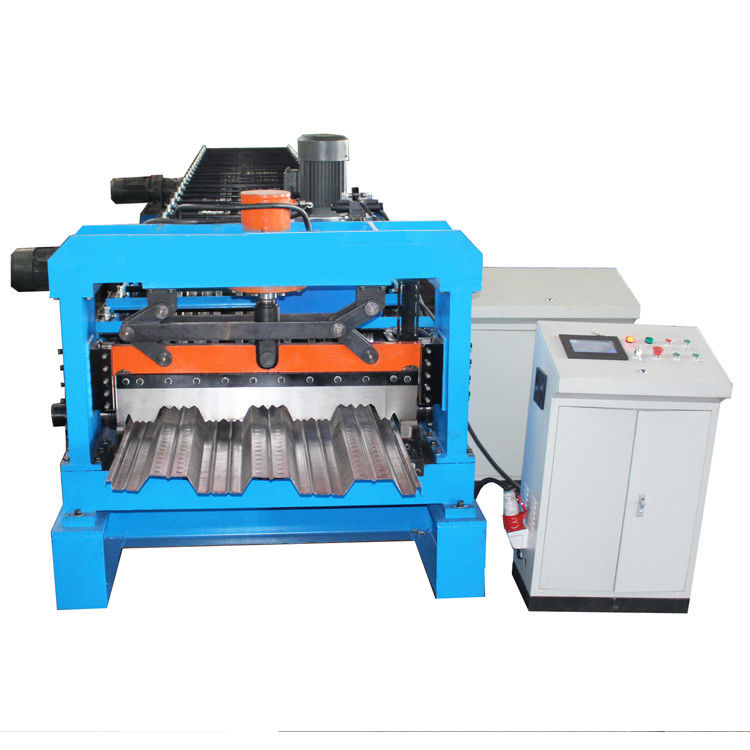

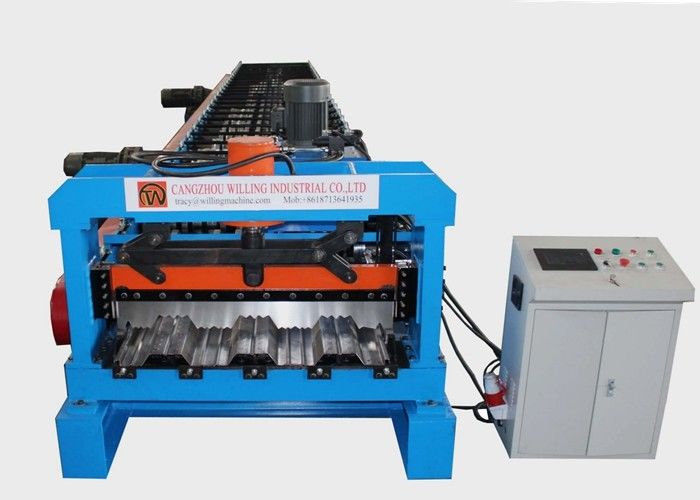

Metal Steel 1.5mm Floor Deck Roll Forming Machine Plc For Building Materials

1.5mm floor deck roll forming machine,floor deck roll forming machine plc,1.5mm deck floor roll forming machine

floor deck roll forming machine plc

1.5mm deck floor roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

Metal Steel 1.5mm Floor Deck Roll Forming Machine Plc For Building Materials

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول عرشه فولادی فلزی خط برای مصالح ساختمانی

ایستگاه های غلتکی:

45 #فولاد با روکش کروم سخت

ابعاد (L*W*H):

7500*1700*1600 میلی متر طبق درخواست مشتری

گارانتی:

1 سال

قدرت (W):

4 کیلو وات

سیستم کنترل:

PLC

فشار ایستگاه هیدرولیک:

12.0 مگاپاسکال

قدرت موتور:

15 کیلووات * 2

برجسته کردن:

1.5mm floor deck roll forming machine,floor deck roll forming machine plc,1.5mm deck floor roll forming machine

floor deck roll forming machine plc

1.5mm deck floor roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

بهترین قیمت رو بدست بیار

ویدئو

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

بهترین قیمت رو بدست بیار

ویدئو

Decking Flooring Board 1.2mm Floor Tile Making Machine

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

Metal Embossing Floor Deck Roll Forming Machine

It is widely used in multi-story and high-rise steel structures, and is the most widely used floor method in domestic multi-story and high-rise steel structures (profiled steel plate-concrete composite structure). It adopts hot-dip galvanized steel sheet to be formed by rolling and cold bending. Its characteristics are construction, convenience and short construction period, saving steel bars, double as steel formwork, low cost and so on.

Adapting to the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short time,and can be used to lay the profiled steel plate on multiple floors, and the flow water construction of the layered concrete slab.

Specification

Material Thickness	0.8-1.5 mm
Working Speed	8-15 m/min
Roller Stations	26 stations
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Main Motor Power	15 KW*2
Electrical Hydraulic Station Power	4 KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Application

The floor deck roll forming machine can form the flat sheet into a customized shape, the material of floor deck sheet is galvanized steel. The steel floor deck is widely used in power plants, power equipment companies, automobile exhibition halls, steel structure workshops, cement warehouses, steel structure offices, airport terminals railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers, Olympic venues and gymnasium Steel structures.

Metal Steel 1.5mm Floor Deck Roll Forming Machine Plc For Building Materials 0
