3.5mm Galvalume Cz Purlin Roll Forming Machine Full Automatic Change Size Type

3.5mm cz purlin roll forming machine,galvalume cz purlin roll forming machine,full automatic purlin machine

galvalume cz purlin roll forming machine

full automatic purlin machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

CZ Shape Purlin Forming Machine تغییر اندازه تمام اتوماتیک

مواد خام:

گالوالوم، گالوانیزه

ابعاد (L*W*H):

7000 میلی متر*1300 میلی متر* 1300

ضخامت مواد:

1 میلی متر - 3.5 میلی متر

وزن:

4.5T

ظرفیت تولید:

10-25 متر در دقیقه

ولتاژ:

380V/50Hz/3PH

قدرت موتور اصلی::

15 کیلووات

برجسته کردن:

3.5mm cz purlin roll forming machine,galvalume cz purlin roll forming machine,full automatic purlin machine

galvalume cz purlin roll forming machine

full automatic purlin machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

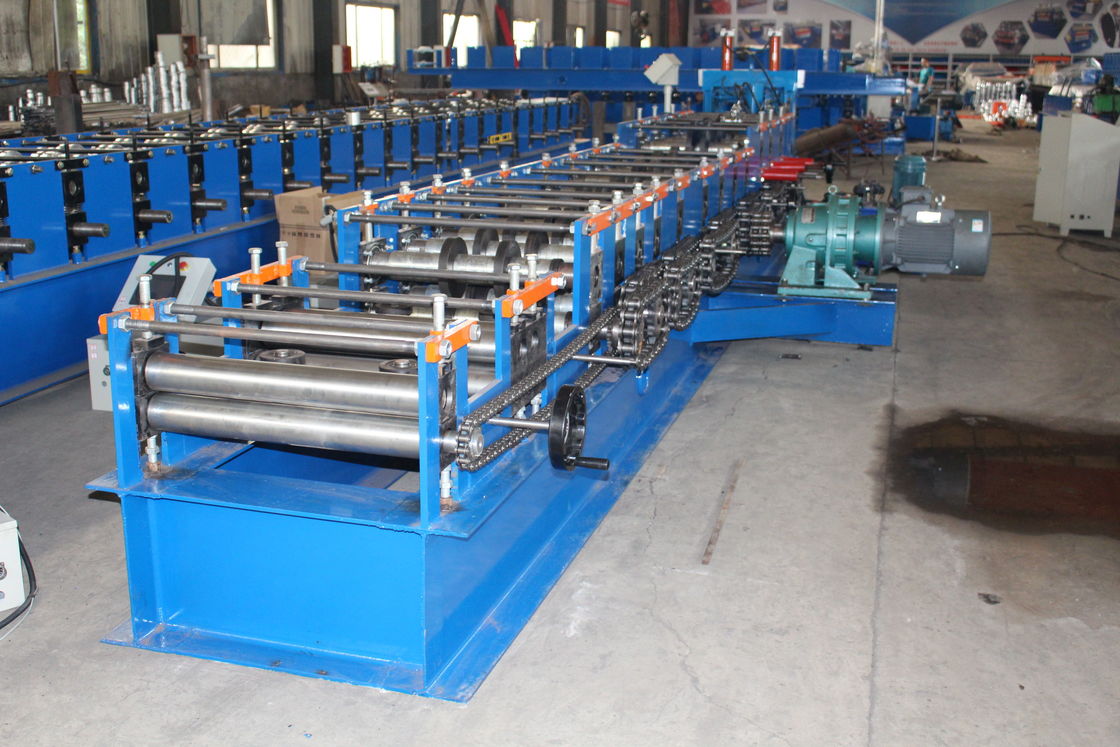

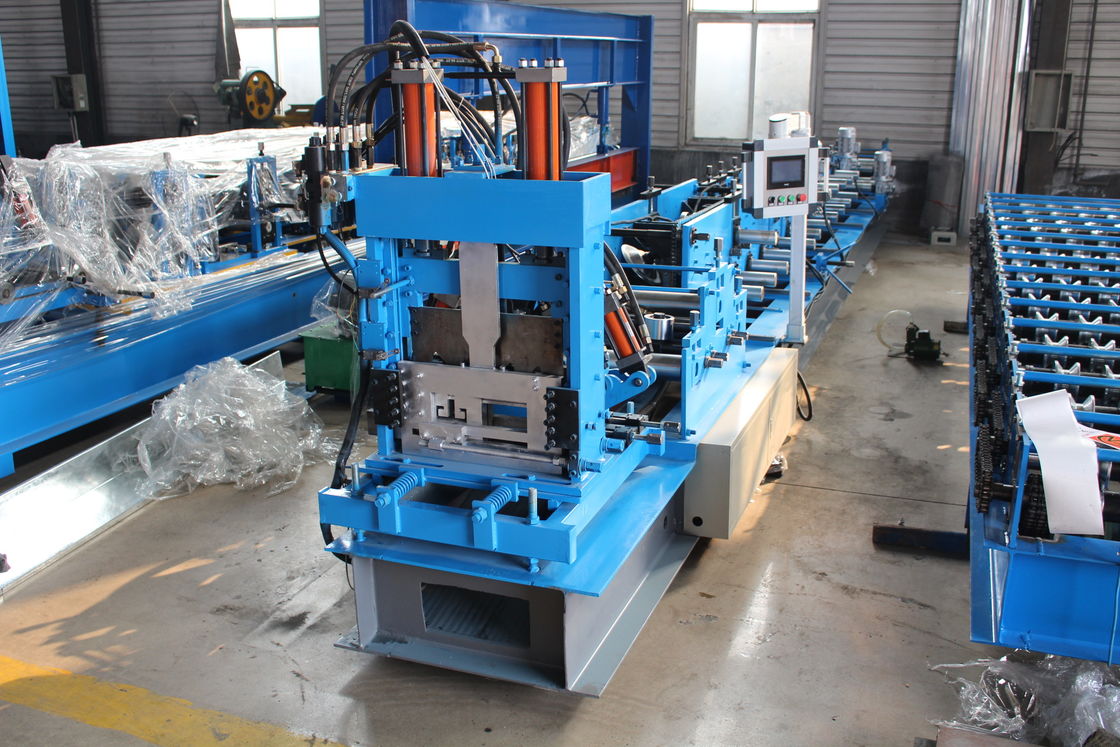

C Z Shape Purlin Forming Machine Full Automatic Change Size Type

CZ channel changeable roll forming machine CAN produce two different type of shape purlin in one machine, C type purlin has good straightness and has good compression and bending resistance. Z type purlin can be installed in reverse lap, and the installation strength of the connection point will be increased. with it high productive speed, it can help client save labor cost and save more space.

Specification

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm- 3.5 mm
3	Working Speed	15- 20 m/min ( not including the cutting time)
4	Roller Station	12-16 Raws
5	Dimension (LWH)	7000 mm1000 mm1300 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	360V/60HZ/3PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The finished product of Purlin Making Machine Non-polar Cutting Z Purlin Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family
construction, shopping malls shutter doors and etc.

Advantage

The CZ interchange purlin machine has a fully automatic electrical control system and error reporting device, which can effectively ensure the safety and stability of the production line. The equipment is driven by a geared motor, with frequency conversion speed regulation, speed regulation, and fixed-length positioning. And the conversion of the two profiles can be realized without changing the forming roller. The speed is very fast and the efficiency is very high.

3.5mm Galvalume Cz Purlin Roll Forming Machine Full Automatic Change Size Type 0
