Double Rows PLC Door Frame Roll Forming Machine Safe Reliable

plc door frame roll forming machine,3phases door frame roll forming machine,double rows door frame making machine

3phases door frame roll forming machine

double rows door frame making machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دو ردیفه قاب درب رول تشکیل دستگاه ایمن و قابل اعتماد

جنس غلتک ها::

3 کیلو وات

سرعت کار:

10 متر در دقیقه - 15 متر در دقیقه سرعت بالا

قدرت موتور:

3 کیلو وات

منبع تغذیه:

3 فاز 380 ولت 60 هرتز

گارانتی قطعات اصلی:

1 سال

سیستم کنترل الکتریکی:

DELTA PLC

فشار ایستگاه هیدرولیک:

12.0 مگاپاسکال

دقت برش:

± 2 میلی متر

روش رانندگی:

انتقال دنده و زنجیر

برجسته کردن:

plc door frame roll forming machine,3phases door frame roll forming machine,double rows door frame making machine

3phases door frame roll forming machine

double rows door frame making machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

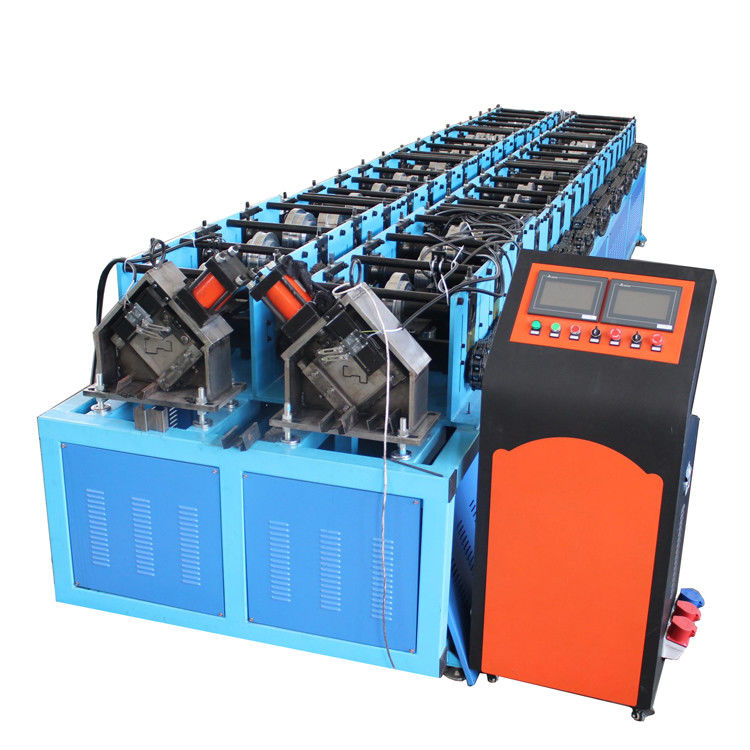

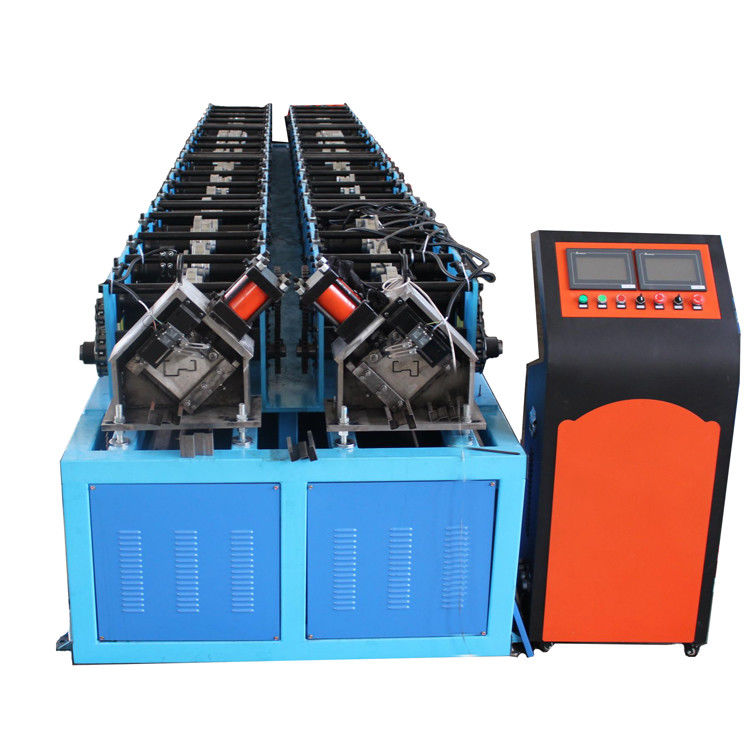

Double rows door frame roll forming machine safe and reliable

In Door Frame Roll Forming Machine, we have many types like drywall interlock type, welded type with corner v bending and others. For the door frame machine, we could make fully automatic like punching holes and bending, all could be done fully automatic.

The machine version can be customized according to customer requirements.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.3 mm - 0.8 mm
3	Working Speed	10-15 m/min
4	Roller Station	12 Stations
5	Dimension (LWH)	5500 mm800 mm1200 mm
7	Electrical Control System	PLC
8	Drive Motor Power	5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 2mm
12	Driving Mode	Gear Wheel
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The door frame forming machine is used in conjunction with the rolling shutter door strip forming machine, which is suitable for commercial exterior walls, garages, shopping malls, and other public places or residences. Especially in places with large door openings, where it is not convenient to install the door body on the ground.

Because the products produced by this machine have high hardness, are not easily deformed, are corrosion-resistant, anti-oxidation, easy to maintain, and have a long service life, they are applicable to door frames, window frames, and slide rails of various products.

Advantage

The door frame forming machine adds different geometrical ribs to the high-hardness zinc-aluminum alloy profile to greatly enhance its strength. The surface is treated with special electrophoresis, which has unlimited luster, is not easy to stick to dust, is not corroded by polluted gases, and is never rusted.

Double Rows PLC Door Frame Roll Forming Machine Safe Reliable 0
