Name: Double Out Light Gauge 1.4mm Steel Roll Forming Machine Make Drywall Profiles
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: فولاد گیج سبک
Price: 40,500.00 USD
Availability: InStock

خانه > محصولات > ماشین ساخت رول استد و ردیاب >

Double Out Light Gauge 1.4mm Steel Roll Forming Machine Make Drywall Profiles

1.4mm steel roll forming machine,ppgi profiles steel roll forming machine,1.4mm profile roll forming machine

ppgi profiles steel roll forming machine

1.4mm profile roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

فولاد گیج سبک

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول فولادی نور سنج دوبرابر پروفیل های دیوار گچی را بسازید

مواد خام:

PL، GL، PPGL، PPGI

سرعت کار:

15-20 متر در دقیقه

ضخامت مواد:

0.3 میلی متر - 1.4 میلی متر

وزن:

5 تن

تحویل:

30 روز کاری

برجسته کردن:

1.4mm steel roll forming machine,ppgi profiles steel roll forming machine,1.4mm profile roll forming machine

ppgi profiles steel roll forming machine

1.4mm profile roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

25 مجموعه در هر ماه

محصولات مرتبط

ویدئو

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

بهترین قیمت رو بدست بیار

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

بهترین قیمت رو بدست بیار

Roller Fixer Guide Column CU stud for Long-lasting Roofing

بهترین قیمت رو بدست بیار

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

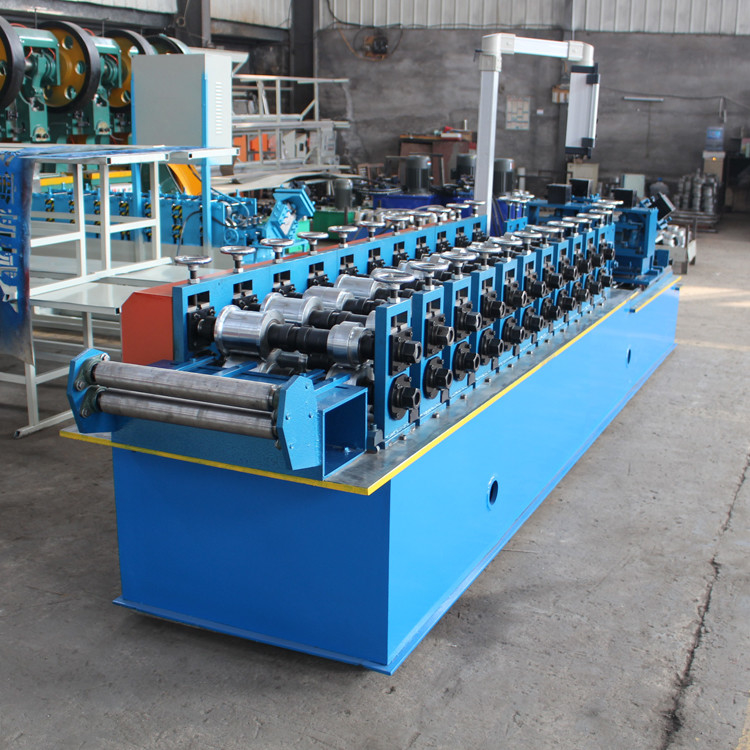

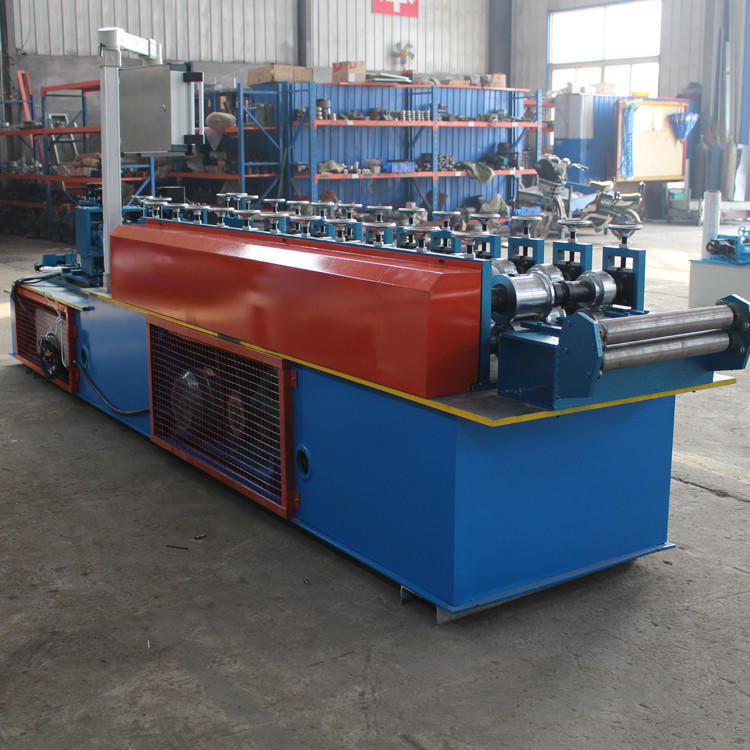

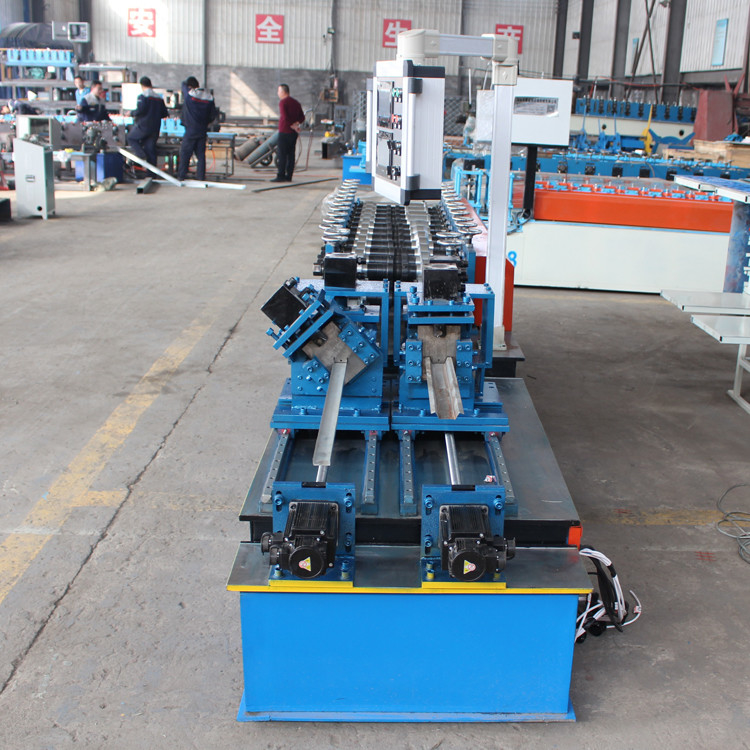

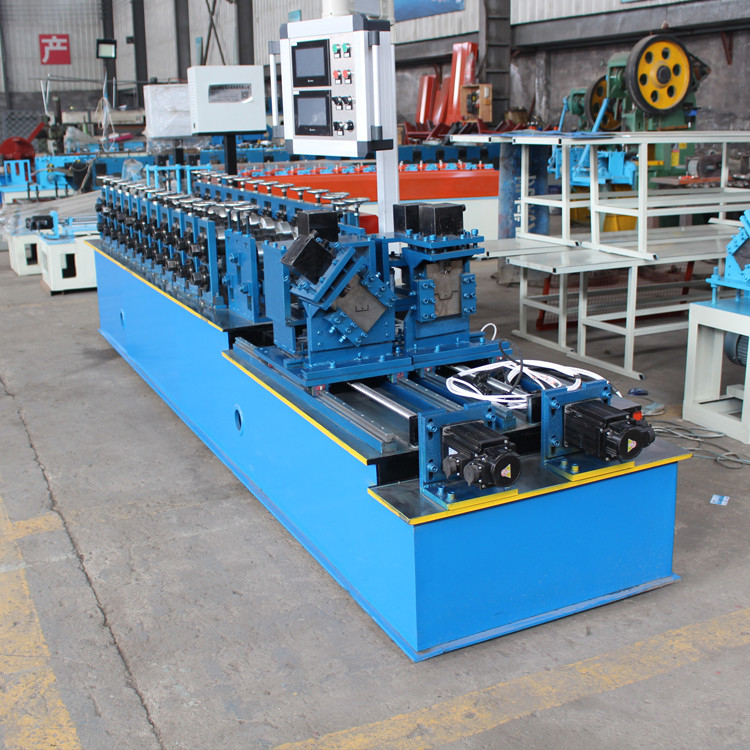

Double Out Light Gauge Steel Roll Forming Machine Make Drywall Profiles

double out light guage steel roll forming machine, which is combined with the C chanel roll forming machine and the Omega roll forming machine. It can work separately Due to it has independent control system so two lines working at the same time .

Specification

No.	Item	Description
1	Coil	PL,GL,PPGL,PPGI
2	Raw Material Thickness	0.3-1.5mm
3	Working Speed	16-20m/min
4	Roller Station	13 Raws
5	Dimension (LWH)	6000 mm1500 mm1500 mm
6	Machine Weight	5500 KG
7	Electrical Control System	PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	380V, 60HZ, 3 PHASES
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Because light steel construction has the characteristics of quick disassembly and assembly, saving time and effort, light weight, long service life, good stability, convenient transportation, multiple disassembly and assembly, beautiful appearance, strong structure, etc., it is widely used in daily life..

Advantage

Cangzhou FMS has a long history in producing Roll forming machine. Their technology experience was solidified decades ago with a flexible hydraulic punching system called the soft punch. Since then cangzhou FMS has produced several systems to accommodate the changing industry needs.We have a team of professionals with years of experience and proven track record in bringing to you something advanced and innovative that is energy efficient too.
